Slide G 32
Part. N° 28.0355
| APPLICATIONS |
| -Most commonly used when it's desirable for the slide to remain stationary while the handle & profile move. |
| TECHN. DATA / ITEMS SUPPLIED |

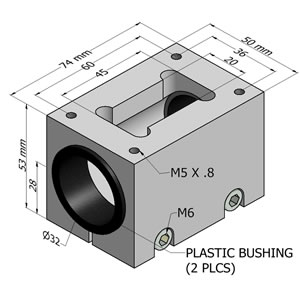

| - Anodized aluminum housing with two plastic bushings |

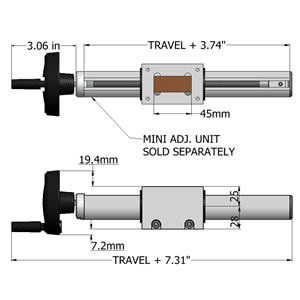

| - Slide designed to mount over 28.0353 Adj. Unit With Handle Profile 32 (Sold Separately) |
| - Plastic hand crank Ø80mm with fold away handle |
| -Weight |
- .314 kg (.69 lbs) |
| ASSEMBLY |
| - Slide needs to be installed while assembling the linear system part # 28.0353 |
| - Tighten M6 Screws to remove play |
