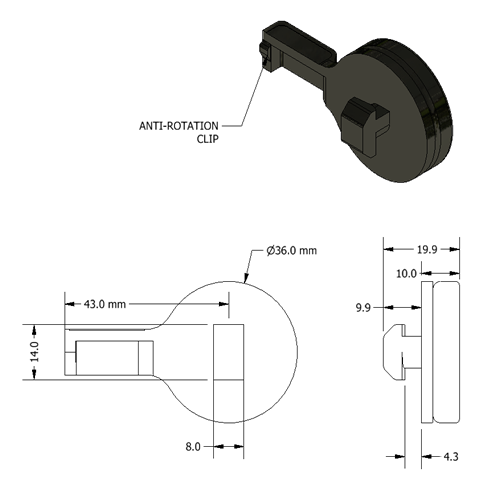

Snap In Foot/Bumper
Part. N° 22.9310
CAD DOWNLOAD ► 3D STEP | | Inventor 2024
| APPLICATIONS | |
|---|---|
| - Protective floor mounting pads | |
| - Protect a wall by installing on the back of a shelf | |
| - Bumper protection | |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - Black Polyamide plastic | |
| -Foot pad snaps directly & securely into t-slot in seconds without tools | |
| - Weight | -.014 kg |

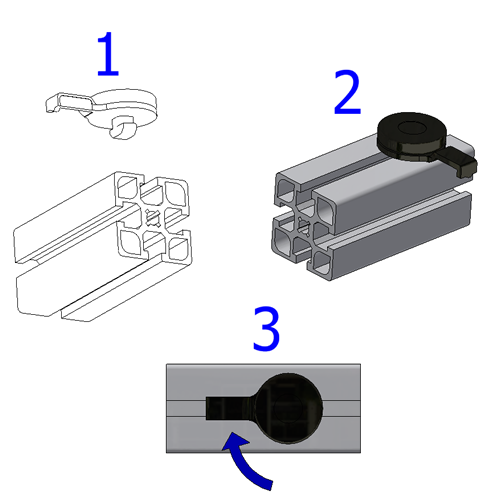

| ASSEMBLY |
|---|
| - Push in thru slide of t-slot (Does not need to be slid in from end) |
| - Rotate 90 degrees clockwise |
| - Anti-rotation arm locks into t-slot automatically securing into place |
