Fixing Kit For Chain (Conterweight Side)
Part N° 21.1711
CAD DOWNLOAD ► 3D STEP | Solidworks 2008 | Inventor 2009
| APPLICATIONS |
|---|
- Click here for a complete design example |
| - Use for connecting chain to counterweight 45 & counterweight 90 |

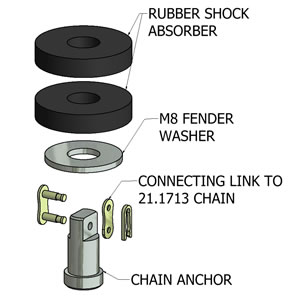

| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - Chain anchor, steel, zinc plated | |
| - Chain connecting link | |
| - M8 round washer, Ø20mm | |
| - Qty 2 rubber washers | |
| - Weight | - .015 kg |
| ASSEMBLY |
|---|
| - Lead chain through counterweight, rubber washers & last the M8 round washer |
| - Connect chain and anchor with connecting link |
| - For use with Chain 21.1713 |
