Roller Element S
Part. N° 21.1781
CAD DOWNLOAD ► 3D STEP | Solidworks 2008 | Inventor 2009
| APPLICATIONS |
|---|

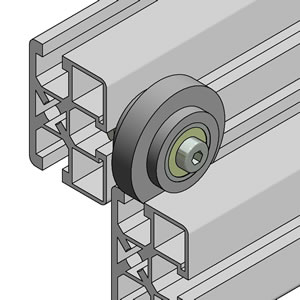

| - Guide for horizontal & vertical doors |
| - Drawer and rolling carriage guides |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|

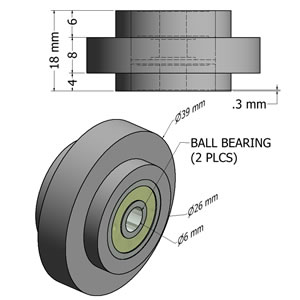

| - Roller ABS plastic, gray | |
| - Qty 2 ball bearings 626 ZZ (installed) | |
| - Load max. | - 20 kg |
| - Weight | - .044 kg |

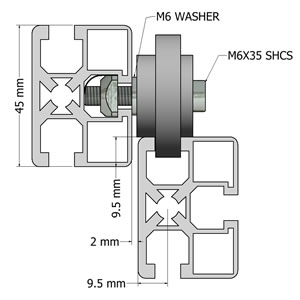

| ASSEMBLY |
|---|
| - Fasten to door with M6 hardware |
| - Fasten to T-slots with M6x35 screw Part # 21.1245 & M6 Square Nut Part # 21.1330 |
