Roller Element
Part. N° 21.1782
CAD DOWNLOAD ► 3D STEP | Solidworks 2008 | Inventor 2009
APPLICATIONS |
---|

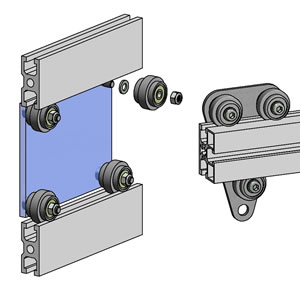

- Guide for horizontal & vertical doors |
- Drawer and rolling carriage guides |

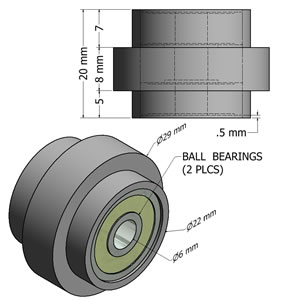

TECHN. DATA / ITEMS SUPPLIED | |
---|---|
- Roller ABS plastic, gray | |
- Qty 2 ball bearings 626 ZZ (installed) | |
- Load max. | - 20 kg |
- Weight | - .033 kg |
ASSEMBLY |
---|
- Fasten to door with M6 hardware |

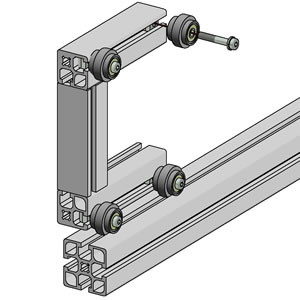

- Fasten to T-slots with M6x35 screw Part # 21.1245 & M6 Square Nut Part # 21.1330 |
