Guide For Sliding Door
Part. N° 22.1079
| APPLICATIONS |
| - Double sliding doors in a single profile T-slot |
| - Sliding drawers |
| - Subsequent mounting of sliding doors into existing constructions possible |
| TECHN. DATA / ITEMS SUPPLIED |

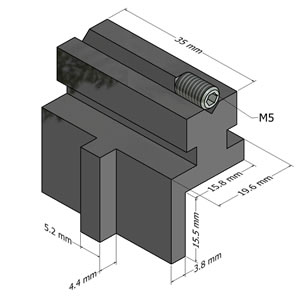

| - Plastic PA 6.6, black |
| - Qty 1 locking set screw |
| - Weight |
- .029 kg |
| ASSEMBLY |
| - Use set screw in plastic v-groove to lock element into t-slot |

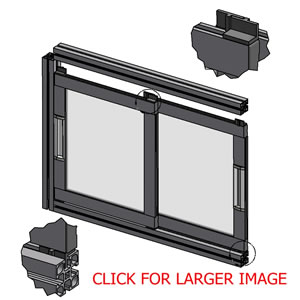

| - 1) Fix both guides into t-slot at the top of door |
| - 2) Slide guides into t-slots at bottom of door frame |
| - 3) Slide door into top t-slot of frame |
| - 4) Slide lower guides into door profile T-slot and secure |
| - Door height = frame opening -11mm |
- Width for double doors
= (Clear width of frame opening +55mm)/2 |
