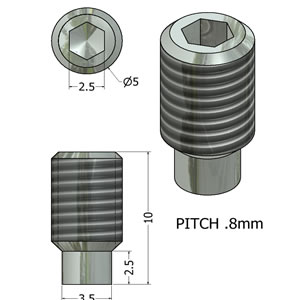

M5x10 Set Screw
Dog Point
Part. N° 21.1336
CAD DOWNLOAD ► 3D STEP | | Inventor 2012
| APPLICATIONS | |
|---|---|
| - Closest inch screw | 10-32 |
| - Ø5mm = | .197 inches |
| - Length 16 mm = | .63 inches |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - Steel, zinc plated | |
| - Din | 915 |
| - Diameter | 5 mm |
| - Length | 10 mm |
| - Thread pitch | .8 mm |
| - Hex drive | 2.5 mm |
| - End type | Dog Point |

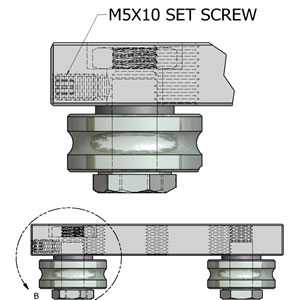

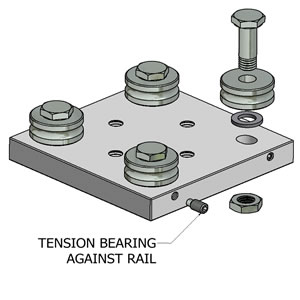

| ASSEMBLY |
|---|
| - |
| - |
| - |
