End Cap LR (Left)
Part. N° 28.0004/3
| APPLICATIONS |
| - Covers ends of linear guides LR 12 |
| - Fixes Cover Profile LR |
| - Panel frames |
| - Shelves |
| TECHN. DATA / ITEMS SUPPLIED |

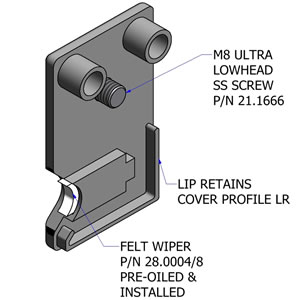

| - Gray ABS plastic cap with spring loaded, greased felt wiper |
| - M8x10 Extra Low Head SS Screw |
| - Weight |
- .030 kg |

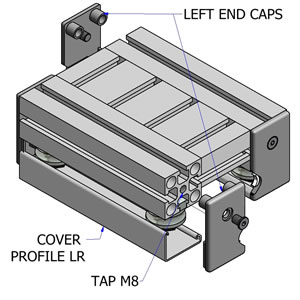

| ASSEMBLY |
| - Form tap both ends of 45x45 profile M8 |
| - If necessary insert spring & lubricated felt wiper |
| - Fasten one end cap in place |
| - Insert Cover Profile LR tighten other cap |
| - Typical slide has two left & two right end caps |
| - Replacement felt wipers Part # 28.0004/8 |
