Slide LW 32 E
Part. N° 28.0089
CAD DOWNLOAD ► 3D STEP | Solidworks 2008 | Inventor 2009
| APPLICATIONS |
|---|

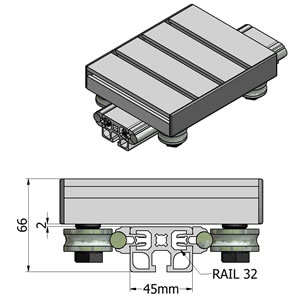

| - Linear guide for use with rails 19 & rail 32 |
| - Economical ball bearing slideSW |
| - Linear guide for a broad range of custom constructions |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|

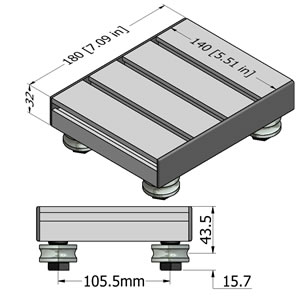

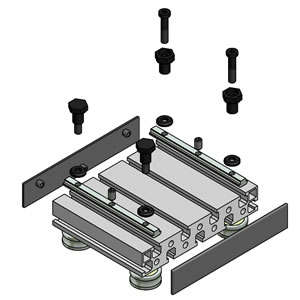

| - Slide Made from profile 32x180 completely assembled | |
| - Qty 4 Ball Bearings LR12 | |
| - Qty 2 Concentric Bushings | |
| - Qty 2 Eccentric Bushings | |
| - End caps | |
| - Click here for load ratings for Slide LW 32E | |
- See load ratings for all LR series slides |
|
| - Weight | - 1.92 kg |
| ASSEMBLY |
|---|
| - Slide on rail end and adjust eccentric bushings to adjust bearing clearance |
