Timing Belt Pulley T90 Stainless With 19mm Bore & Keyway
Part. N° 28.0045/5
| APPLICATIONS |
| - Timing belt reverse unit for LR12 & LR16 90mm wide rails & slides |
| - Linear motion in wet or corrosive environments |
| - Non magnetic applications |
| - Re bore & key 8mm pilot to inch or metric size up to Ø30mm |
| - Heavy duty linear motion |
| - Use adaptor plate for mounting NEMA 23, NEMA 34 & NEMA 42 motors & gearboxes |
| TECHN. DATA / ITEMS SUPPLIED |
| - Aluminum housing, clear anodized |

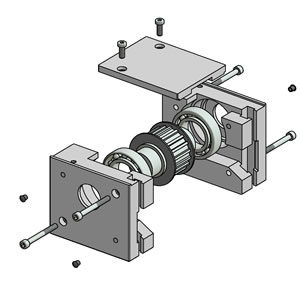

| - 32AT10 aluminum pulley, 19 teeth, with stainless flanges (see picture) |
| - Qty 2, Stainless steel Ball Bearings |
| - Stainless steel fastening hardware |
| - Bore Dia. |
- 19 mm |
| - Keyway Width: |
- 6 mm |
| - Travel (1 Rev) |
- 190 mm |
| - Frictional moment at 1/1000 belt tensioning |
- .35 Nm |
| - Max load |
- 130 Nm |
| - Weight |
- 2.73 Kg. |
