End Cap Handle Profile 32 Z Gray
Part. N° 22.1162/1
CAD DOWNLOAD ► 3D STEP | | Inventor 2012
| APPLICATIONS |
|---|
| - End cover for Handle Profile 32, Part # 20.1088 |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - ABS plastic, gray, non-aging, oil resistant | |
| - Thickness 3mm | |
| - Weight | - .005 kg |
| ASSEMBLY |
|---|
| - No processing required |

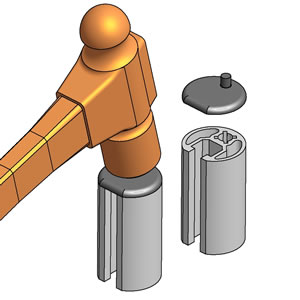

| - Simply press in by hand then tap with small hammer or plastic mallet |
