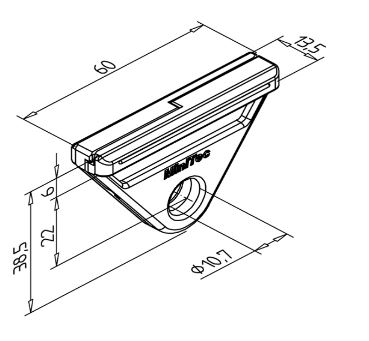

Tool Hanger H
Part. N° 22.1213
CAD DOWNLOAD ► 3D STEP | | Inventor 2012
| APPLICATIONS |
|---|
| - Sliding support for tools |
| - For use with 45 & 30 series profiles |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - ABS plastic, gray | |
| - For use with all MiniTec profiles | |
| - Load Max | - 600 N (134 lb) |
| - Weight | - .01 kg |

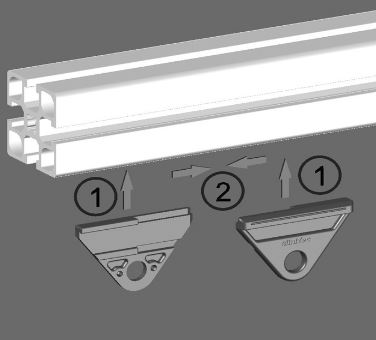

| ASSEMBLY |
|---|
| - Slide into t-slot from the end |
| -1) Insert each half into slot if profile end is closed |
| -2) Slide two halves together |
| - Attach tools with Snap Hook, Part # 21.1699 |
