Monitor Carrier With Hinged Bracket
Part. N°32.0620
| APPLICATIONS |

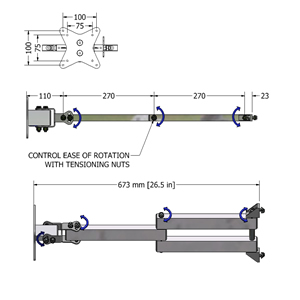

| - 4 axis articulation allows for positioning monitor virtually anywhere |
| - Swivel head allows for +/- 30° in horizontal & vertical axes. |
| TECHN. DATA / ITEMS SUPPLIED |
| - 4 axis aluminum articulating monitor arm |
| - Mounts monitors with 75mm & 100mm VESA hole patterns |
| - Ships assembled |
| - Comes with hardware & ready to mount to a vertical 45 series profile |
| - Screws to mount to monitor usually come with monitor. M4x12 SHCS, Part # 21.1229 can be ordered if needed. |
| - Weight |
- 1.6 kg |
| - Max Load |
- 120 N (27 lbs) |
| ASSEMBLY |
| - No processing required. Simply bolt to vertical 45 series t-slot with supplied hardware. |
| - Screws to mount to monitor usually come with monitor. M4x12 SHCS, Part # 21.1229 can be ordered if needed. |
