White Aluminum Composite Panel 6mm(1/4")
Part. N° 21.9500/6
CAD DOWNLOAD ► | |
| APPLICATIONS |
|---|
| - General use. Economical, durable & rigid. |
| - Clean room wall panels |
| - Trade show displays |
| - Rigid panel. Ideal for tall unframed doors in guide profile |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|

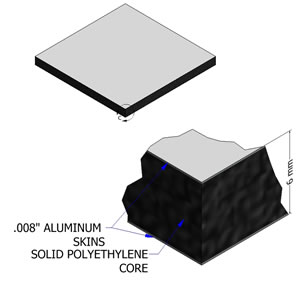

| - 6mm thick painted white aluminum composite panels | |
| - Outer panels are .008" aluminum painted matte white | |

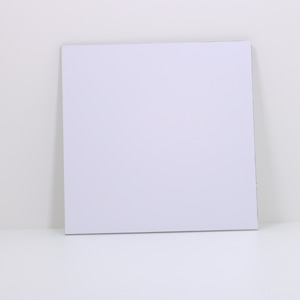

| - Click here for larger picture | |
| - Core is solid polyethylene & black in color | |
| - Polyester based paint, matte white on both sides | |
| - Total Thickness 6mm (.236") +/- 1/32" | |
| - Cut to size & machining services available | |
| - For cut charge use Part # 25.1098 | |
| - Max. Size | 4' x 10' |
| - Weight | 1.39 lbs/sqft |
| - Strength L/180 (.04" Aluminum =1) |
3.8 |
| - Wind Load 4'x8' panel supported on all 4 sides | 75 MPH |
| - Fire Rating | ASTM E84: Class A flame spread rating |
| ASSEMBLY |
|---|

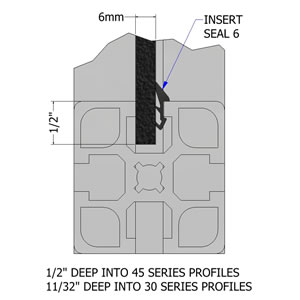

| - Frame in t-slots on all four sides & take up gap using Insert Seal 6 |
| - Screw to frame to make a removable panel using Screw Block 32 |
| - Bolt directly to t-slots (see picture) |
