3/4" Aluminum Plate 6061
Part. N° 21.9530
CAD DOWNLOAD ► | |
| APPLICATIONS |
|---|

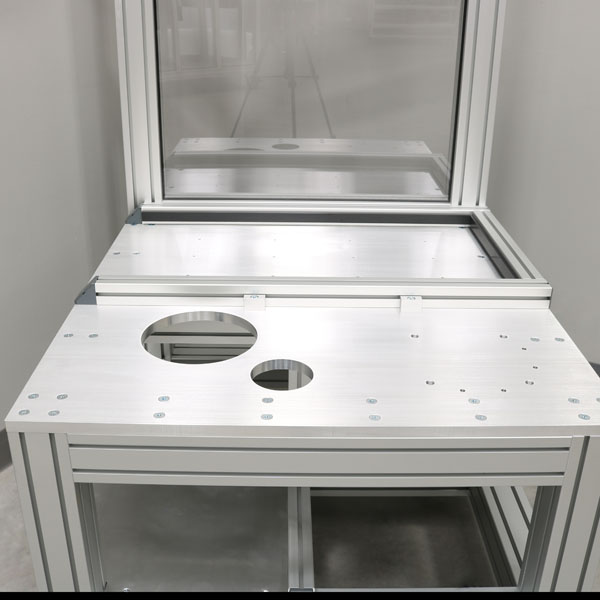

| - Table tops & heavy duty machine bases |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - 6061 Aluminum | |
| - Thickness +/.037", -0 | |
| - Flatness .1" | |
| - Order cut to size +/- 1/16" | |
| - For cut charge use Part # 25.1098 | |
| - CNC machining available (e-mail prints to sales@minitecframing.com) |
|
-Click here for spec sheet  |
|
| - Max. Size | - 5' x 12' |
| - Weight | - 10.79 lbs/sqft |
| ASSEMBLY |
|---|
| - Bolt to t-slots & profile ends |
| -Often bolted from underside using Angle 45 GD |
