Slide In T-Slot Bar 45
Part. N° 21.1029/9
CAD DOWNLOAD ► 3D STEP | | Inventor 2020
| APPLICATIONS | |
|---|---|
| - End to end butt joint of profiles | |
| - Profile extension | |
| -Particularly usefull for trade shows to quickly join sub-assemblies together | |
| -Bull nose guides profiles easily together even when multiple t-slots bars are used at once. |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - 90mm long steel T shaped bar, zinc plated | |
| - 2 set screws M8x14, Part # 21.1303 | |
| - Ships fully assembled | |
| - Weight | - .06 kg |

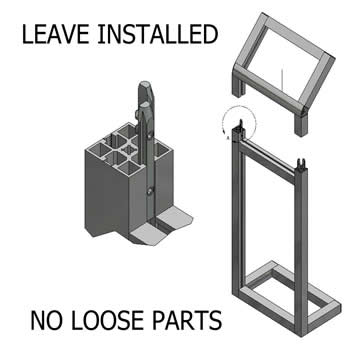

Click here for full size animation
| ASSEMBLY |
|---|
| - No machining required |
| - Leave inserted in one of the assemblies. No loose parts are used. |
| - Tighten set screws to drive bar to t-slot top |
