M8x20 Socket Head Cap Screw As Profile Fastener
Part. N° 21.1202
CAD DOWNLOAD ► 3D STEP | Solidworks 2008 | Inventor 2009
| APPLICATIONS |
|---|
| Connecting profiles at right angles |
| - Particularly use full when Power-Lock will interfere with a panel |
| - Use full in high volume applications to reduce fastener cost |
| - This fastener does not protect against profile rotation. |

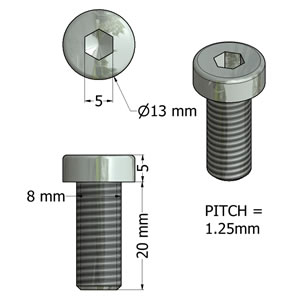

| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - M8x20 Socket Head Cap Screw, Zinc Plated | |
| - DIN | - 7984 |
| - Class | -8.8 |
| -Dia. | -8mm |
| - Length | -20mm |
| - Pitch | -1.25mm |
| -Hex Drive | -5mm |
Click here for full size animation
| ASSEMBLY |
|---|
| - Thread profile M8x1.25, 25mm Deep |
| - Drill Ø7 mm hole thru so 5mm hex key can access screw head. |
| - Hole can be covered with 7mm cap, part # 22.1200/1 |
