Angle 45 GD-Z With Position Fixing Nuts
Part. N° 21.1349/7

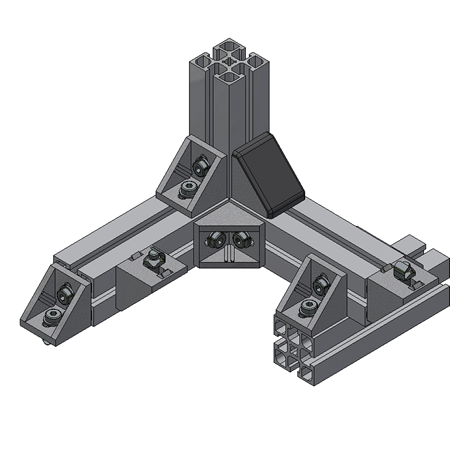

CAD DOWNLOAD ► 3D STEP | | Inventor 2022
| APPLICATIONS |
|---|

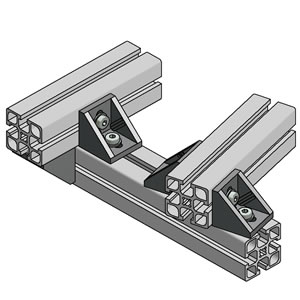

| - Particularly useful for subsequent mounting to existing structures |
| - Click here to see how to use angle to mount to table tops |
| - Can be used over a Power-Lock to stiffen joint |
Click her for a larger animation showing how to break off tabs
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - Cast aluminum angle, powder coated gray (RAL # 7012) | |
| - 2 M8x22 socket head caps screws | |
| - 2 M8 square nuts with position fixing | |
| - 2 M8 round washers | |

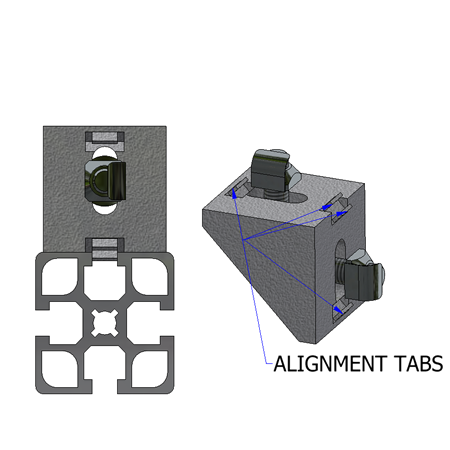

| - Removable bottom tabs align profiles and protect against torsion | |
| - Order with standard nuts using Part # 21.1349 | |
| - Cover cap sold separately, Part # 22.1024/1 | |
| - Weight | - .083 kg |
Click here for angle installation video

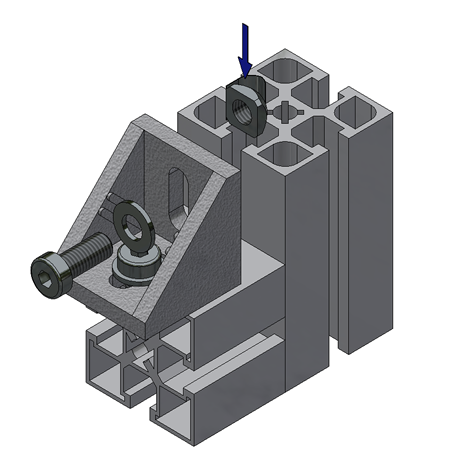

| ASSEMBLY |
|---|
| - Click here to see how to remove alignment tabs |
| - Recommended locking torque 20 Nm |
