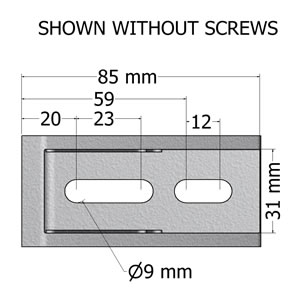

Angle 45x90 GD-Z
Part. N° 21.1397
CAD DOWNLOAD ► 3D STEP | Solidworks 2008 | Inventor 2009
| APPLICATIONS |
|---|

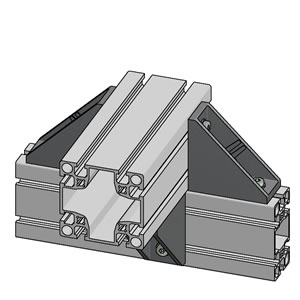

| - Particlulary useful for subsequent attachment of profiles to existing frames |
| - Can be used over a Power-Lock to stiffen joint |
| - Fixing of panel elements & table tops |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - Qty 1 Cast Aluminum Angle Material GD-AL Si9 Cu3 , Powder Coated Gray (RAL # 7012) | |
| - Qty 4 M8x22 SHCS | |
| - Qty 4 M8 Round Washers | |
| - Qty 4 M8 Square Nuts | |
| - Order with position fixing nuts using Part # 21.1397/7 | |
| - End Cap 22.0998/1 Sold Separately | |
| - Weight | - .281 kg |
| ASSEMBLY |
|---|
| - Place washer between screw and angle |
| - Recommended locking torque 20 Nm |
