M8x25 Self Tapping Screw
Part. N° 21.1492
CAD DOWNLOAD ► 3D STEP | | Inventor 2020
| APPLICATIONS | |
|---|---|
| - Fasten parts 10mm-15mm (7/16in -9/16in) to t-slots | |
| - Closest inch screw | 5/16-18 |
| - Ø8mm = | .315 inches |
| - Length 25mm = | .984 inches |

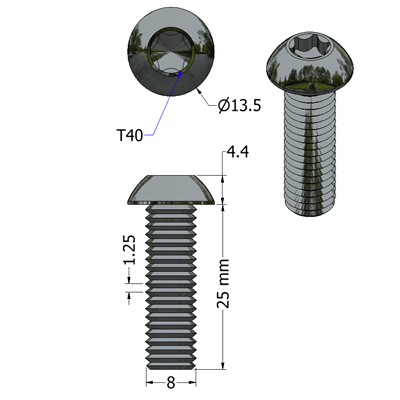

| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - Steel, zinc plated, tri lobe self tapping screw | |
| - Diameter | 8 mm |
| - Length | 25 mm |
| - Thread pitch | 1.25 mm |
| - Torx Drive | T-40 |
| - DIN | |
| ASSEMBLY |
|---|

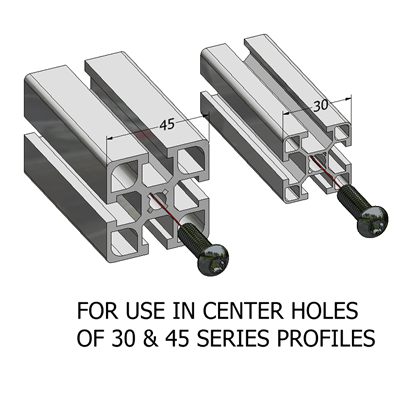

| - For use in 7.4mm center holes of 45 & 30 series profiles |

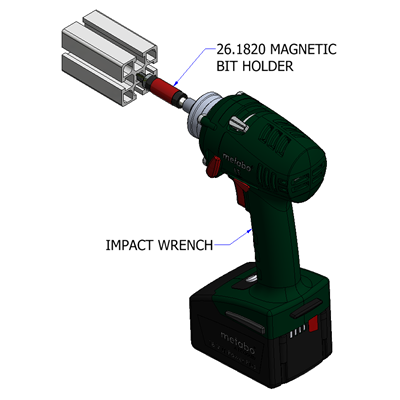

| - Drive directly in with a T40 torx driver & impact wrench |
