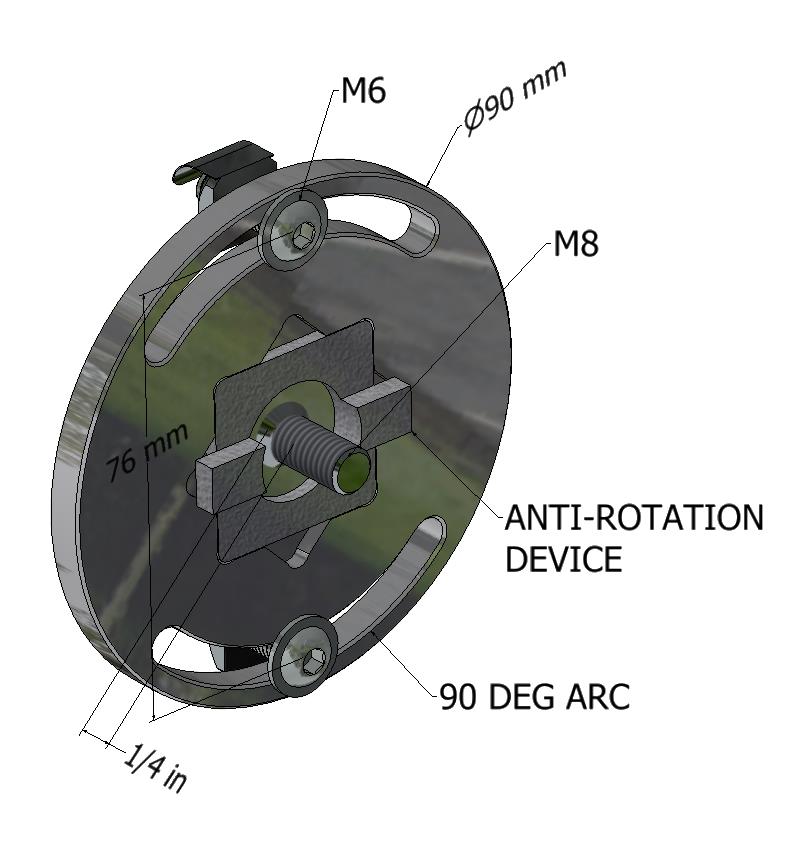

Pivot Fastener 45
Part. N° 21.9370
| APPLICATIONS |
| - For Mounting Profiles At Angles |
| - Profiles can be mounted end to side or side to side |
| - 90 Degree mounting slots allow for +/- 45 degrees of travel or 90 degrees of rotation depending on how the anti rotation device is inserted. |
| TECHN. DATA / ITEMS SUPPLIED |
| - 1/4" Aluminum Plate Anodized |
| - Qty 1 Aluminum Anti Rotation Device |
| - Qty 1 M8x20 C'Sunk Screw |
| - Qty 2 M6x20 Button Head Flange Screws |
| - Qty 2 M6 Square Nuts With Position Fixing |
| - Sold Separately M8 Square Nut For Use When Mounting To A T-Slot |
| - Weight |
- .12 kg |
| ASSEMBLY |
| - Insert anti rotation device into slot in aluminum plate. |
| - Mount to end or side of profile supplied M8x20 C'sunk |
| -Insert M6 square nuts in opposing profile |
| - Insert supplied M6 screws thru slot in plate & into square nuts |
| - Rotate profile to desired angle & tighten both M6 screws |
