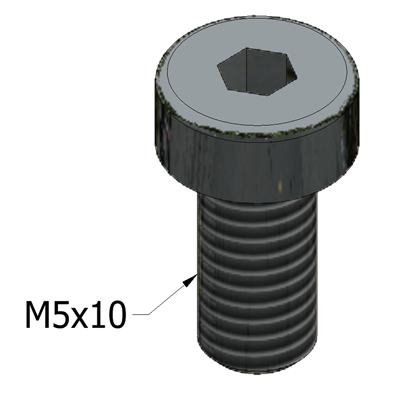

M5x10 Socket Head Cap Screw
Part. N° 21.1279
CAD DOWNLOAD ► 3D STEP | | Inventor 2020
| APPLICATIONS | |
|---|---|

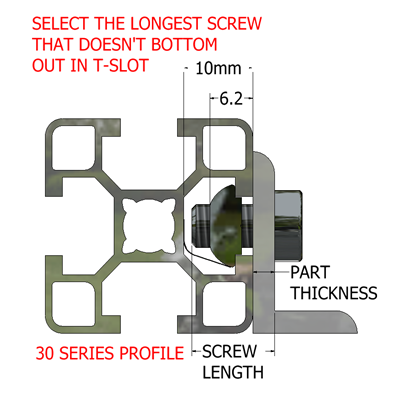

| - For attaching items under 1/8" to 30 series t-slots | |
| - Closest inch screw | 10-32 |
| - Ø5mm = | .197 inches |
| - Length 10mm = | .394 inches |

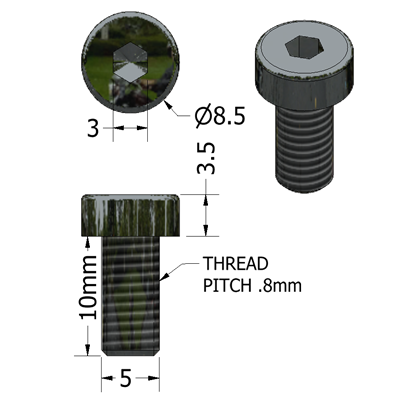

| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - Steel, zinc plated | |
| - Diameter | 5 mm |
| - Length | 10 mm |
| - Thread pitch | .8 mm |
| - Hex drive | 3 mm |
| - DIN | 7984 |
| ASSEMBLY |
|---|
| - To short for use in 45 series t-slots |
| - Drill & tap a hole M5 x .8 |
| - Tighten screw using 3mm hex key |
