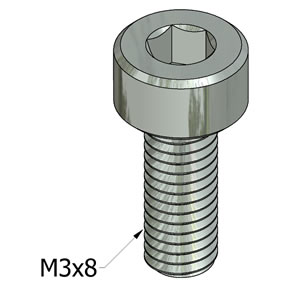

M3x8 Socket Head Cap Screw
Part. N° 21.2154
CAD DOWNLOAD ► 3D STEP | | Inventor 2012
| APPLICATIONS | |
|---|---|
| - To short for general use with t-slots on 30 or 45 series. Use for mounting to adaptor plates, etc. | |
| - Closest inch screw | Between 4-40 & 5-40 |
| - Ø3mm = | .118 inches |
| - Length 8mm = | .315 inches |

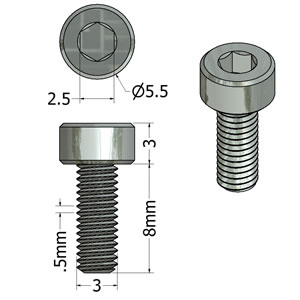

| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - Steel, zinc plated | |
| - DIN 912 | |
| - Diameter | 3 mm |
| - Length | 8 mm |
| - Thread pitch | .5 mm |
| - Hex drive | 2.5 mm |
| - DIN | 912 |
| ASSEMBLY |
|---|
| - |
| - |
| - |
