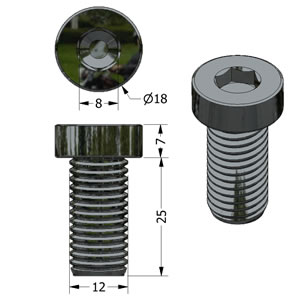

M12x25 Socket Head Cap Screw
Part. N° 21.9625
CAD DOWNLOAD ► 3D STEP | | Inventor 2018
| APPLICATIONS | |
|---|---|
| - Closest inch screw | 1/2-13 |
| - Ø12mm = | .472 inches |
| - Length 25mm = | .984 inches |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - Steel, Low Head, SHCS, Zinc Plated | |
| - Diameter | 12 mm |
| - Length | 25 mm |
| - Thread pitch | 1.75 mm |
| - Hex drive | 8 mm |
| - DIN | 7984 |
| - Grade | 8.8 |

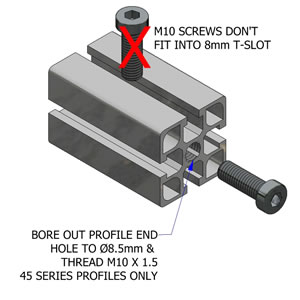

| ASSEMBLY |
|---|
| - Drill & tap existing hole in 45 series profiles to accept M10 screws |
| - Too large to mount into t-slots |
| - Too large for end hole of 30 series profiles |
