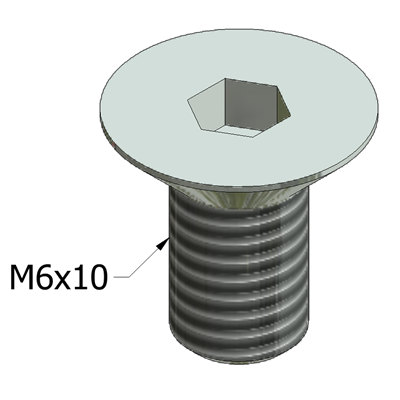

M6x10 Countersunk Screw
Part. N° 21.2219
CAD DOWNLOAD ► 3D STEP | | Inventor 2020
| APPLICATIONS | |
|---|---|
| - Closest inch screw | 1/4-20 |
| - Ø6mm = | .236 inches |
| - Length 10mm = | .394 inches |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - Steel, zinc plated | |
| - Diameter | 6 mm |
| - Length | 2 mm |
| - Thread pitch | 1.0 mm |
| - Hex drive | 4 mm |
| - DIN | 7991 |
| - Class | 8.8 |
| ASSEMBLY |
|---|
| - Use an M5x10 for connecting material under 1/8" to t-slots of 30 series profiles. A M6 will bottom out on the t-slot. |
