M8 Hex Lock Nut
Part. N° 21.1526/2
CAD DOWNLOAD ► 3D STEP | | Inventor 2012
| APPLICATIONS | |
|---|---|
| - Zinc plating provides corrosion resistance to steel in wet environments | |
| - Closest inch size | 5/16-18 |
| - Ø8mm = | .315 inches |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|

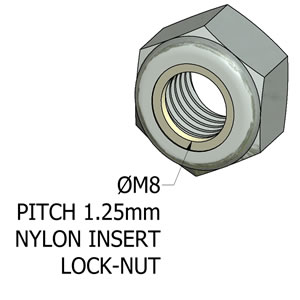

| - Steel, zinc plated Nut With Nylon Insert | |
| - Thread | M8 x 1.25 |
| - Class | 5 |
| - ISO | 10511 |
| - DIN | 985 |
| -RoHS | Compliant |
| ASSEMBLY |
|---|

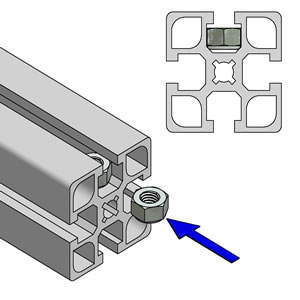

| - -This nut can be slid in from the end of a 45 series profile |
| - Too thick for use in 30 series t-Slots |
