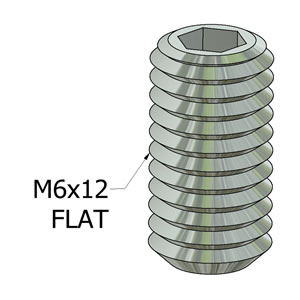

M6x12 Set Screw
Flat Point
Part. N° 21.1380
CAD DOWNLOAD ► 3D STEP | Solidworks 2013 | Inventor 2012
| APPLICATIONS | |
|---|---|
| - Closest inch screw | 1/4-20 |
| - Ø6mm = | .236 inches |
| - Length 12 mm = | .472 inches |

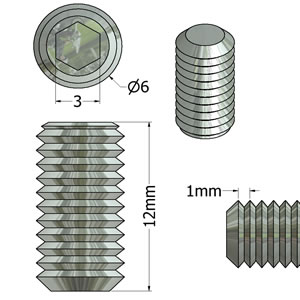

| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - Steel, zinc plated | |
| - Din | 913 |
| - Diameter | 6 mm |
| - Length | 12 mm |
| - Thread pitch | 1 mm |
| - Hex drive | 3 mm |
| - End type | Flat Point |
| ASSEMBLY |
|---|
| - |
| - |
| - |
