Power-Lock Screw M8x25 Button Head
Part. N° 21.1189
| APPLICATIONS |
| - Fasten parts 10mm-15mm (7/16in -9/16in) to t-slots |
| - Closest inch screw |
5/16-18 |
| - Ø8mm = |
.315 inches |
| - Length 25mm = |
.984 inches |

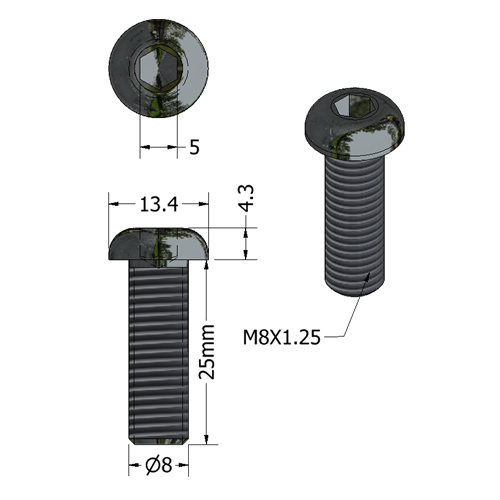

| TECHN. DATA / ITEMS SUPPLIED |
| - Steel, zinc plated |
| - Diameter |
8 mm |
| - Length |
25 mm |
| - Thread pitch |
1.25 mm |
| - Hex drive |
5 mm |
| - DIN |
N/A |
| ASSEMBLY |

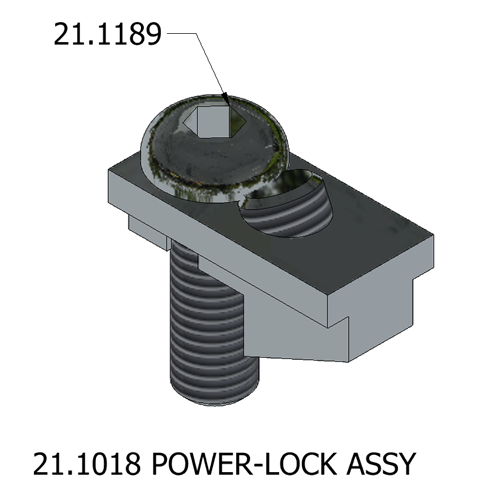

| - Special button head screw made for use with our Power-Lock Fastener, Part # 21.1018 |

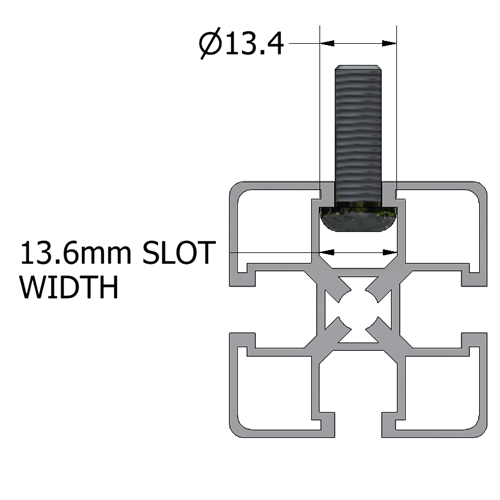

| - Head diameter is slightly smaller than a standard button head so it will fit in our t-slot |
| - Head height of 4.3mm is less than the standard M8 low head of 5mm. This gives the Power-Lock more clearance in the t-slot so the screw doesn't need to be tightened so precisely. |
