Ø20mm Bore With Hex Key Access
Part. N° 25.1097/9
CAD DOWNLOAD ► | |
| APPLICATIONS |
|---|
| - Bore for Bolt Fastener 20, Part # 21.1021 |
| - Bore for 1/2 of Butt Fastener, Part # 21.1020 (Note 2 bores are required. One in each profile) |
| -Most commonly used for subsequent fastening of profiles where end access to opposing profile is not available |
| - Bore possible on top & bottom sides of profile for additional moment protection |
| - Used on profiles 45mm and wider. For smaller profiles use the Bolt Fastener 15, Part # 21.1024 |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|

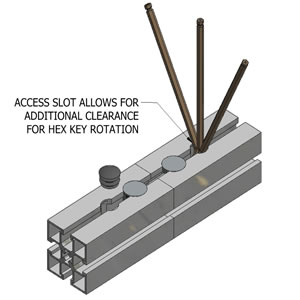

| - Ø20mm bore on t-slot center, 16mm deep with additional Ø15mm bore allowing rotation of 5mm hex key | |
| - One side & one end of profile |
| ASSEMBLY |
|---|

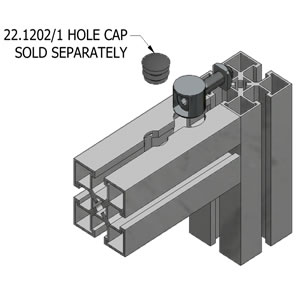

| - Insert bolt fastener into bore while sliding nut into t-slot |
| - Where end access to profile is not available, press nut into t-slot first, then join with bolt fastener |
| - Pre-tighten M8 screw using 5mm hex key with ball end, part # 26.1084 |
| - Perform final tightening with "L" hex key, part # 26.1085 |
