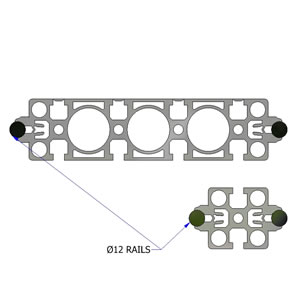

Cut To Length Linear Rail LR12
Part. N° 25.9005
CAD DOWNLOAD ► | |
| APPLICATIONS |
|---|
| - |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|

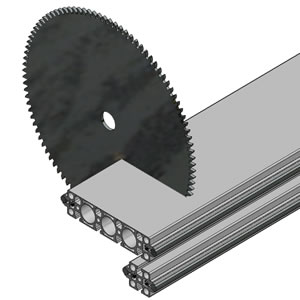

| - Cut to length LR12 linear rails | |
| - Specify length up to 3 decimal places | |
| - One cut charge per piece | |
| - All profiles can be cut accurately up to their stock length | |

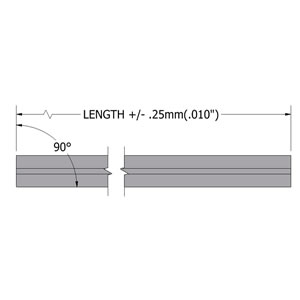

| - Length Tolerance | +/- .25mm(.010") up to 10 feet |
| -Length tolerance 10' - 20' | +/- 1/16" |
| - Squareness tolerance (See Picture) |
.001"/inch of cut +/- .057° |
| How To Order | |
|---|---|
| - Once cut charge per rail assy | |
| - Specify rail part #, quantity & length | |
| - For cuts other than 90 degrees send prints or detailed description of operation | |
| - Machining services available. E-mail or fax prints |
