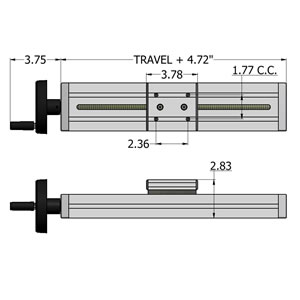

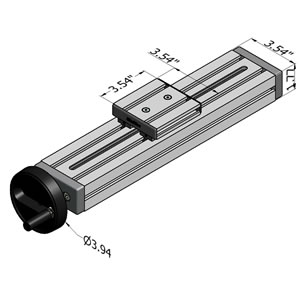

Adjusting Unit VEN 45×90 S

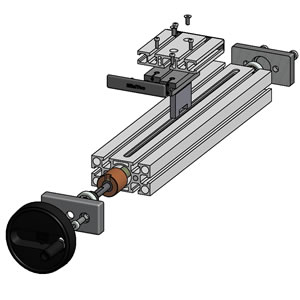

– Fully assembled lead screw driven linear positioner
– Standard travel 12″ (305mm)
other travel lengths available on request
– Acme 16×4 screw & bronze nut
– Two UHMW Polyethylene Plastic Bearings
– Plastic hand crank (fold down handle is optional)
– Max Load – 450 N (101 lbf)
– Max Travel – 72.25″
– Basic Weight – 2.28 kg (5.0 lbs)
– Weight/100mm(3.94″) stroke – .5 kg (1.1 lbs)
