Screw Block 23

PART No 22.1255
$4.95 each
PART No: 22.1255$4.95 each
  • For mounting panels to profiles 30 series profiles

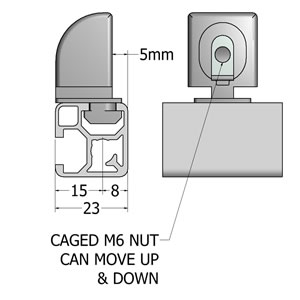

  • Use to mount 1/2″ thick panels virtually flush on 30×30. Click here for picture.
  • Caged nut allows adjustment for hole alignment
PART No: 22.1255 Category:

Technical Data / Items Supplied

  • ABS Plastic, Gray

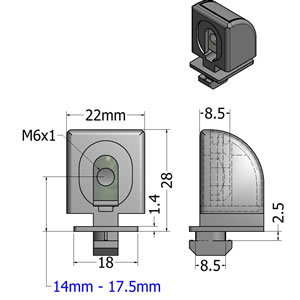

  • Qty 1 M6x1 caged steel square nut (installed)
  • M6 screw for fastening panel sold separately
  • Weight – .011 kg

Applications

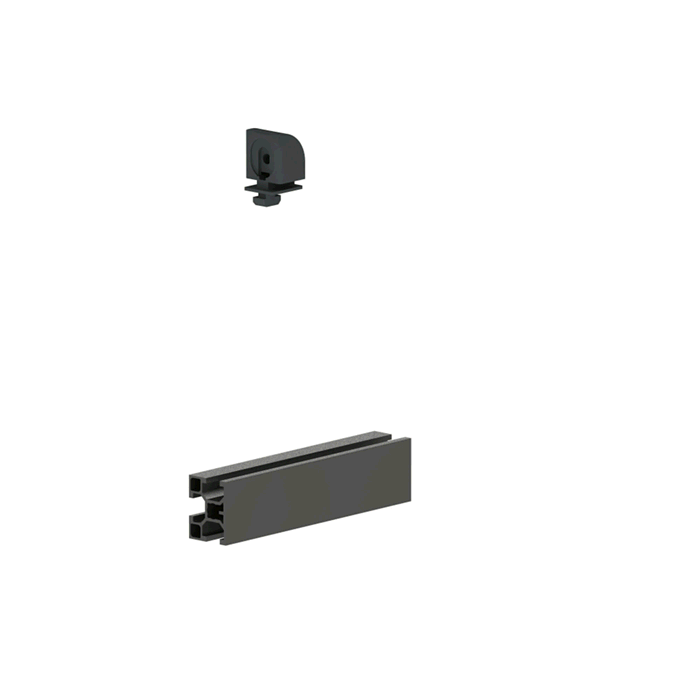

Assembly Info

22.1255_Screw_Block_23_MP
22.1255_Screw_Block_23_L
22.1255_Screw_Block_23_M
22.1255_Screw_Block_23_700

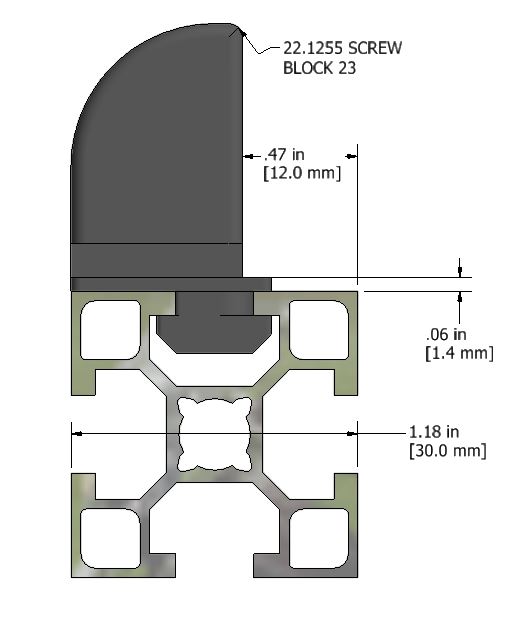

22.1255 Screw Block 23 With 30x30

Downloads

3D Step
Inventor
