Slide LW 32

PART No 28.0088
PART No: 28.0088 each
  • Linear guide for use with rails 19 & rail 32
  • Linear guide for a broad range of custom constructions
PART No: 28.0088 Category:

Technical Data / Items Supplied

  • Slide Made from profile 45×32 F completely assembled
  • Qty 4 Ball Bearings LR12

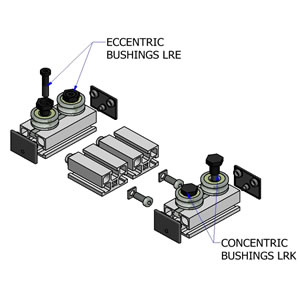

  • Qty 2 Concentric Bushings
  • Qty 2 Eccentric Bushings
  • End caps
  • See load ratings for Slide LW 32
  • See load ratings for all LR series slides
  • Weight – 1.06 kg

Applications

Assembly Info

  • Slide on rail end and adjust eccentric bushings to adjust bearing clearance
  • Angle 20
  • Bolt-fastener 15
  • Screw Connection
28.0088_Slide_LW_32_MP

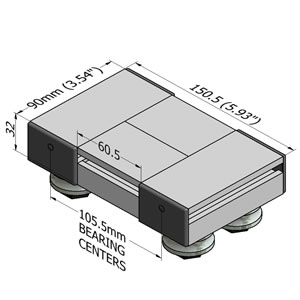

28.0088_Slide_LW_32_L

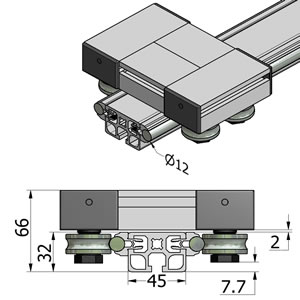

28.0088_Slide_LW_32_M
28.0088_Slide_LW_32_R

Downloads

3D Step
Solidworks
Inventor
