Rail 90

Part. N° 28.0008

CAD DOWNLOAD ►  3D STEP | Solidworks 2008 | Inventor 2009

APPLICATIONS
- Linear guide for slides made using Ball Bearing LR 12 like the Slide LW 90
- Rails can be joined for longer travels
TECHN. DATA / ITEMS SUPPLIED

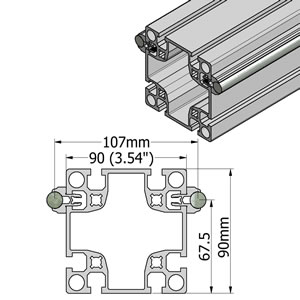

- Aluminum Profile 90x90 L
- Shaft Supporting Profiles on both sides
- Shaft 12 on both sides
- End cap 22.1069/1 sold separately
- Can be ordered cut to size +/- .01"
- For cut charge use Part # 25.9005
- Stainless Version 28.0008/3
- Full Length - 6 m
- Weight - 10.02 kg/m
ASSEMBLY
- Rail ships assembled
- For vertical or high speed applications use Shaft Retention Device, Part # 28.0052
- See load capacity data sheet for LR linear system
