Rail 45 X 135 H
Part. N° 28.0012/2
CAD DOWNLOAD ► 3D STEP | Solidworks 2008 | Inventor 2009
| APPLICATIONS |
|---|

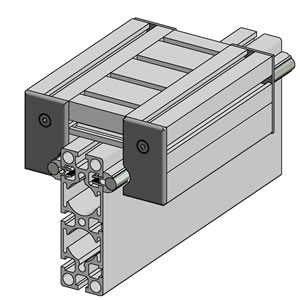

| - Linear guide for slides made using Ball Bearing LR 12 like the Slide LW 45 |
| - Rails can be joined for longer travels |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|

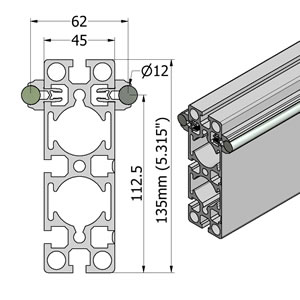

| - Aluminum Profile 45x135 G | |

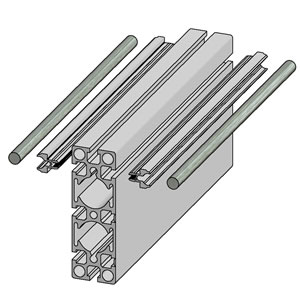

| - Shaft Supporting Profiles on both sides | |
| - Shaft 12 on both sides | |
| - End cap 22.1049/1 sold separately | |
| - Can be ordered cut to size +/- .01" | |
| - For cut charge use Part # 25.9005 | |
| - Stainless Version 28.0012/4 | |
| - Full Length | - 6 m |
| - Weight | - 8.09 kg/m |
| ASSEMBLY |
|---|
| - Rail ships assembled |
| - For vertical or high speed applications use Shaft Retention Device, Part # 28.0052 |
| - See load capacity data sheet for LR linear system |
