Chain Pulley 45 I
Part N° 21.1840
CAD DOWNLOAD ► 3D STEP | Solidworks 2008 | Inventor 2009
| APPLICATIONS |
|---|

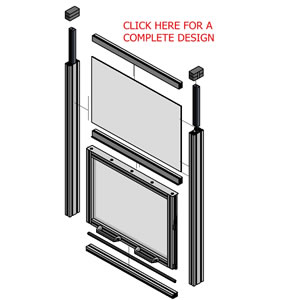

| - Click here for a complete design example of a counter weighted door using the chain pulley 45 I |
| - Chain reverse for counterweighted doors made from 45x90 UL, 45x90F or 45x90G |
| - Chain runs down one t-slot of 90mm side. No additional hand protection required |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - Qty 2 cast aluminum blocks, powder coated gray | |
| - Gray plastic 45x90 end cap | |
| - Chain Sprocket, & support pin, steel zinc plated | |
| - M8x65 socket head cap screw for connecting to 45x90 profile | |
| - 10mm plastic slot cover | |
| - Load Max (Both sides of sprocket) |
- 50 kg |

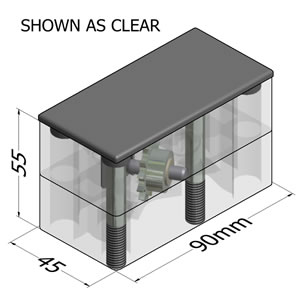

| - Weight | - .347 kg |
| ASSEMBLY | |
|---|---|

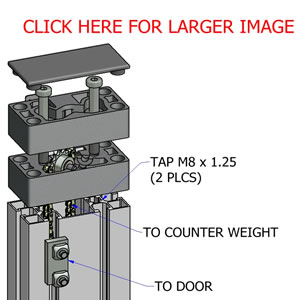

| - Form tap end of 45x90F post M8x1.25, 25mm deep (2 plcs) | |
| - Position sprocket in correct groove for right or left hand post | |
| - Tighten supplied M8x65 cap screws into end of 45x90 profile | |
| - Use with Door Chain Clamping device Part # 21.1712 or 21.1712/9 | |
| - Use counter weight 45 in 45x90F or 45x90G post | |
| -Fix counterweight 45 with Fixing Kit For Chain Counterweight Side Part # 21.1711 |
