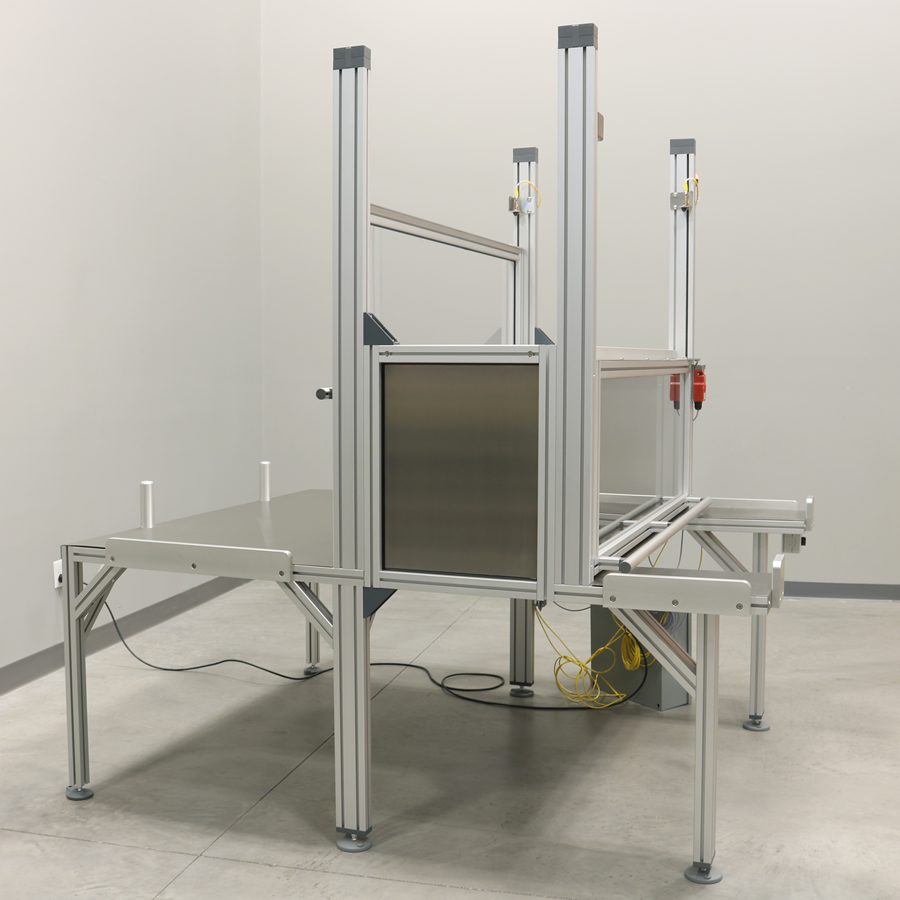

Wide Clean Room Pass Thru With Interlocked Doors

These clean room pass thru’s can be made in any custom width or depth. In feed and out feed tables can be made to best fit your product & clean room.
Click here for 3D file
Click here to request a quote or more details

Application Details

  • Completely customizable for your application!
  • 5 foot wide pass thru with manually opened counterweighted doors

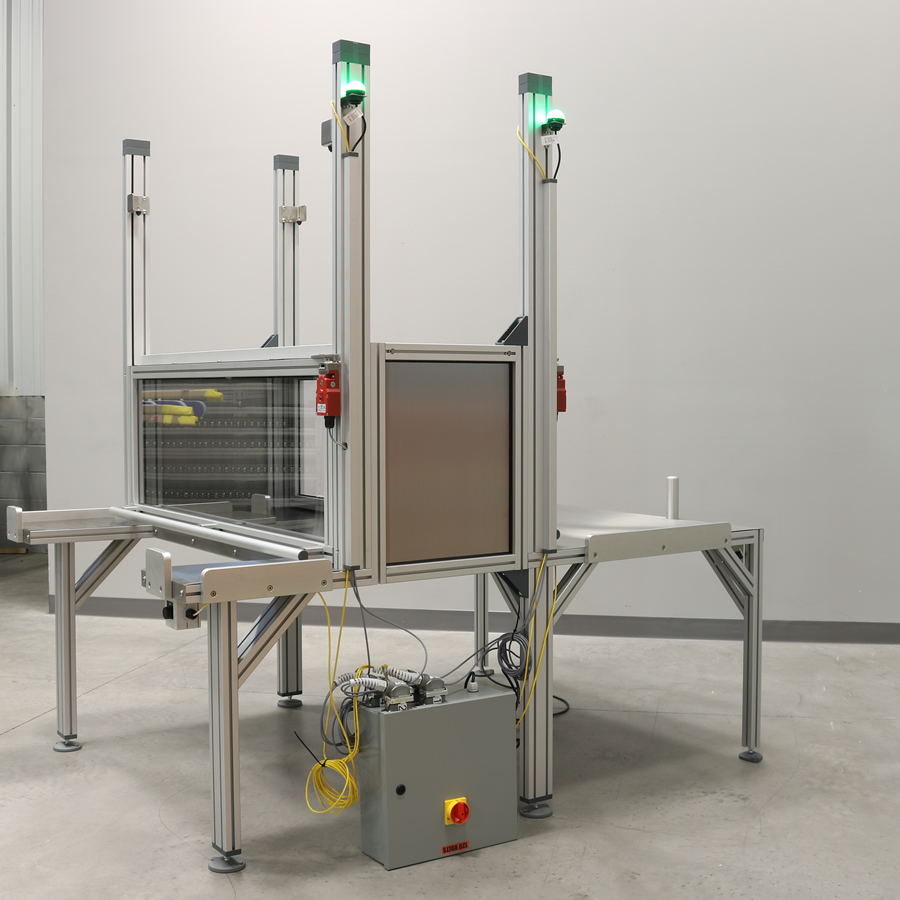

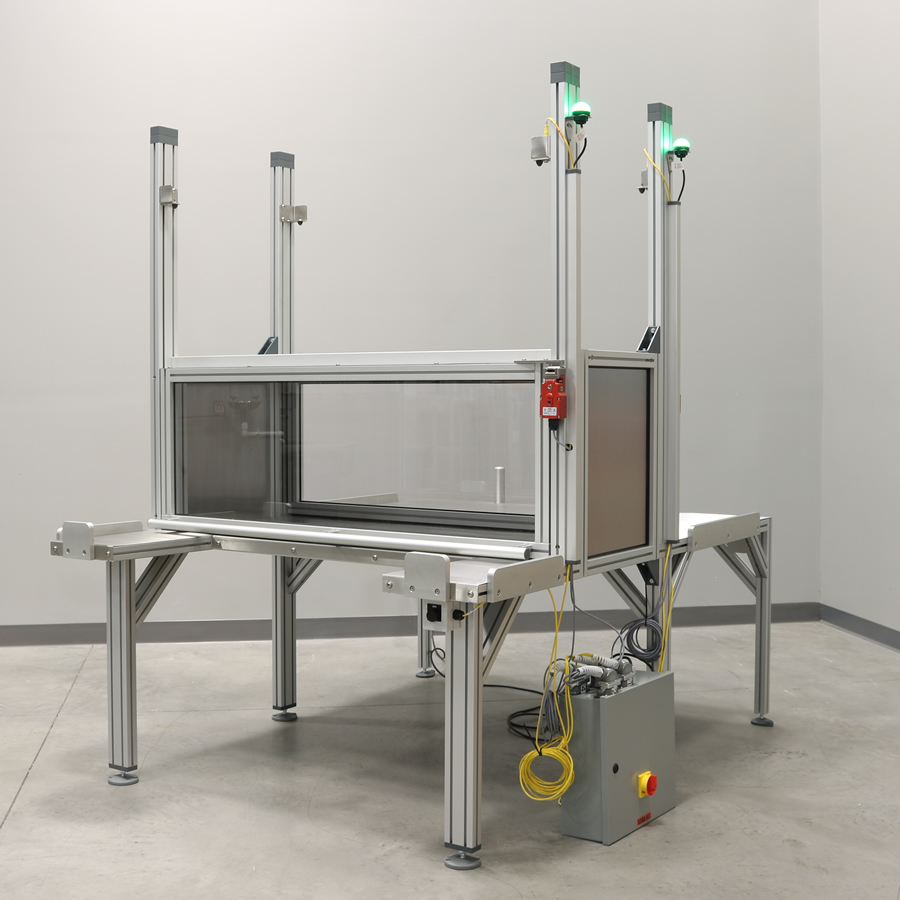

  • Green lights on both sides of the wall indicate both doors are closed

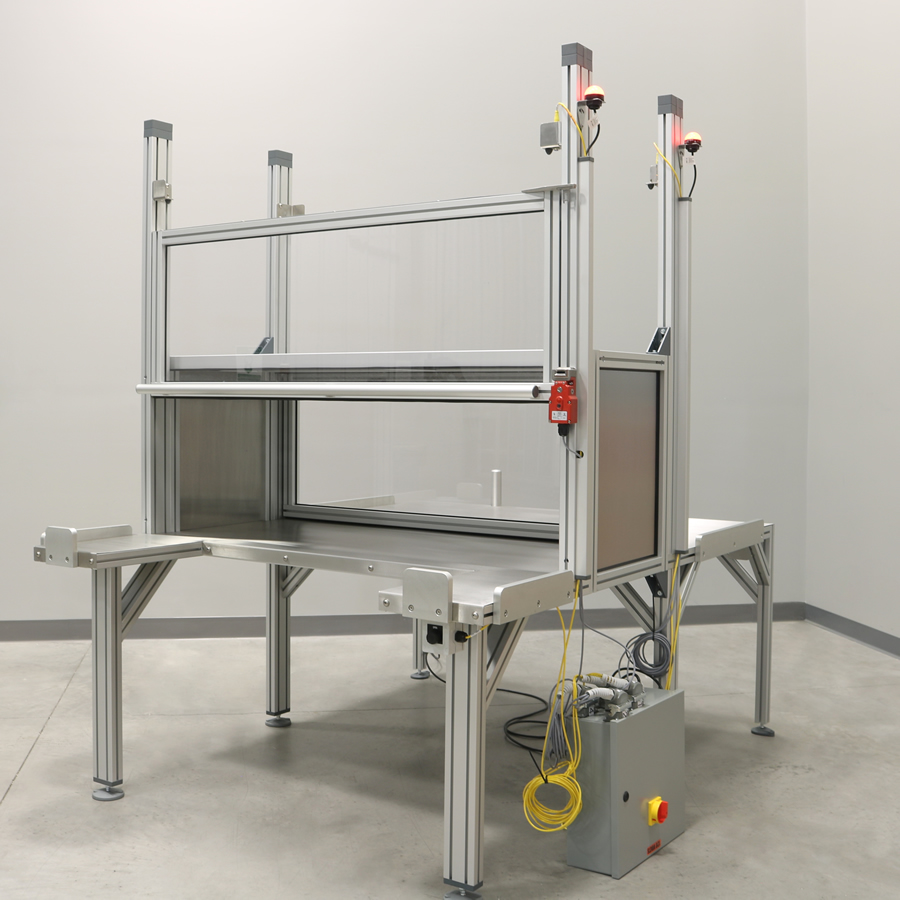

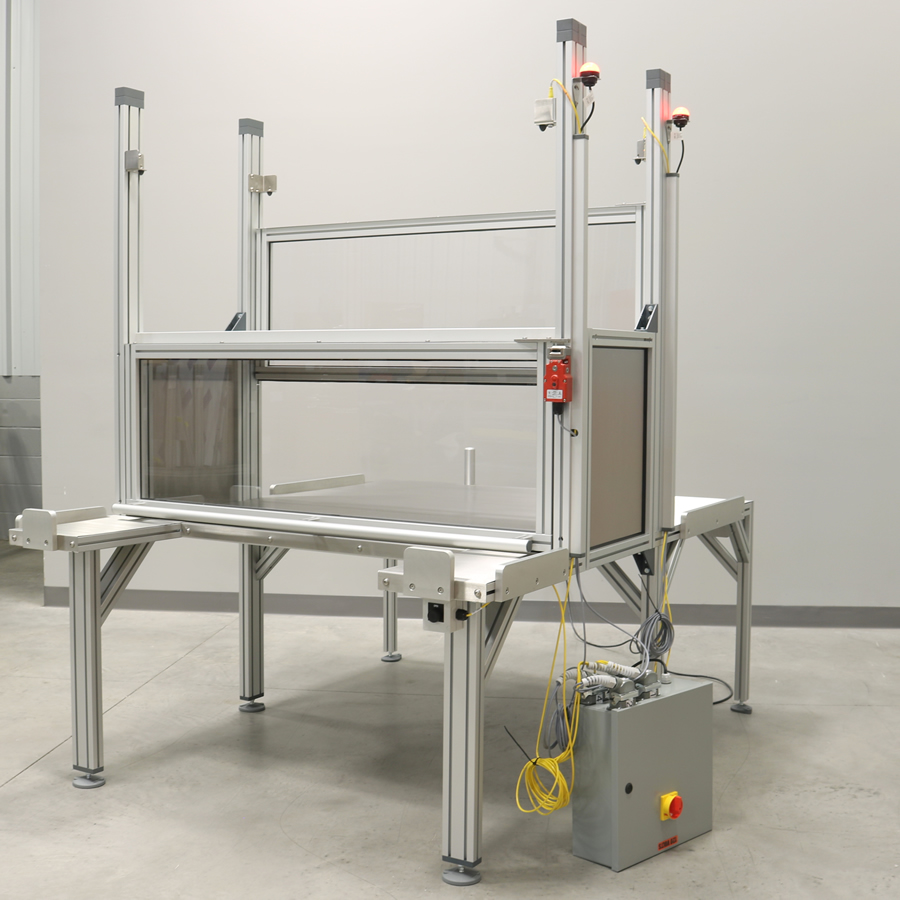

  • Reddish light indicates one of the doors is open
  • Tables & counterweighted doors are separate assemblies so they can be put on to the pass thru box on each side of the wall
  • Project #MT040122-1
  • In feed side has a cut out so the operator can set the 5 ft item down more easily
  • Electrical box has PLC that controls the lights & coordinates the door locks

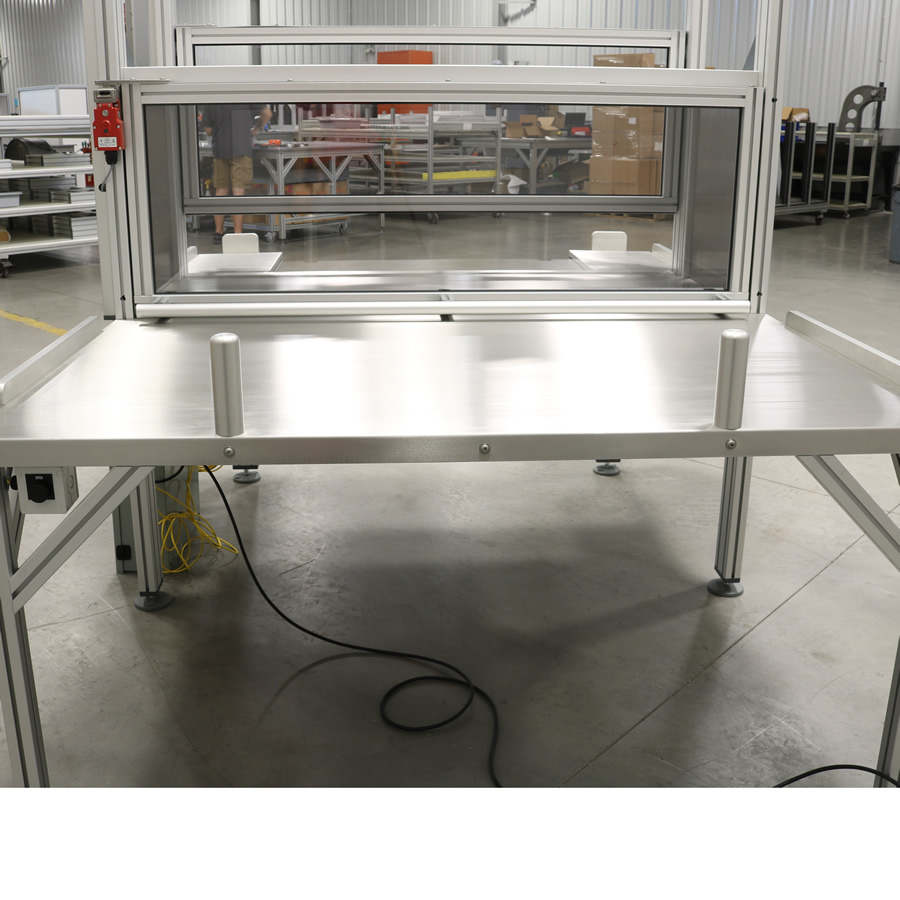

  • Out feed side has room for several items to build up

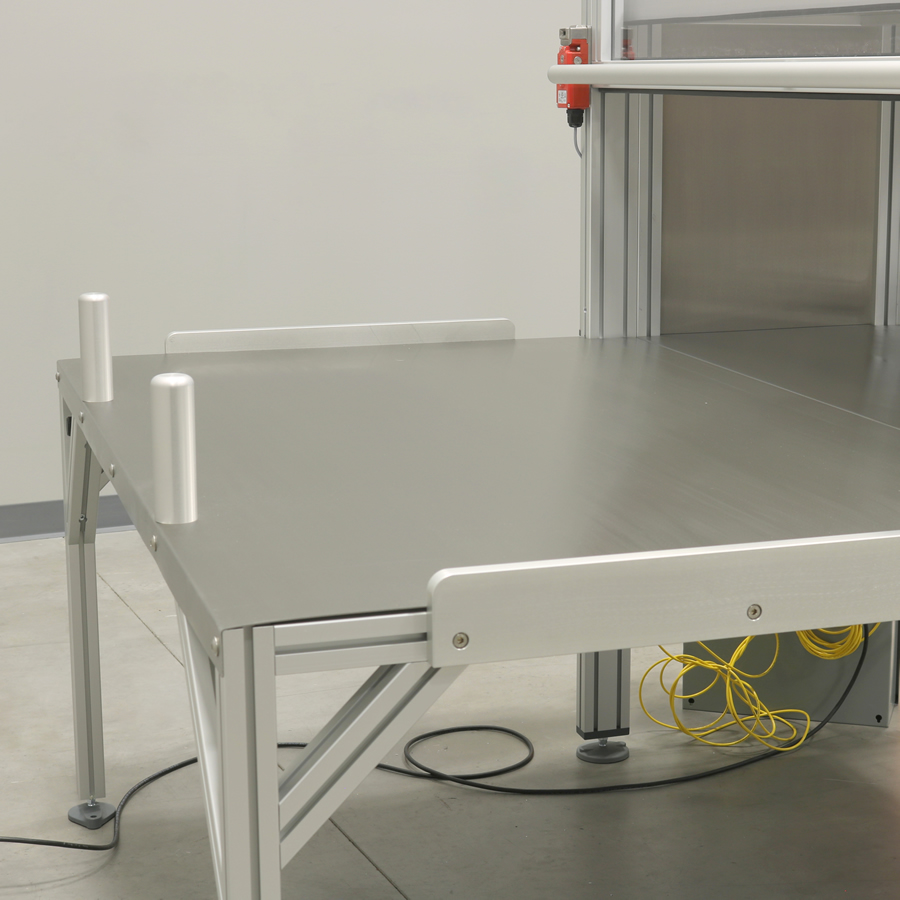

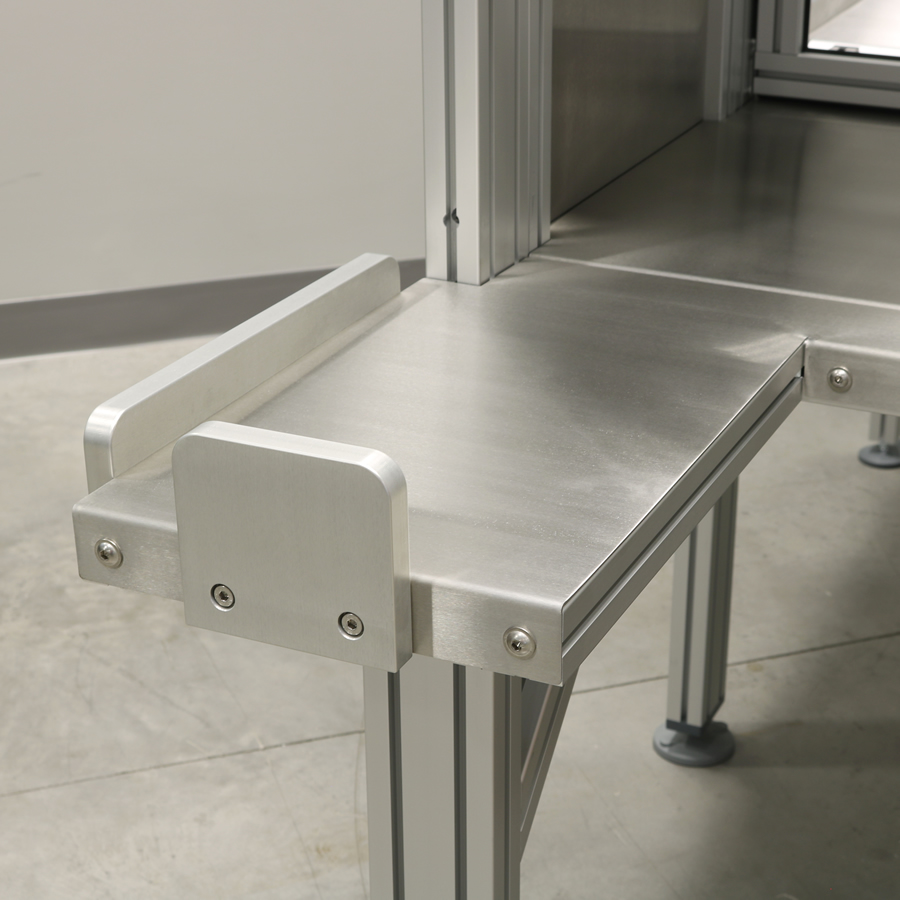

  • Guides on both sides make sure nothing falls off
  • Table top & guides are anodized aluminum

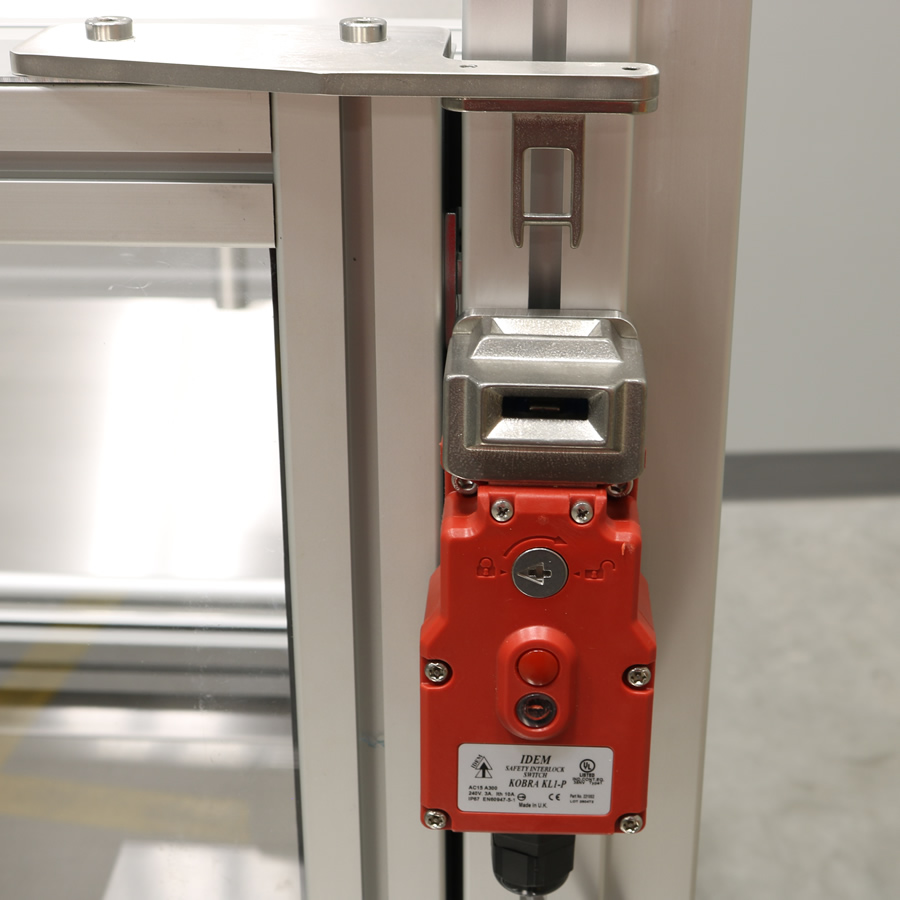

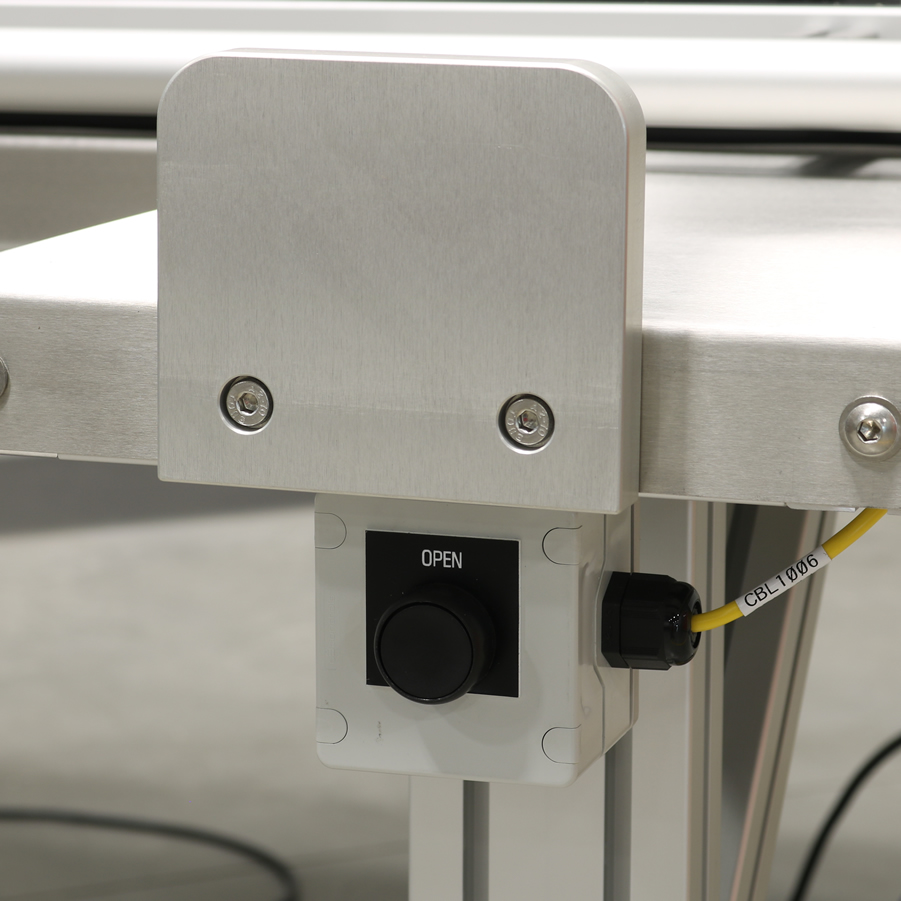

  • Switch unlocks door & gives you 8 seconds to open it. Once one side is unlocked other door cannot be unlocked
