Pneumatic Powered Vertical Sliding Door

Pneumatically actuated sliding door for various applications including automation lines, robot enclosures, safety access or machine guarding
Click here for 3D file
Click here to request a quote or more details
Click here for a video

Application Details

  • Custom sizing
  • Machine enclosures
  • Automated production lines
  • Industrial access
  • Safety guarding systems
  • Easily integrated into Minitec framing systems
  • Automation ready
  • Robot cells
  • Can be ordered with or without hand controls shown
  • This automated vertical sliding door can be ordered at any size with a door weight of 50lbs max at 100 psi
  • A 3ft x 3ft door cost is $3335 without controls.
  • Additional cost of flow controls, switch & E-Stop is $535
  • Project # SP010225-1

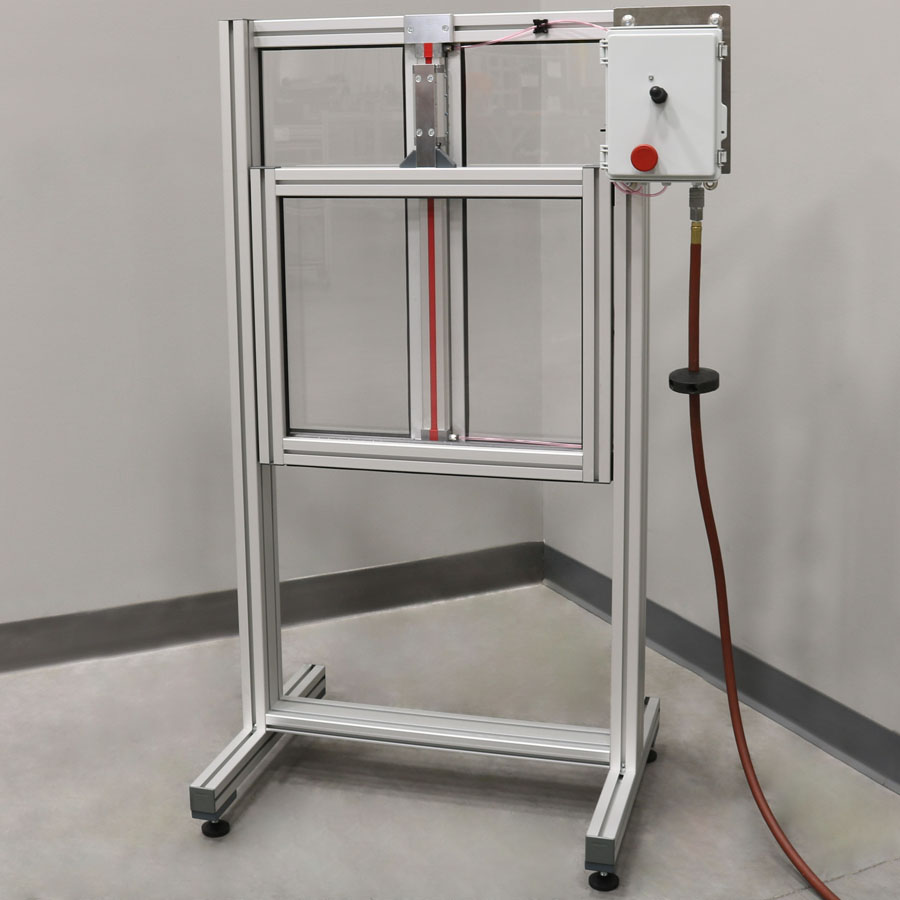

Pnuematically Driven Vertical Sliding Door 1

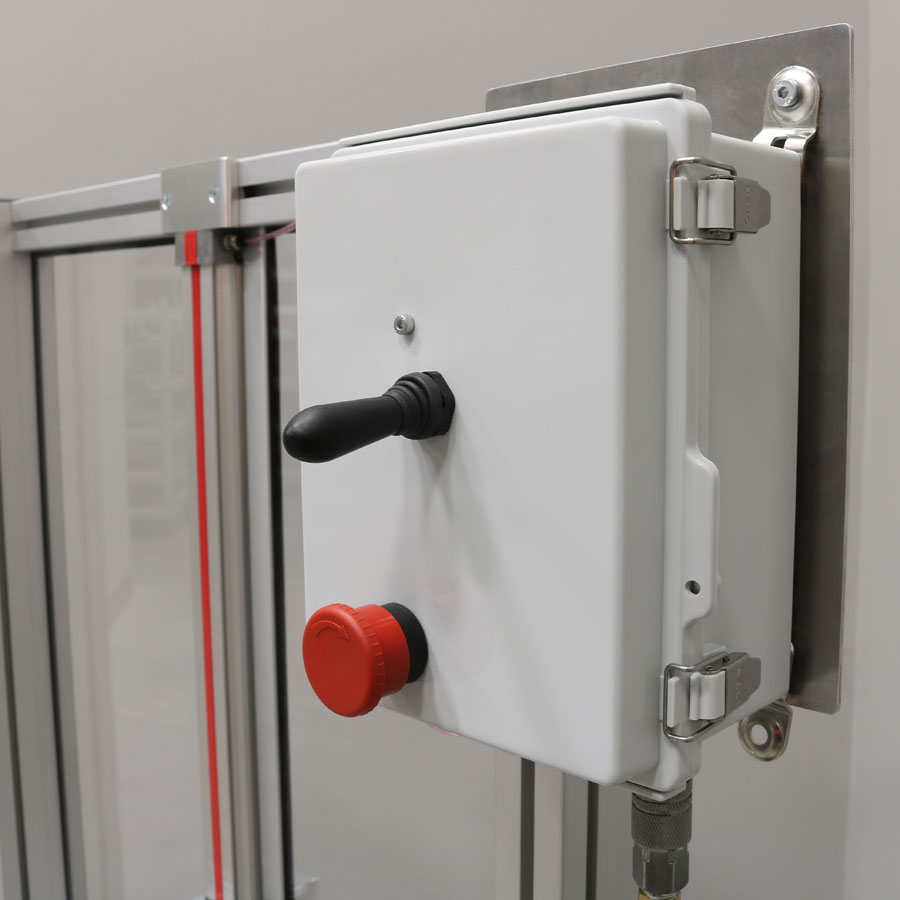

Pnuematically Driven Vertical Sliding Door 2

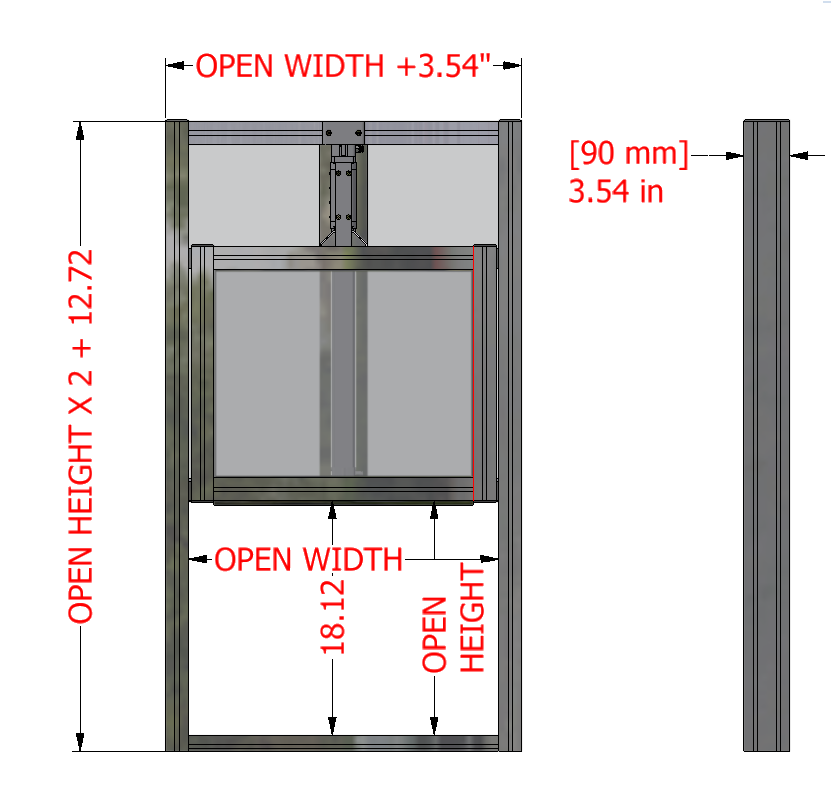

PNEUMATIC VERTICAL SLIDING DOOR DIMENSIONS

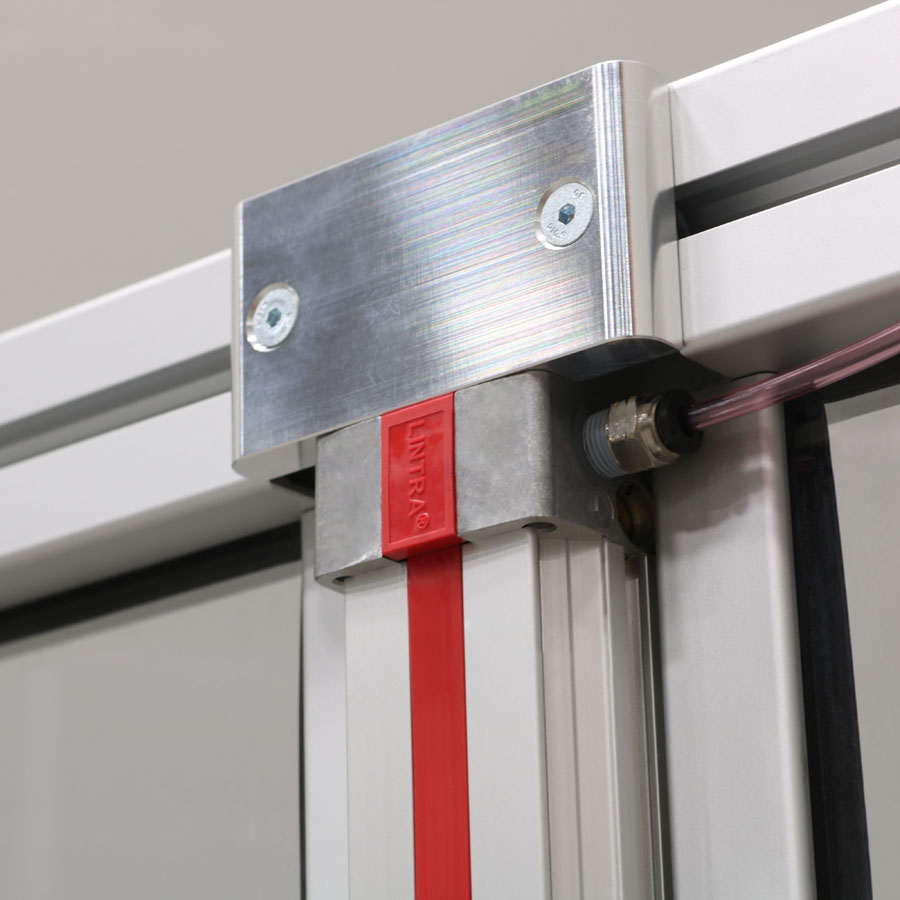

Pnuematically Driven Vertical Sliding Door 4

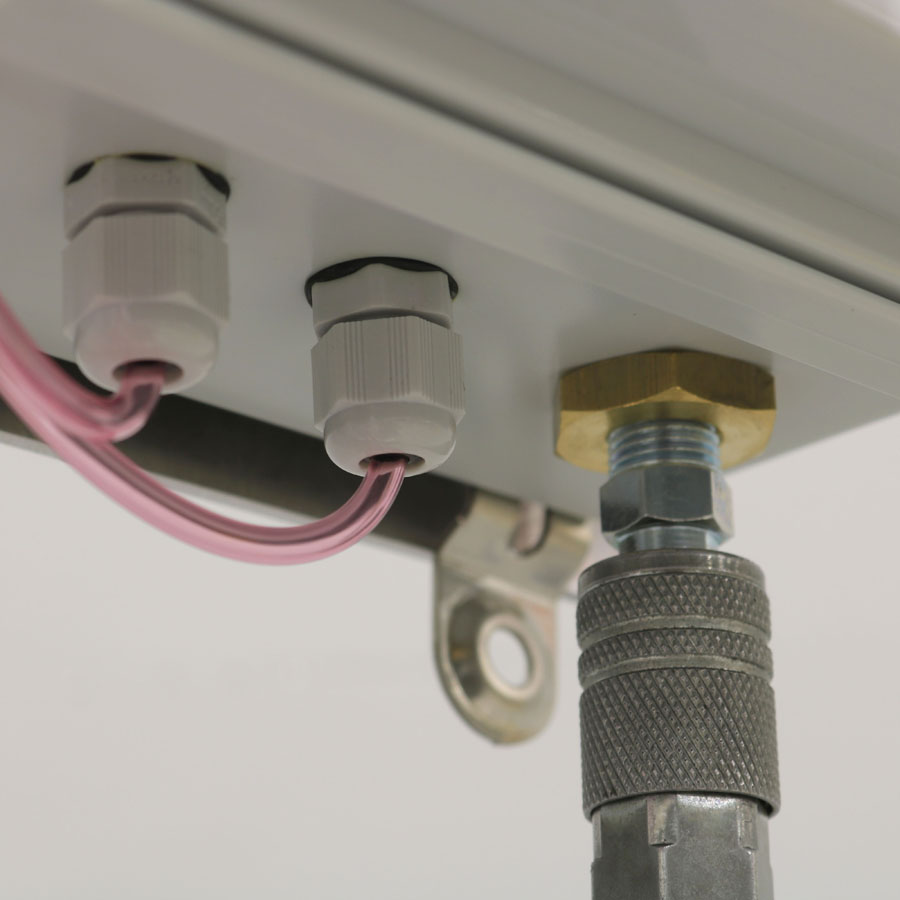

Pnuematically Driven Vertical Sliding Door 5

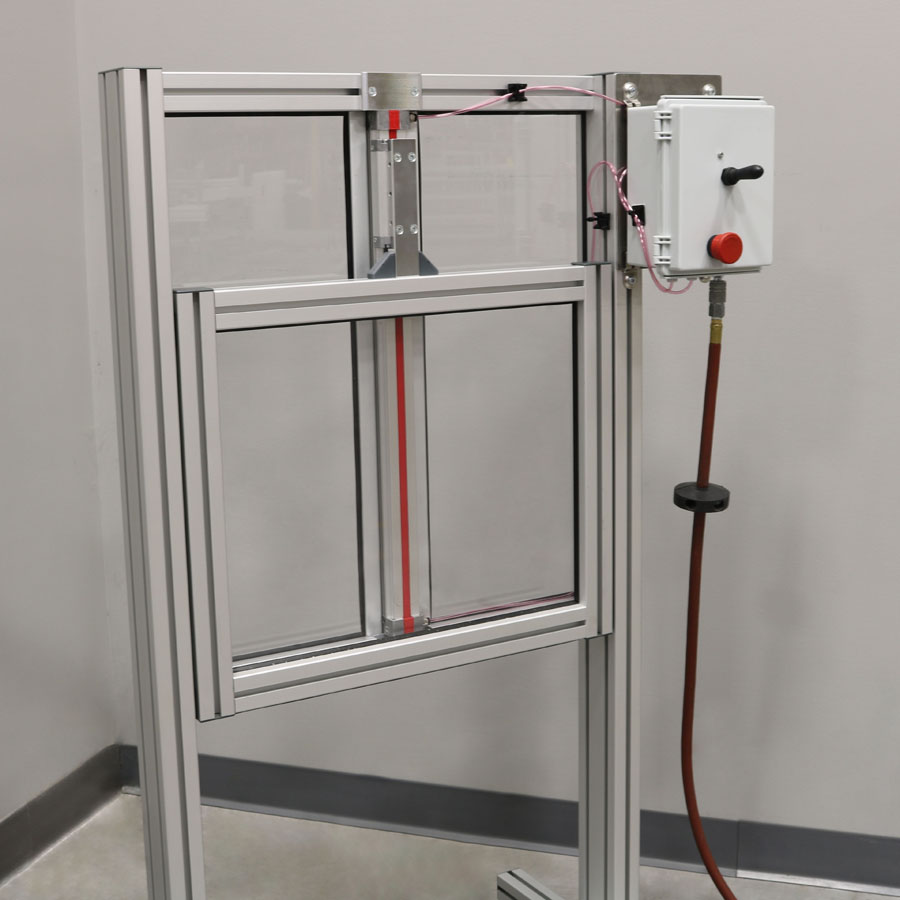

Pnuematically Driven Vertical Sliding Door 6

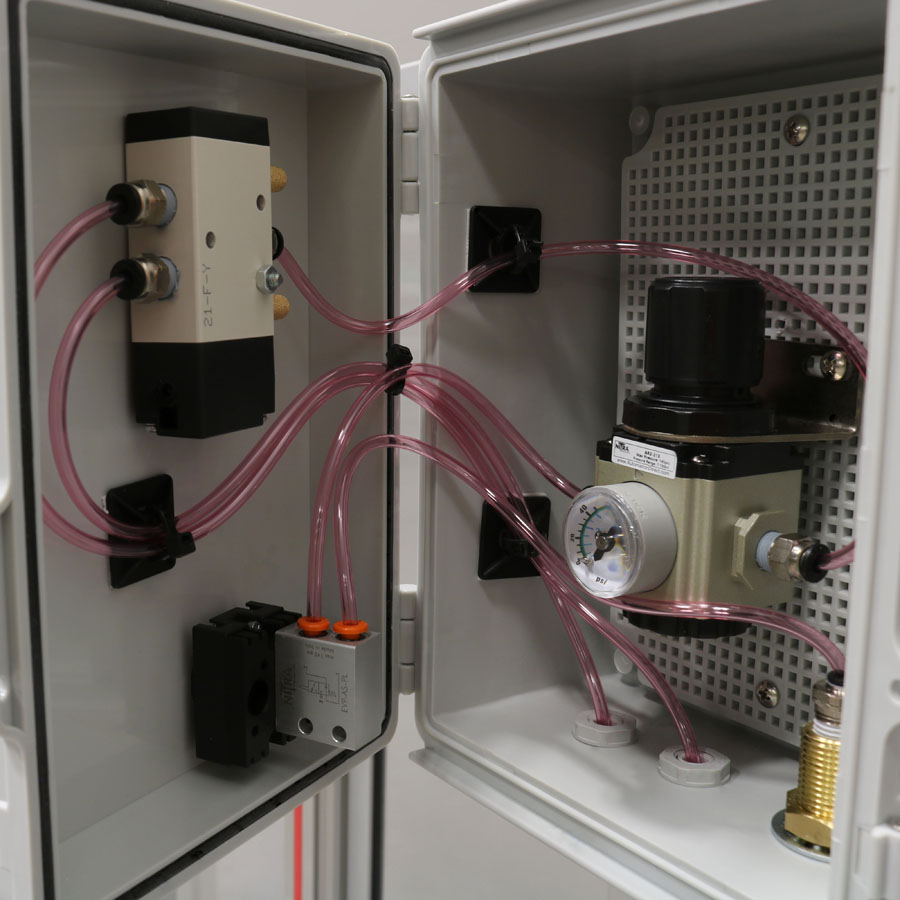

Pnuematically Driven Vertical Sliding Door 7

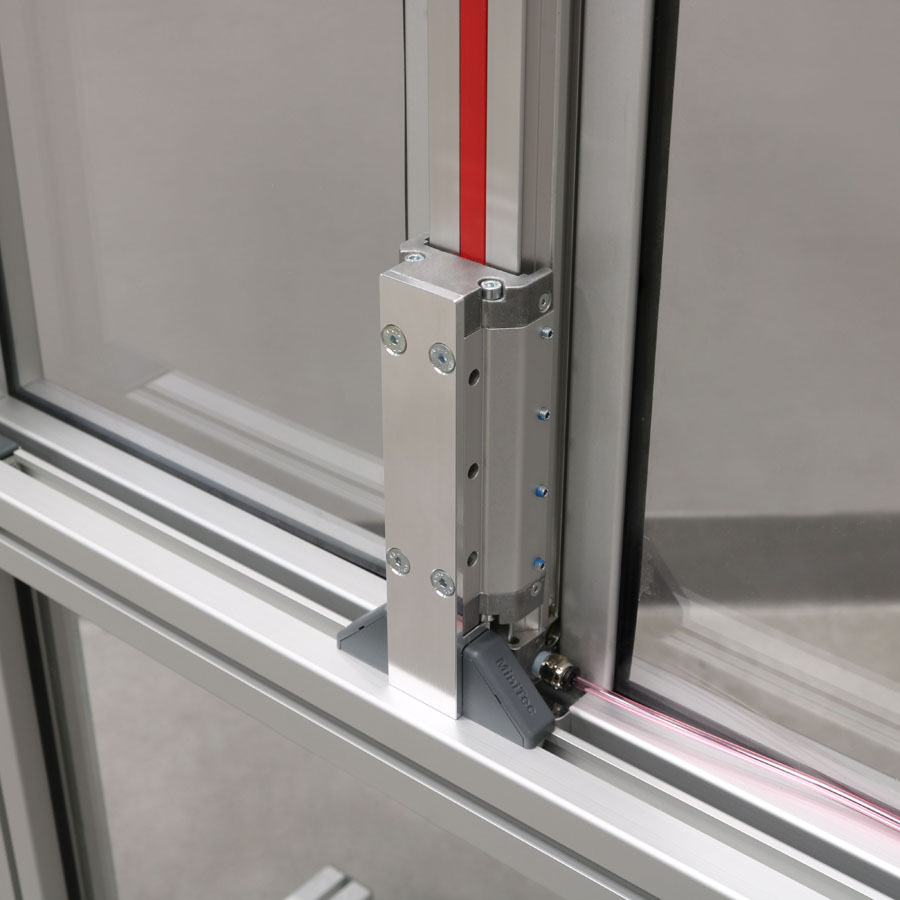

Pnuematically Driven Vertical Sliding Door 3
