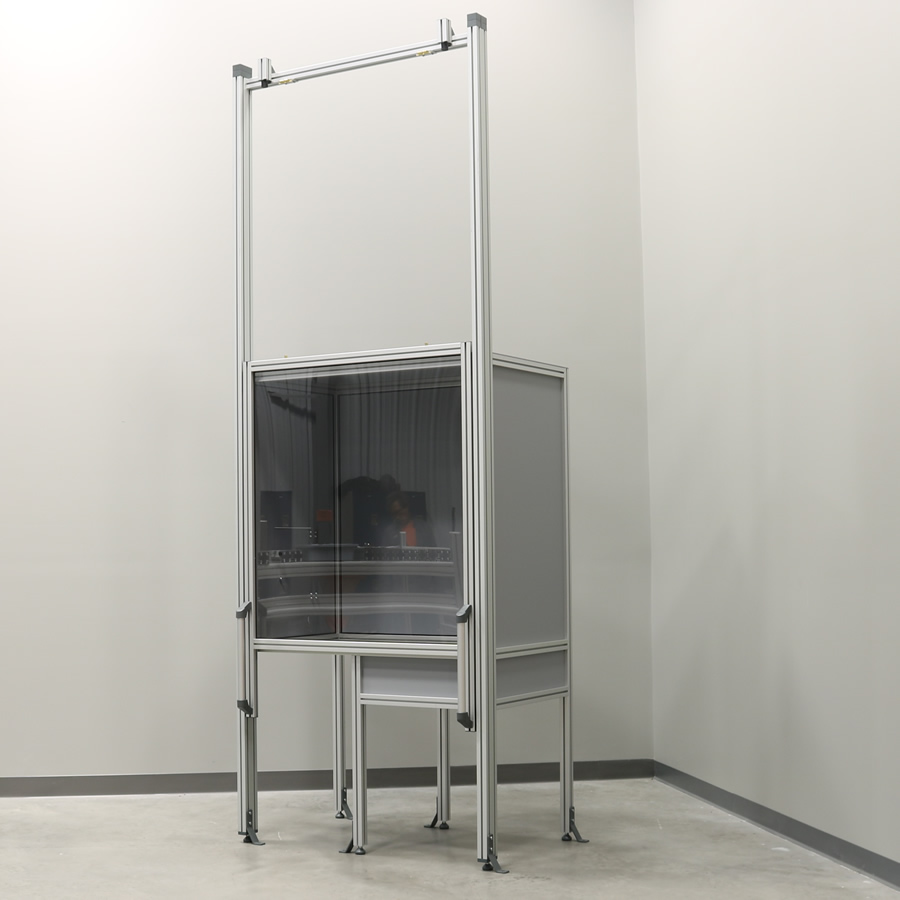

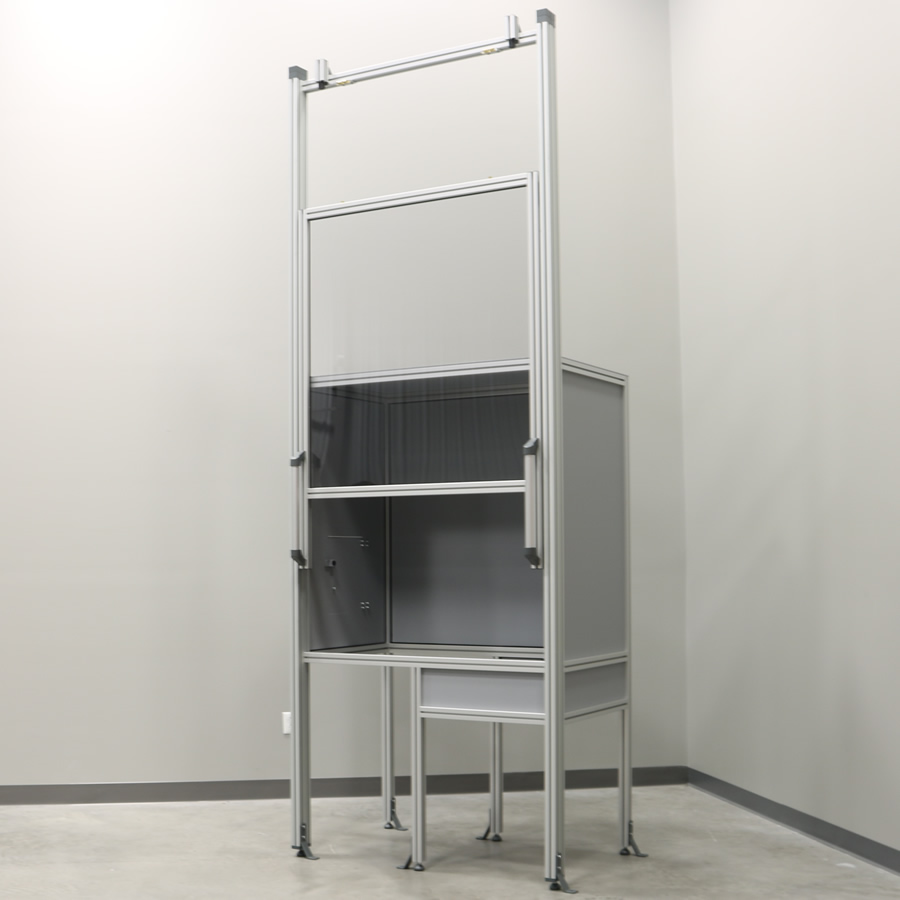

Machine Guard With Counterweighted Door
Click here for 3D file
Click here to request a quote or more details

Application Details

  • Counter weighted doors allow for full access to the machine without blocking aisleways
  • 6 floor mounting feet allow for lagging to a concrete floor

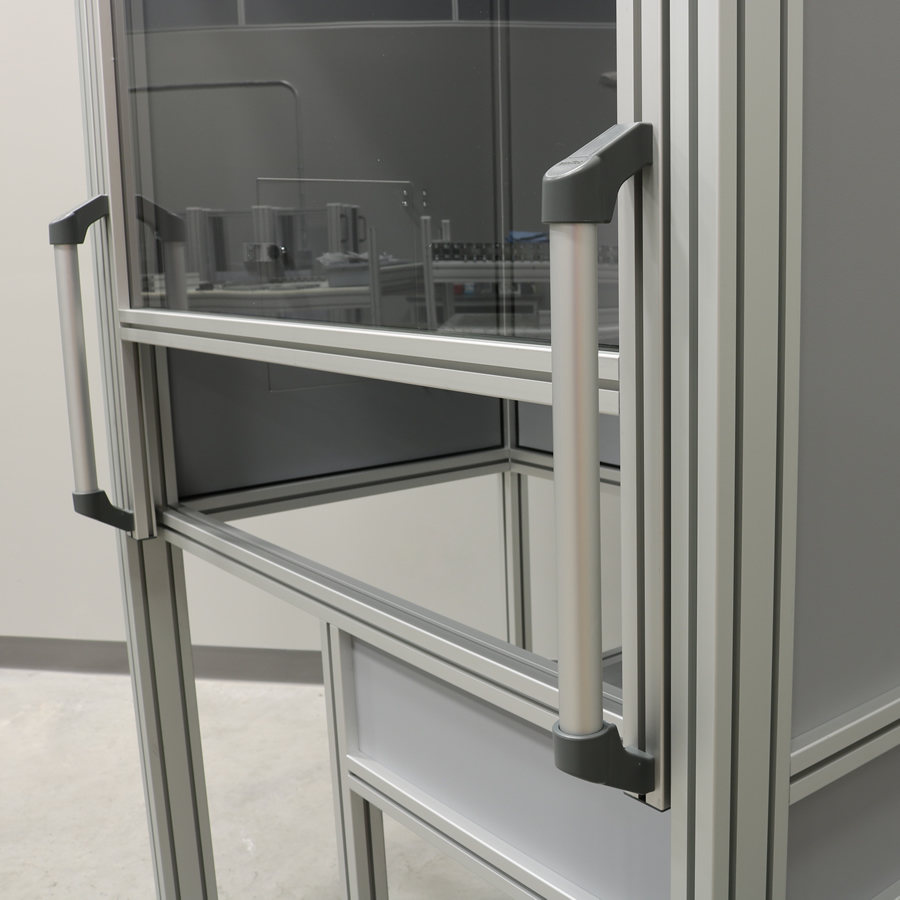

  • Door panel is 1/4″ clear polycarbonate which is very resistant to cracking & will stop most projectiles
  • Door has opening at the bottom for out feed conveyor
  • Guard side & top panels are 1/4″ gray HDPE

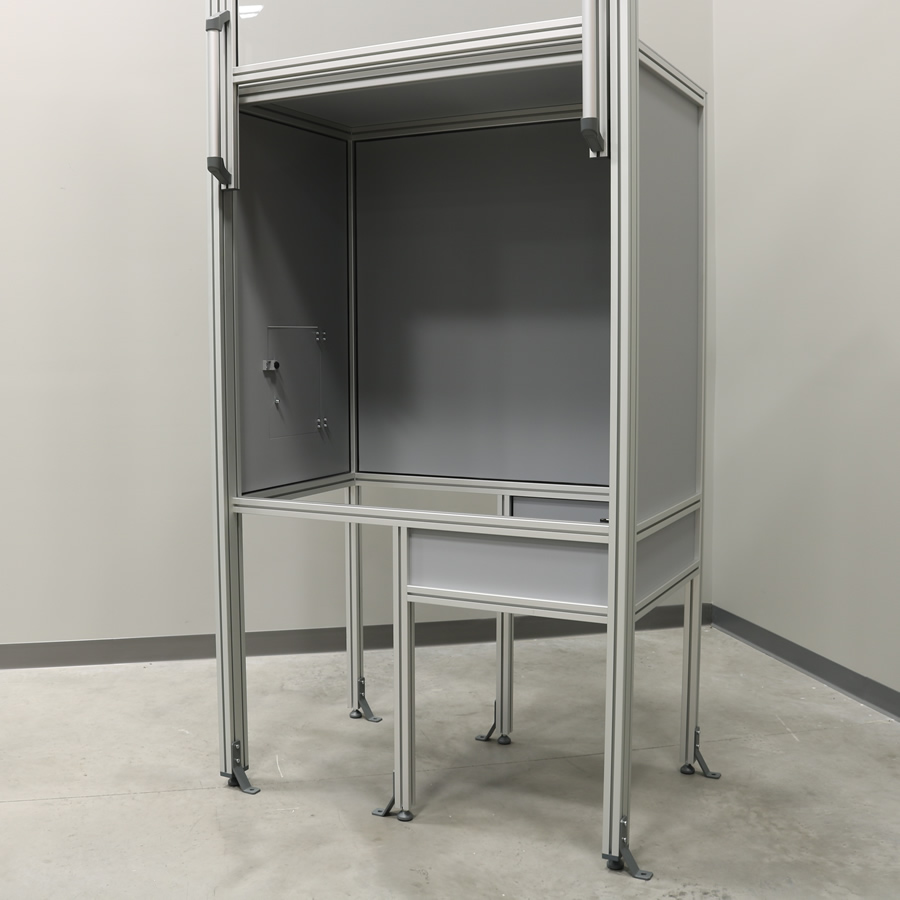

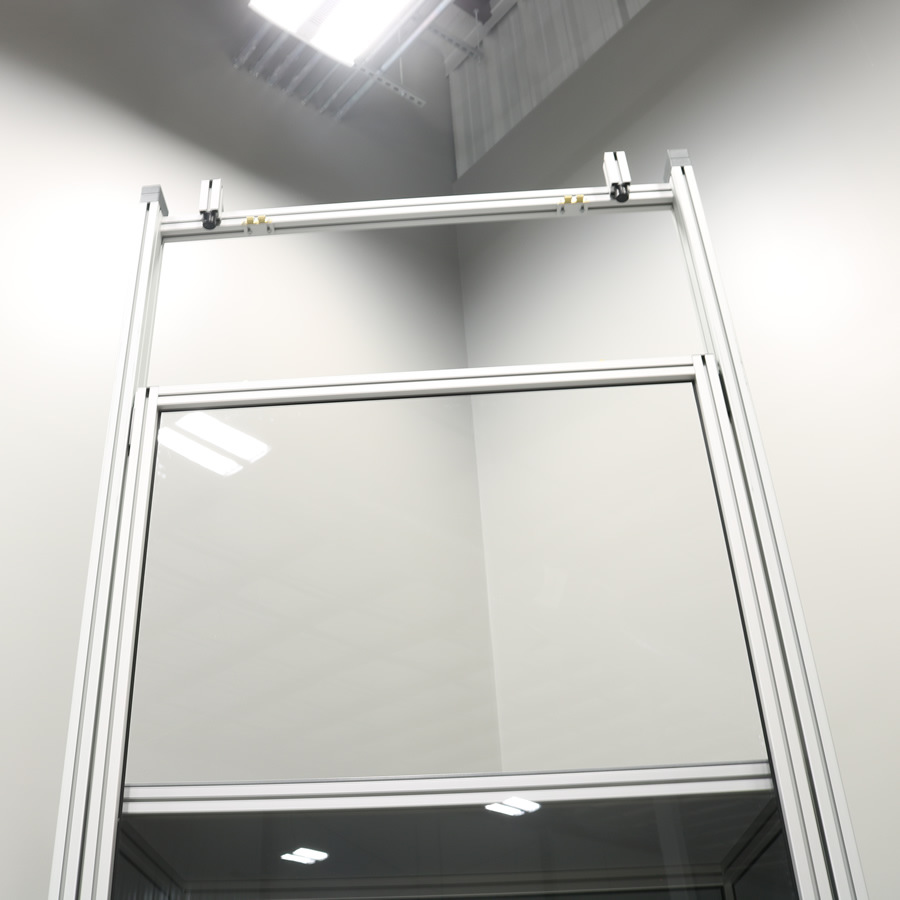

  • Door slides up giving complete access to the machine

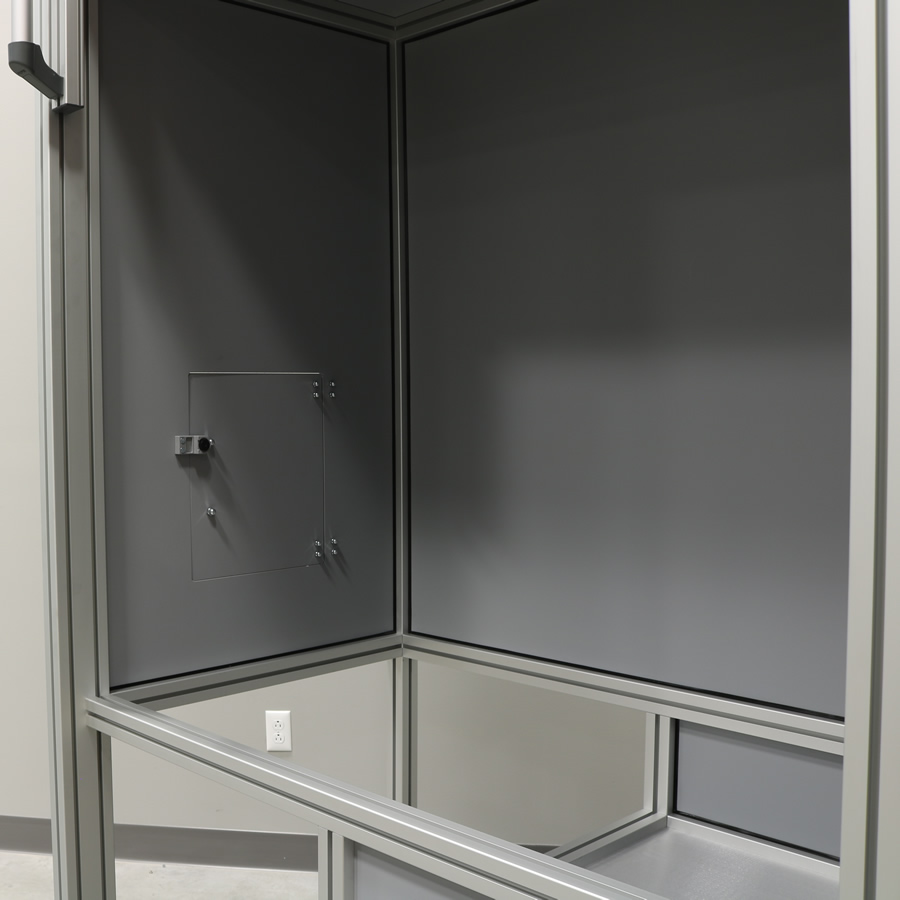

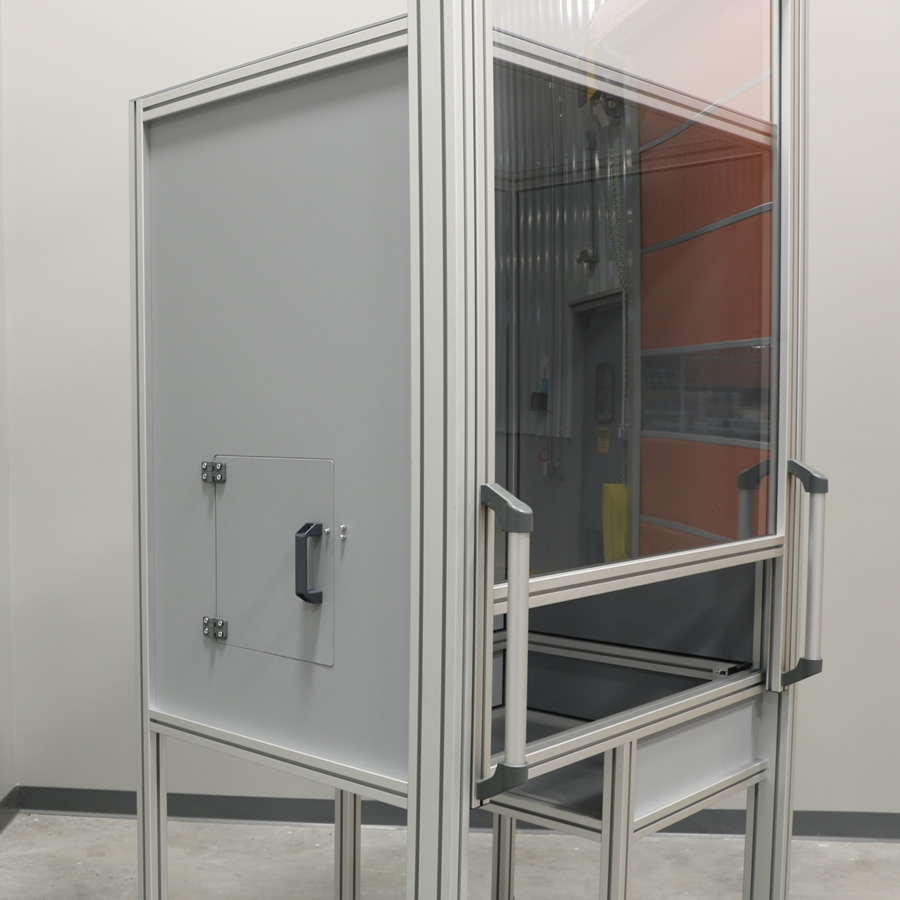

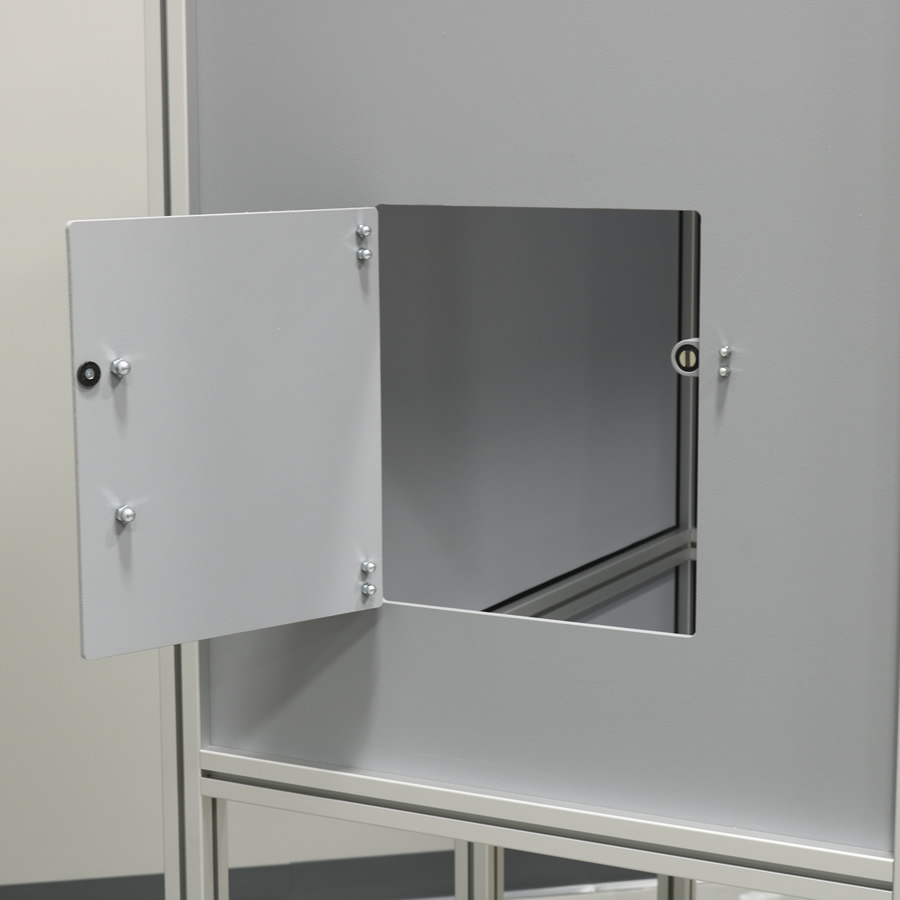

  • Small door on the left for loading the machine
  • Project # MH110819-1
