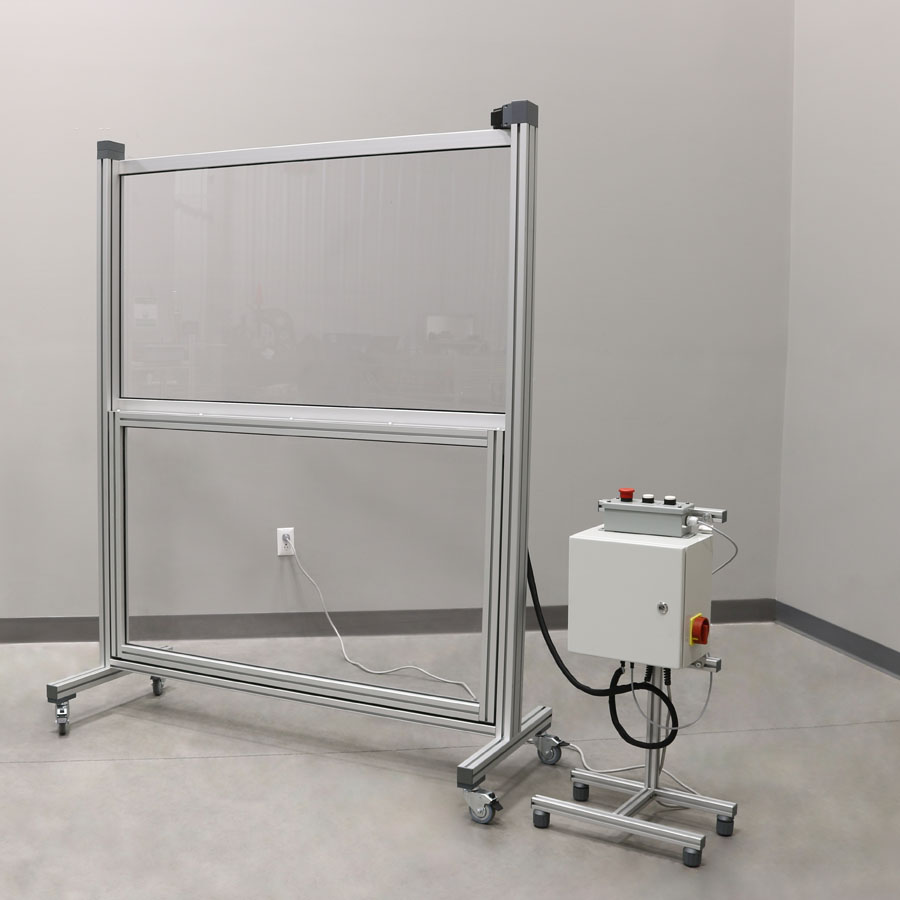

Motorized Vertical Sliding Guarding Door

A space-efficient guarding access solution using Minitec aluminium profiles, ideal for industrial and automation environments
Click here for 3D file
Click here to request a quote or more details
Click here for a video

Application Details

  • Counterweighted system for smooth vertical operation
  • Motorized opening and closing
  • Aluminum profile construction
  • Suitable for automation and guarding applications, machine enclosures
  • Easily integrated into MiniTec framing systems
  • Customizable dimensions and integration
  • Safety guarding systems
  • Automated production lines
  • Robot cells

Project # SP032625-1

  • Counter weighted door will not fall in the event of power loss for increased safety.
  • Door can be ordered at any size & can be ordered with or without PLC controls.

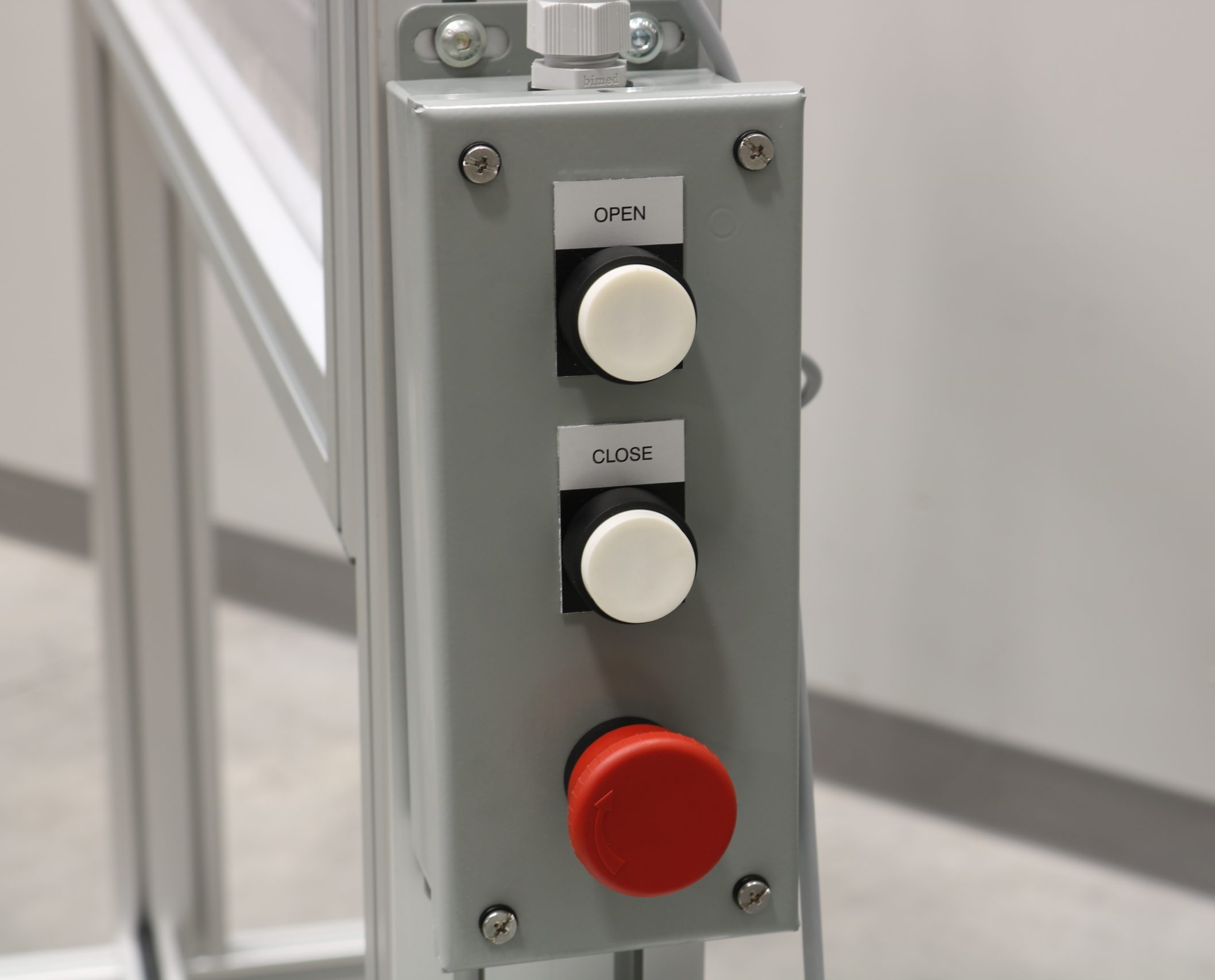

  • Can be ordered with one or two push button controls for two sided operation.
  • Can be machine controlled via serial or discrete signals.

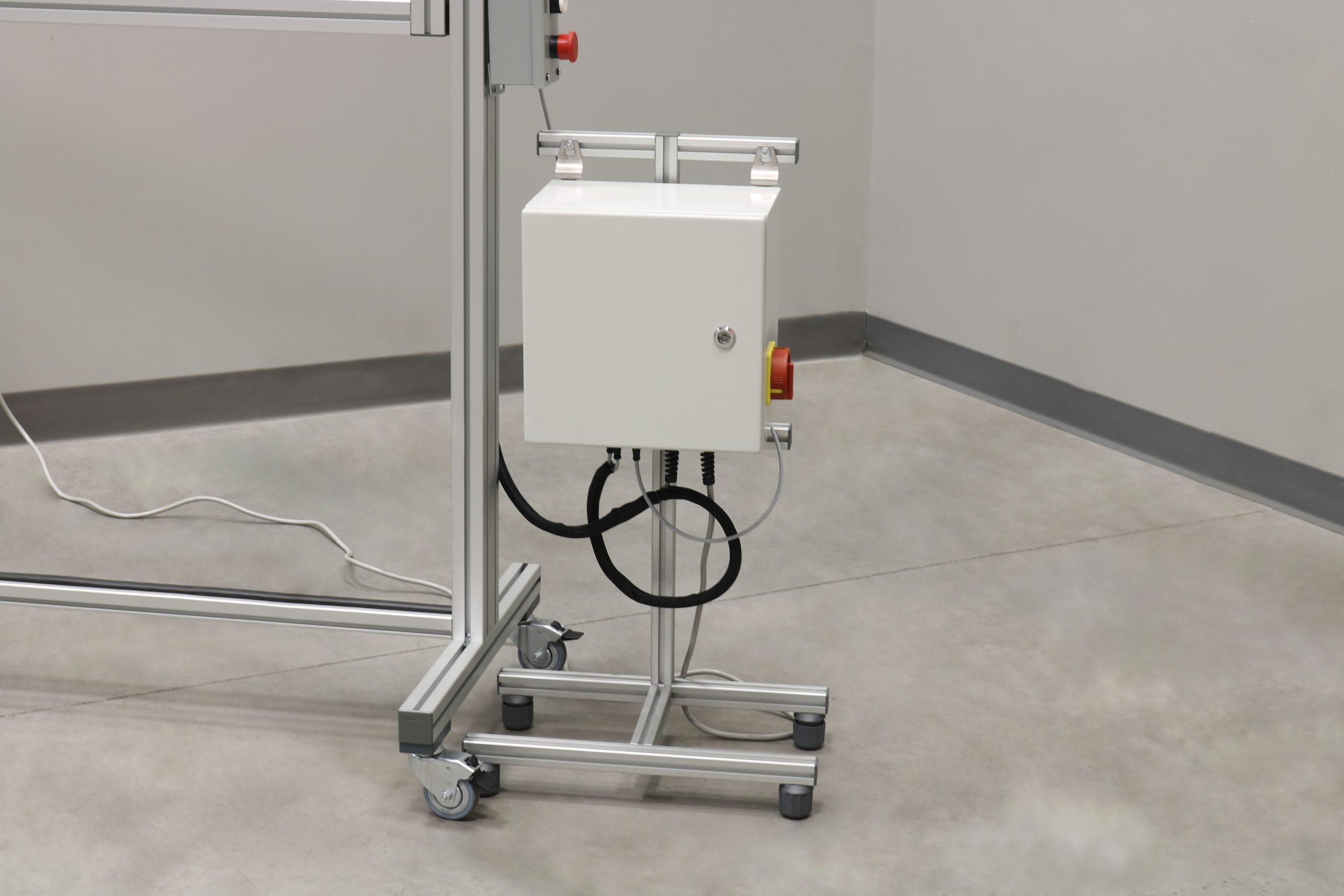

  • Cost for a 3′ x 3′ door with motor is $2600 without pushbutton or control box. Push button & control box are an additional $2500.
  • Easily add light curtains, safety switches or solenoid locks.
  • E-mail the project number above & dimensions to sales@minitecframing.com for a quote today.

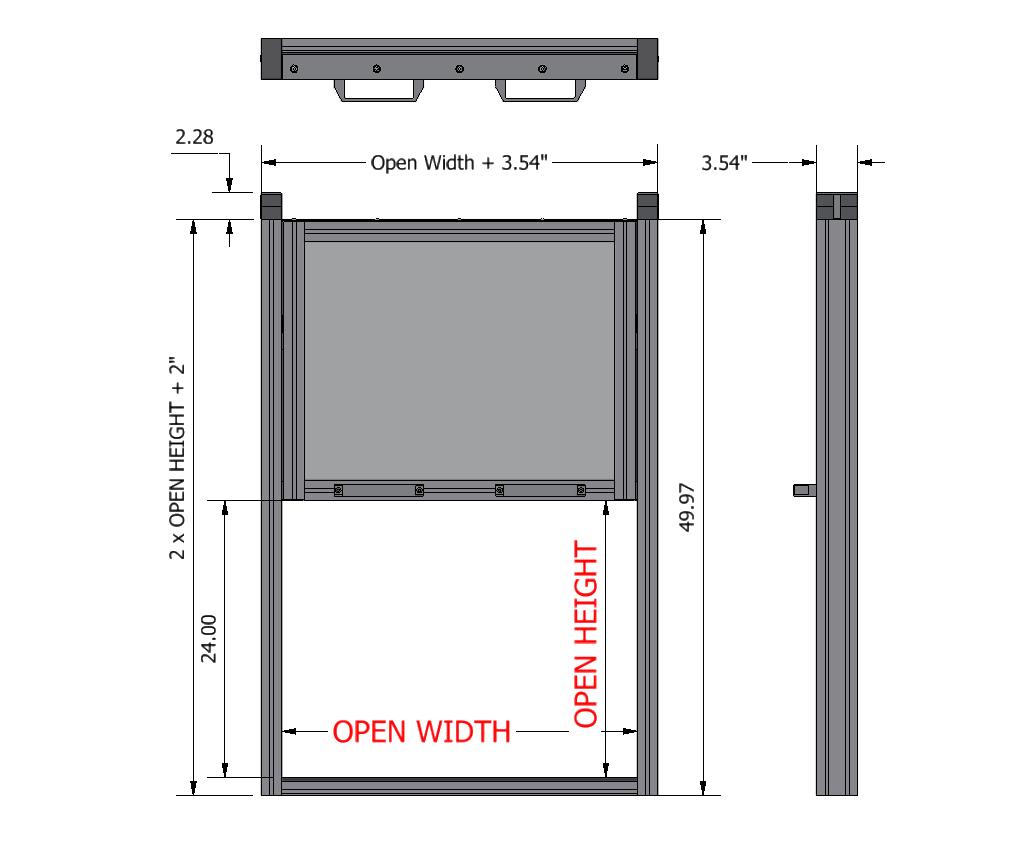

SP060112 1 DIMS

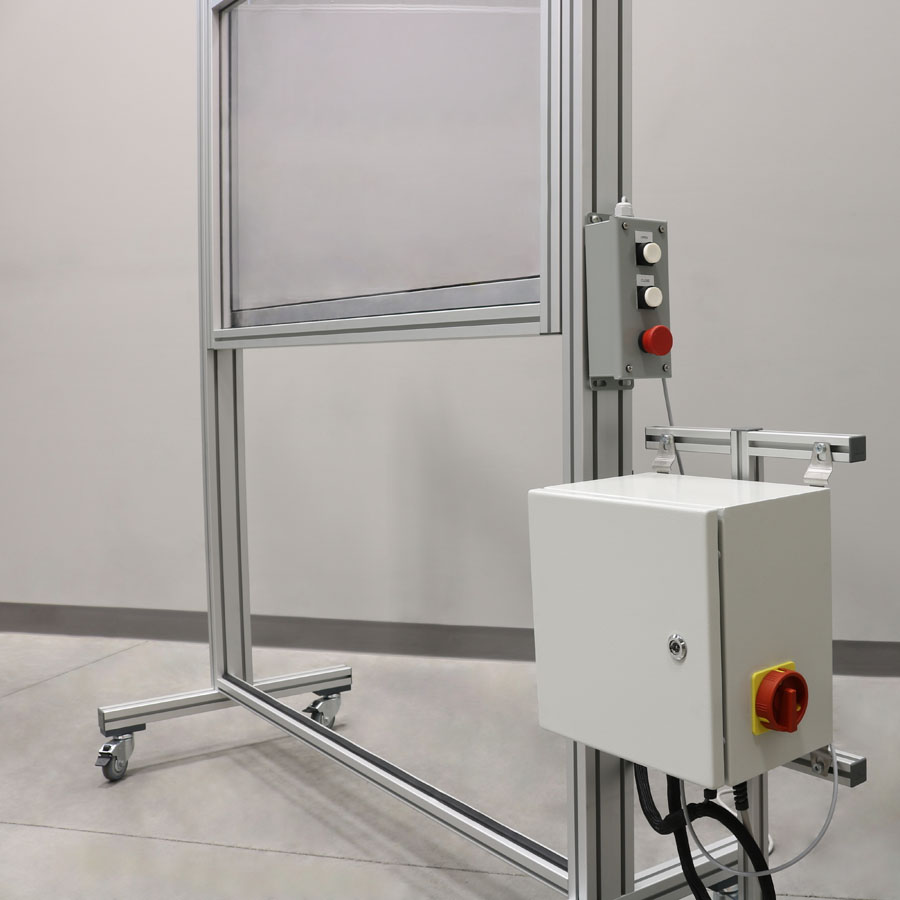

Motorized Vertical Countweighted Door 3

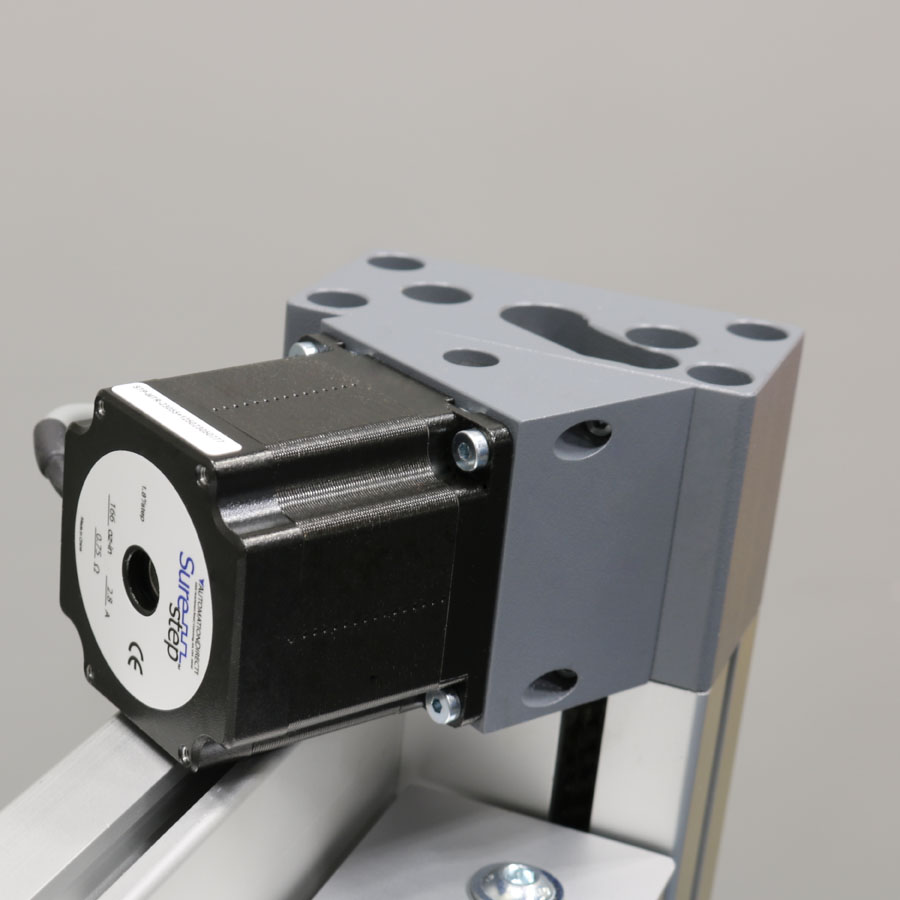

Motorized Vertical Countweighted Door 4

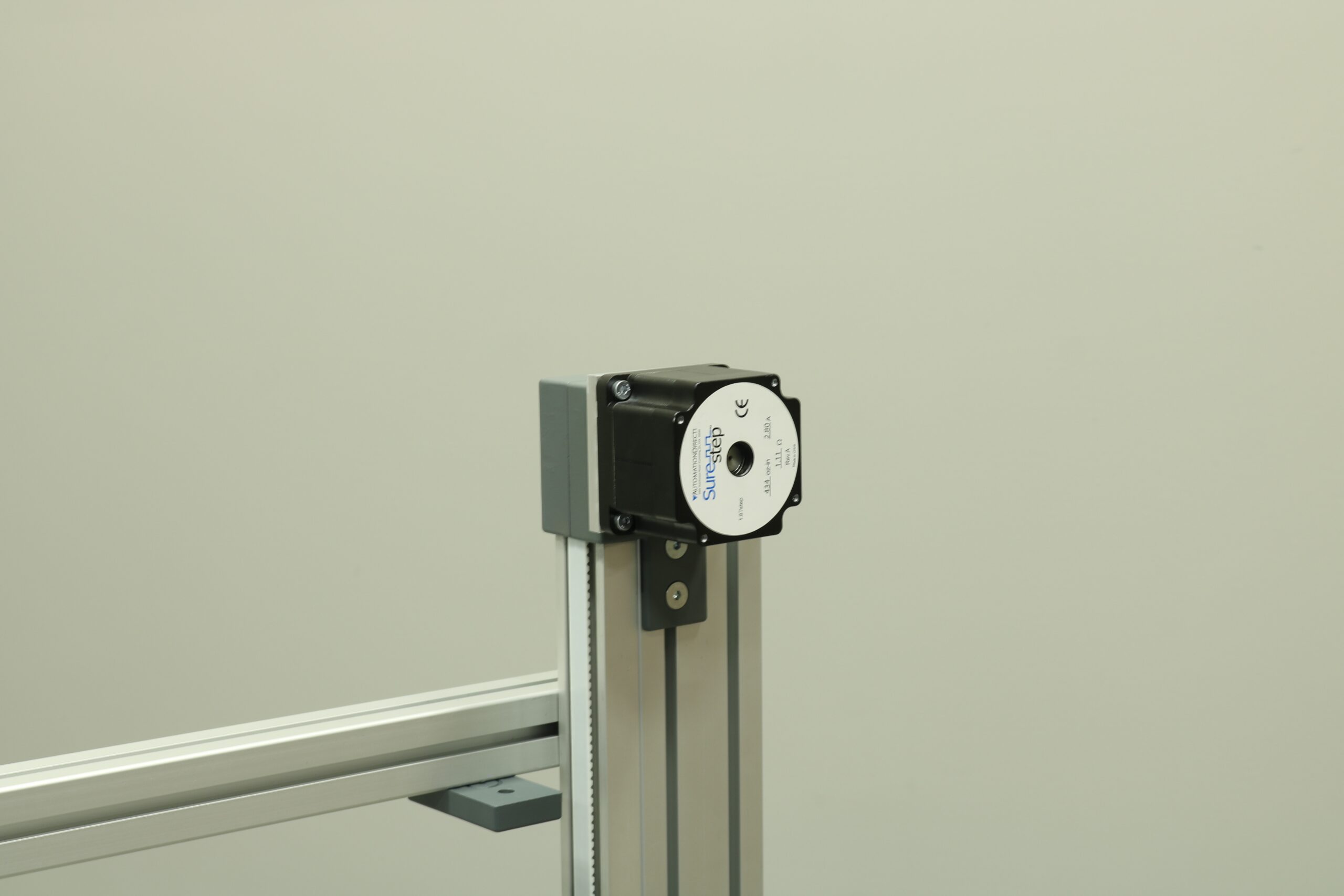

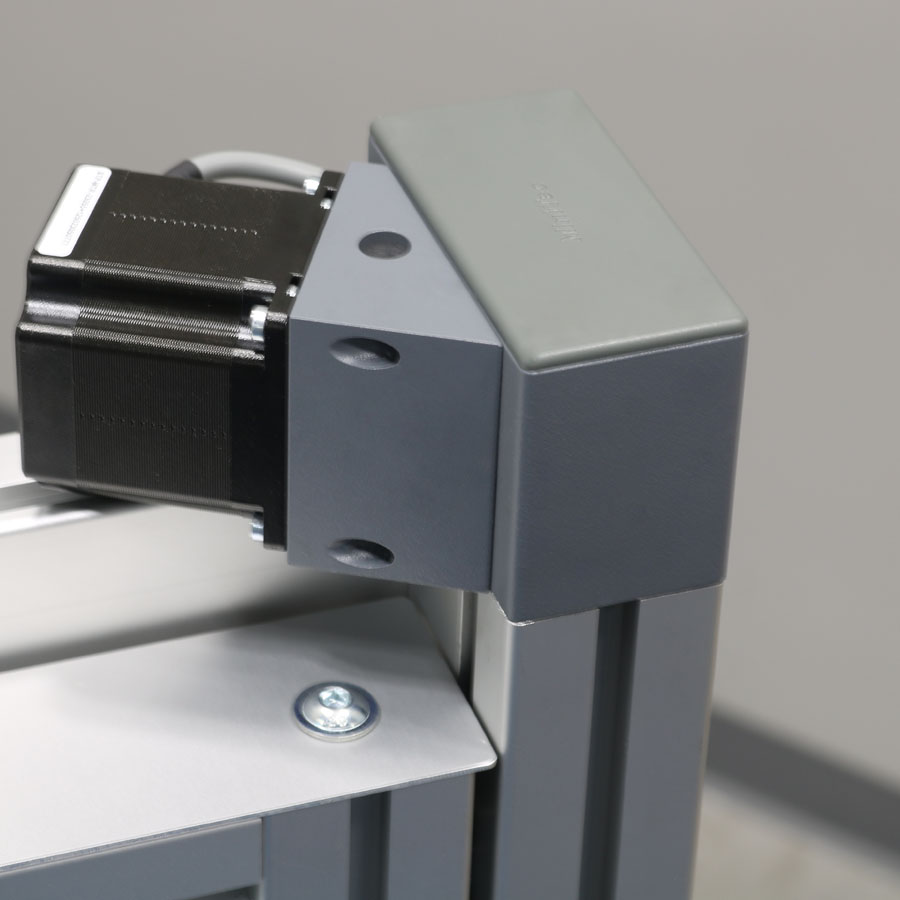

Motorized pulley

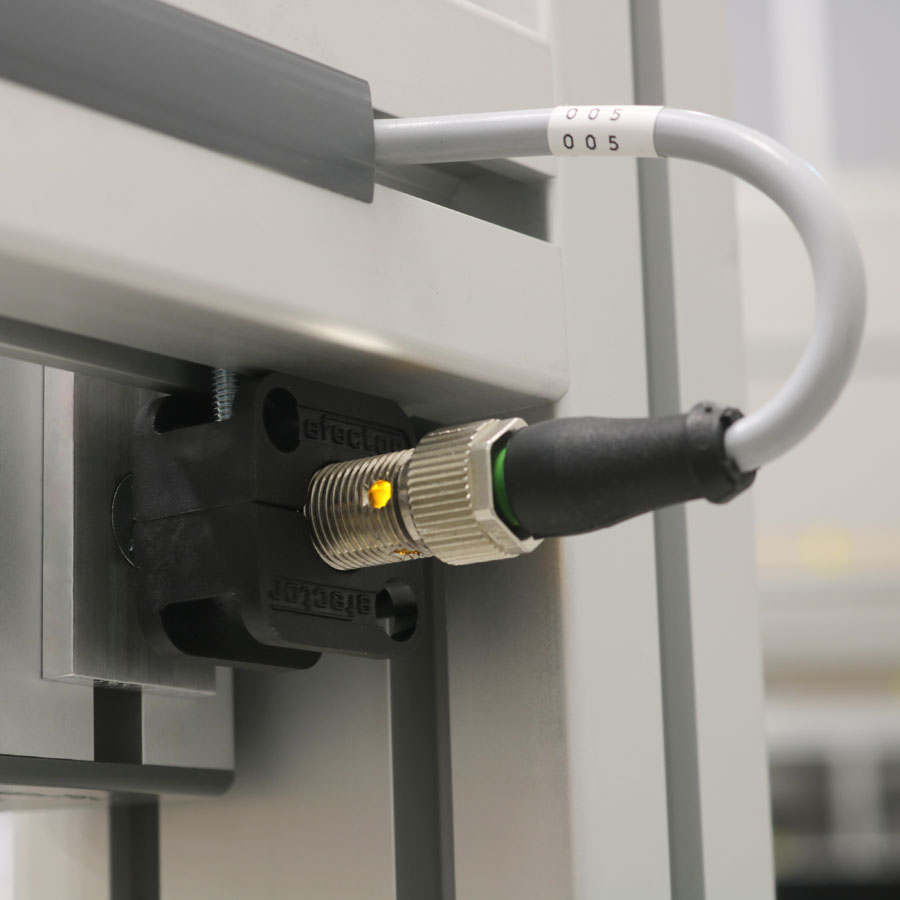

Limit switch for door travel

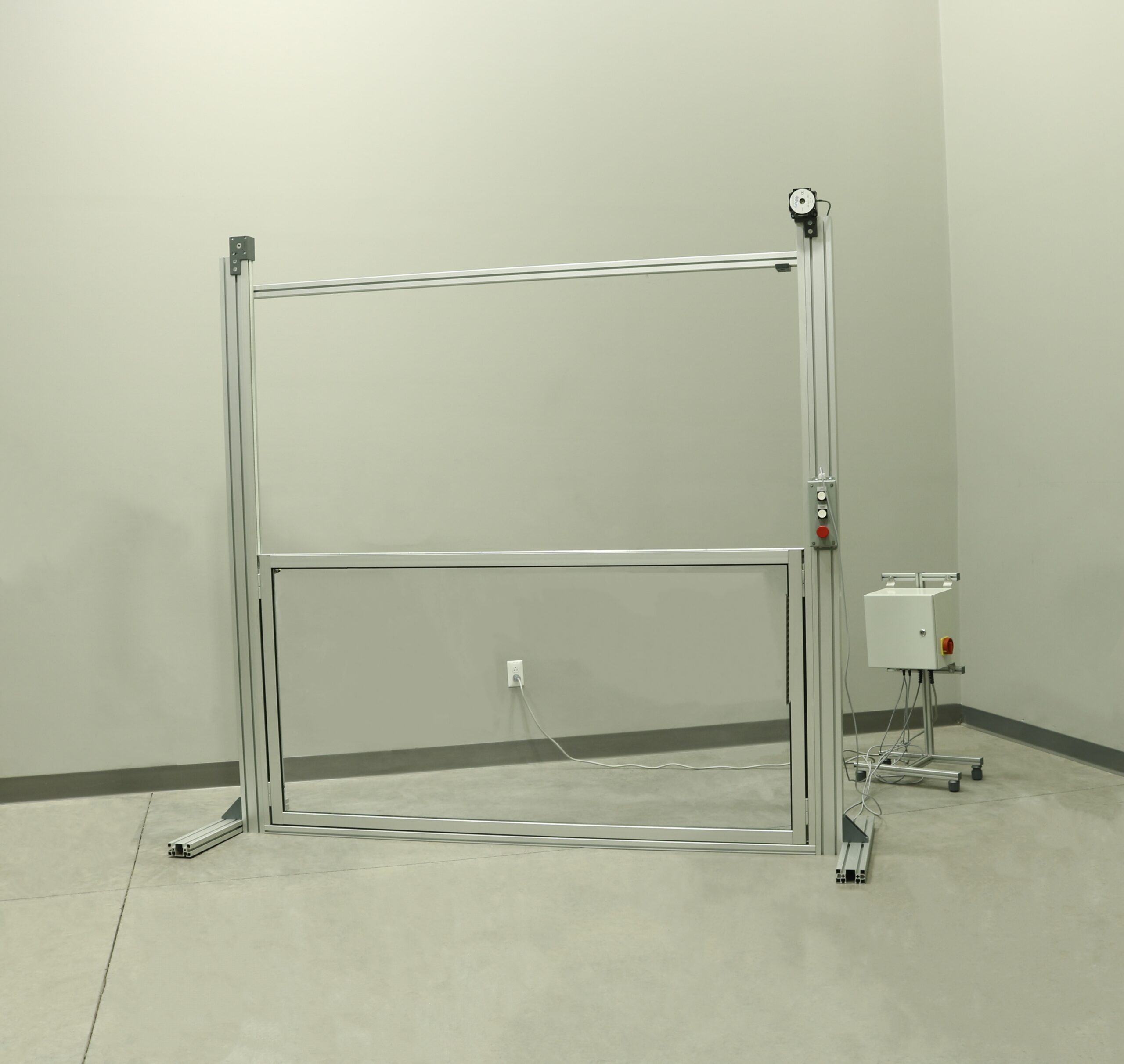

BELT DRIVE DOOR
BELT DRIVE PULLEY
DOOR INTEGRATED INTO WELDING
