L-Shaped Collapsible Doors That Fold In & Out Of The Way
Enclosures
Back
L-Shaped Collapsible Doors That Fold In & Out Of The Way
Bi-Folding Machine Door Folds Back & Out Of The Way
Click here for 3D file
Click here to request a quote or more details
Application Details
Completely customizable for your application!

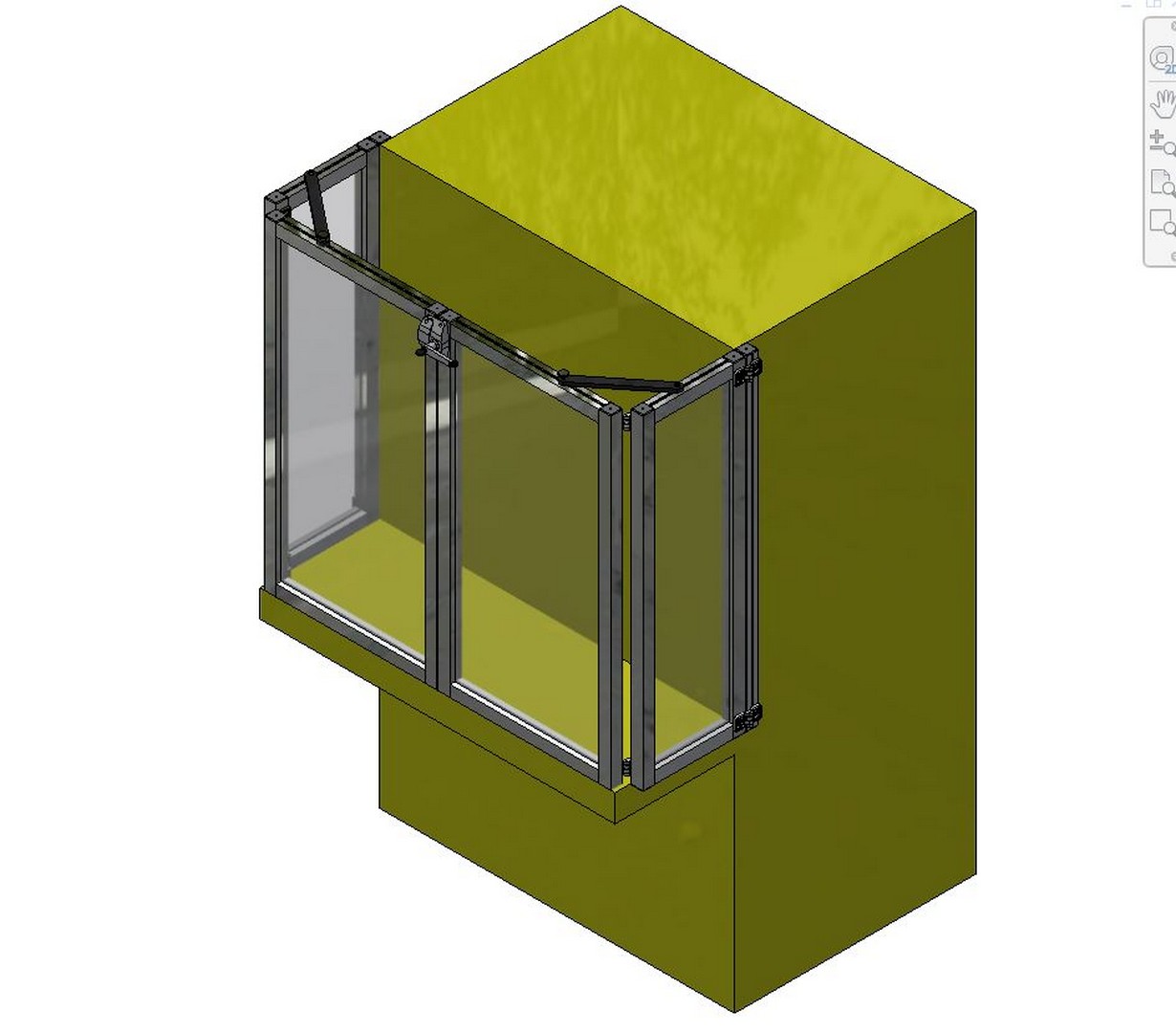

Door are fixed with a brace into an L-shape for easy opening & closing
Doors can be rotated 180 degrees
Thumb screw on the brace at the top can be loosened allowing the doors to fold forward out of the way
Project file AM040324-1
Doors can be made to virtually any size to fit your machine.
This convenient design allows the doors to open & close easily and still fold away quickly when needed.
Doors are made from 45×45 G series profiles

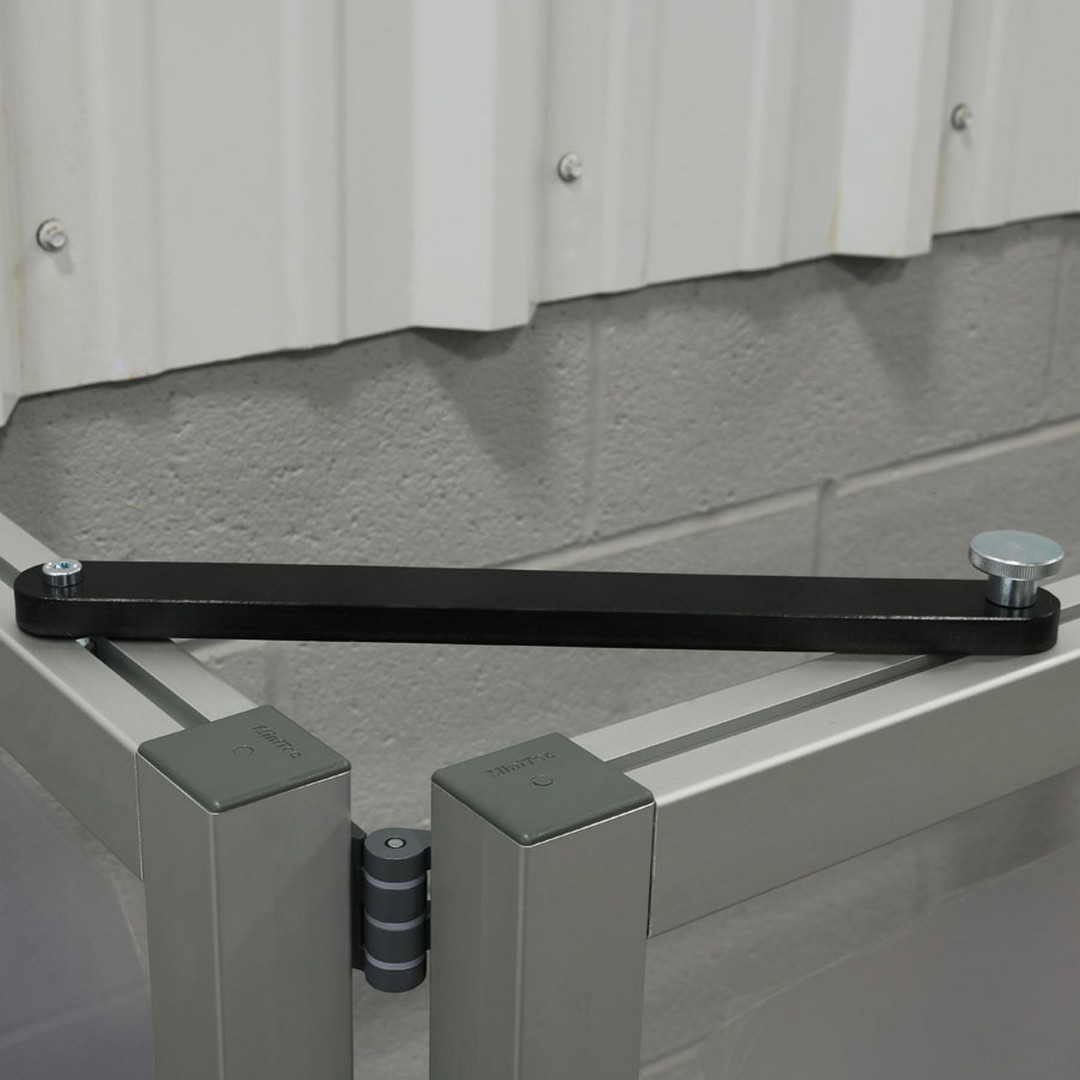

Black UHMW plastic top brace slides smoothly across the aluminum. Loosen thumb knob to fold door in on itself or straight back.

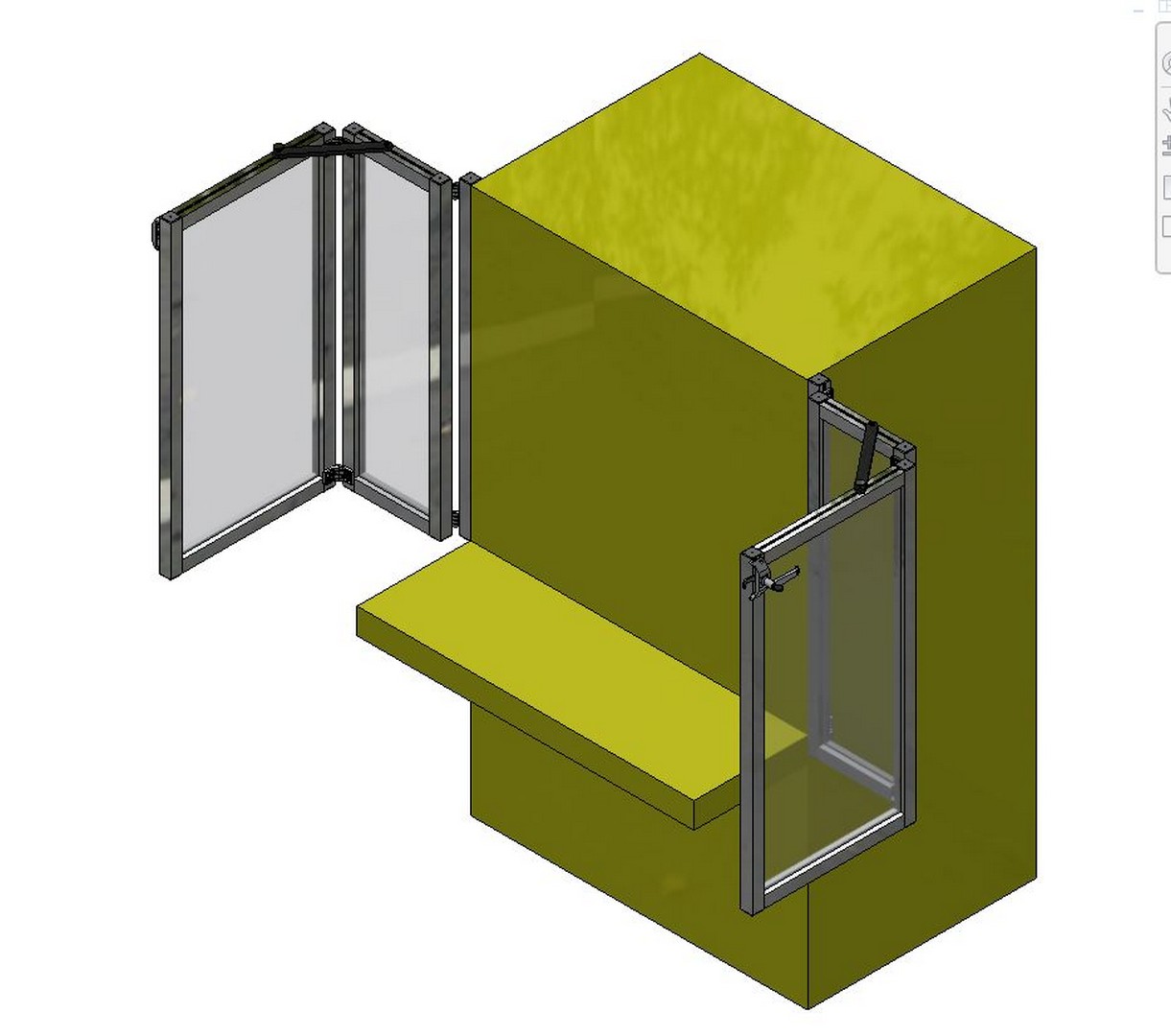

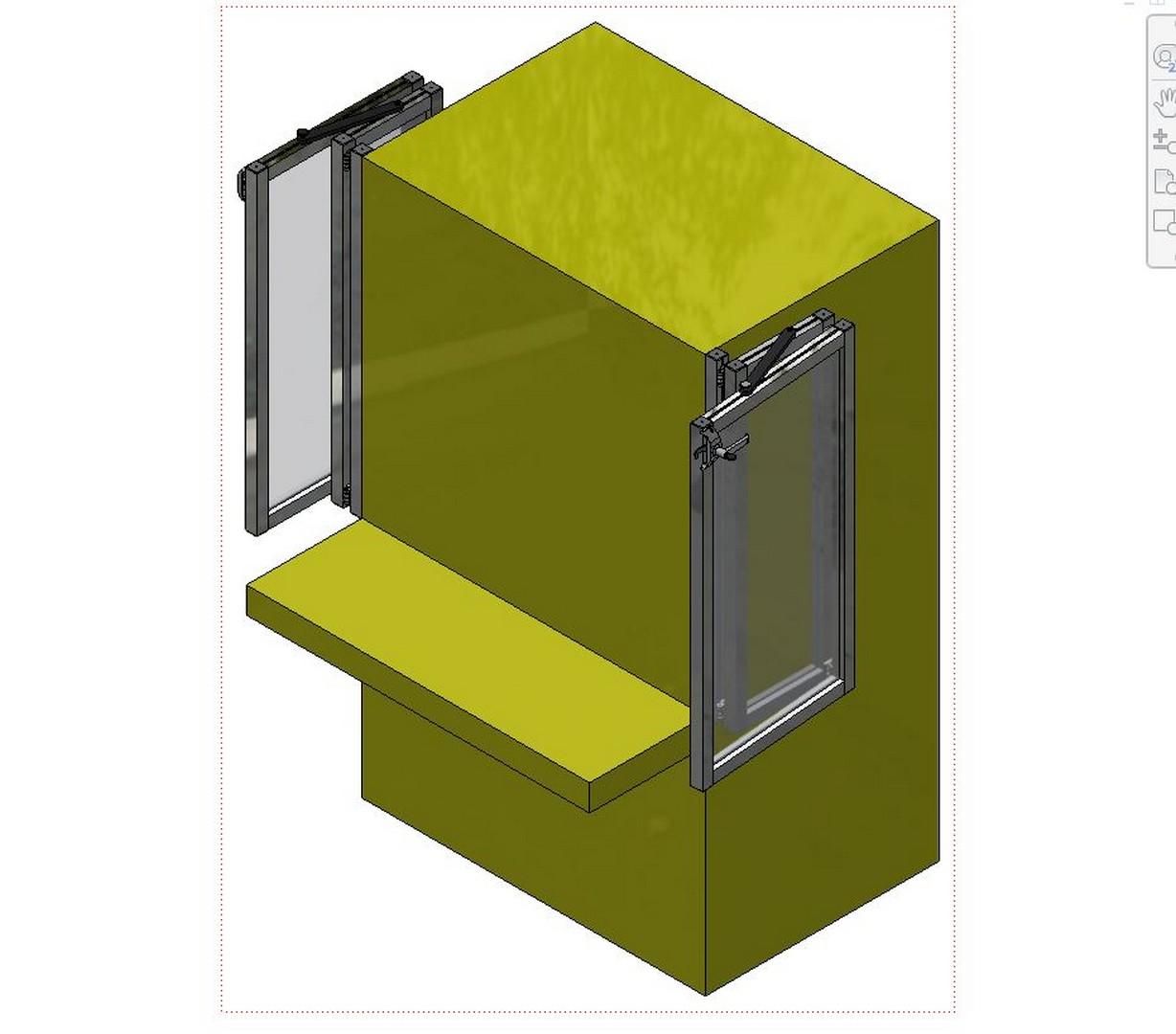

Bi Folding Space Saving Machine Door 4

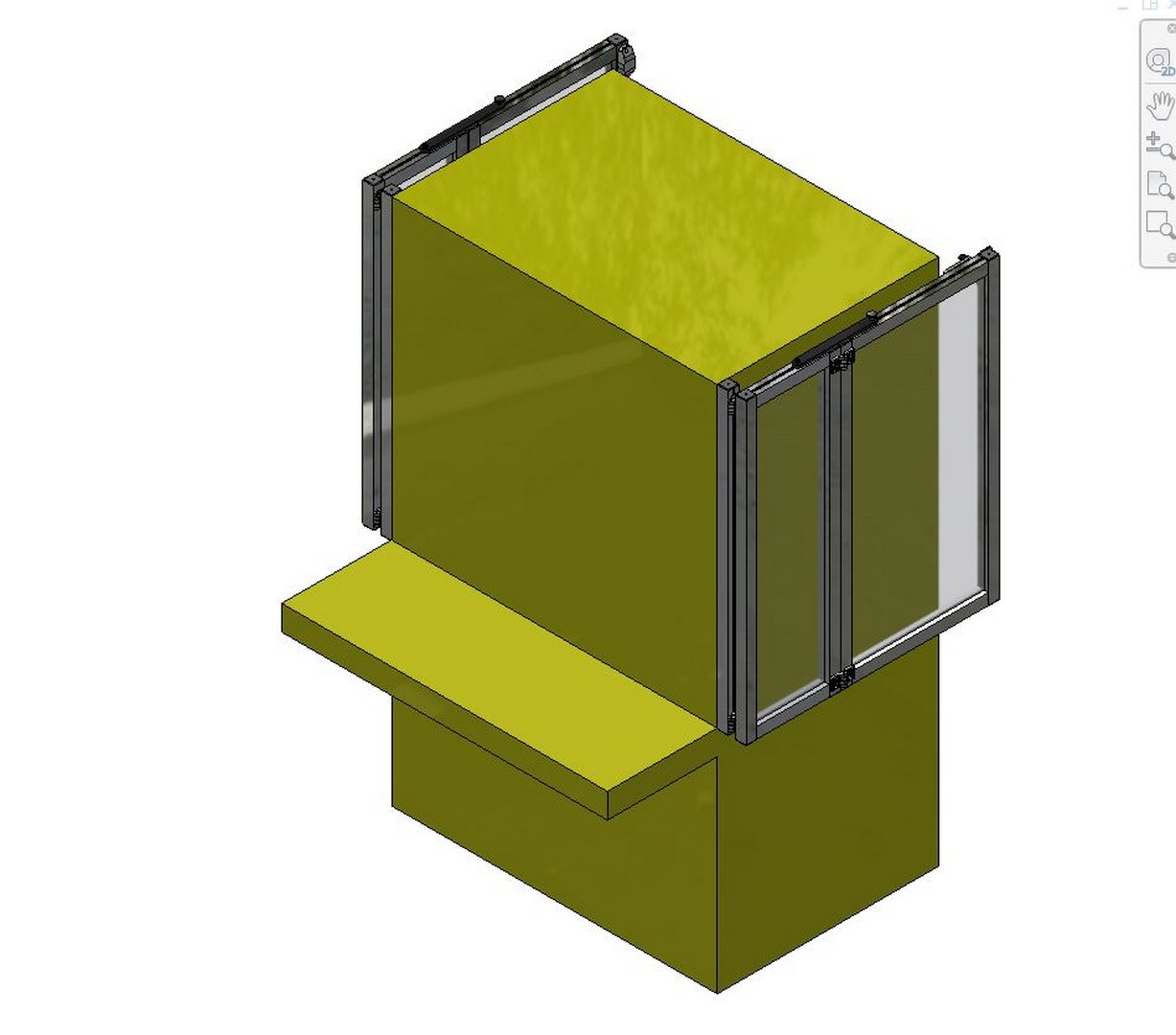

Bi Folding Space Saving Machine Door 5

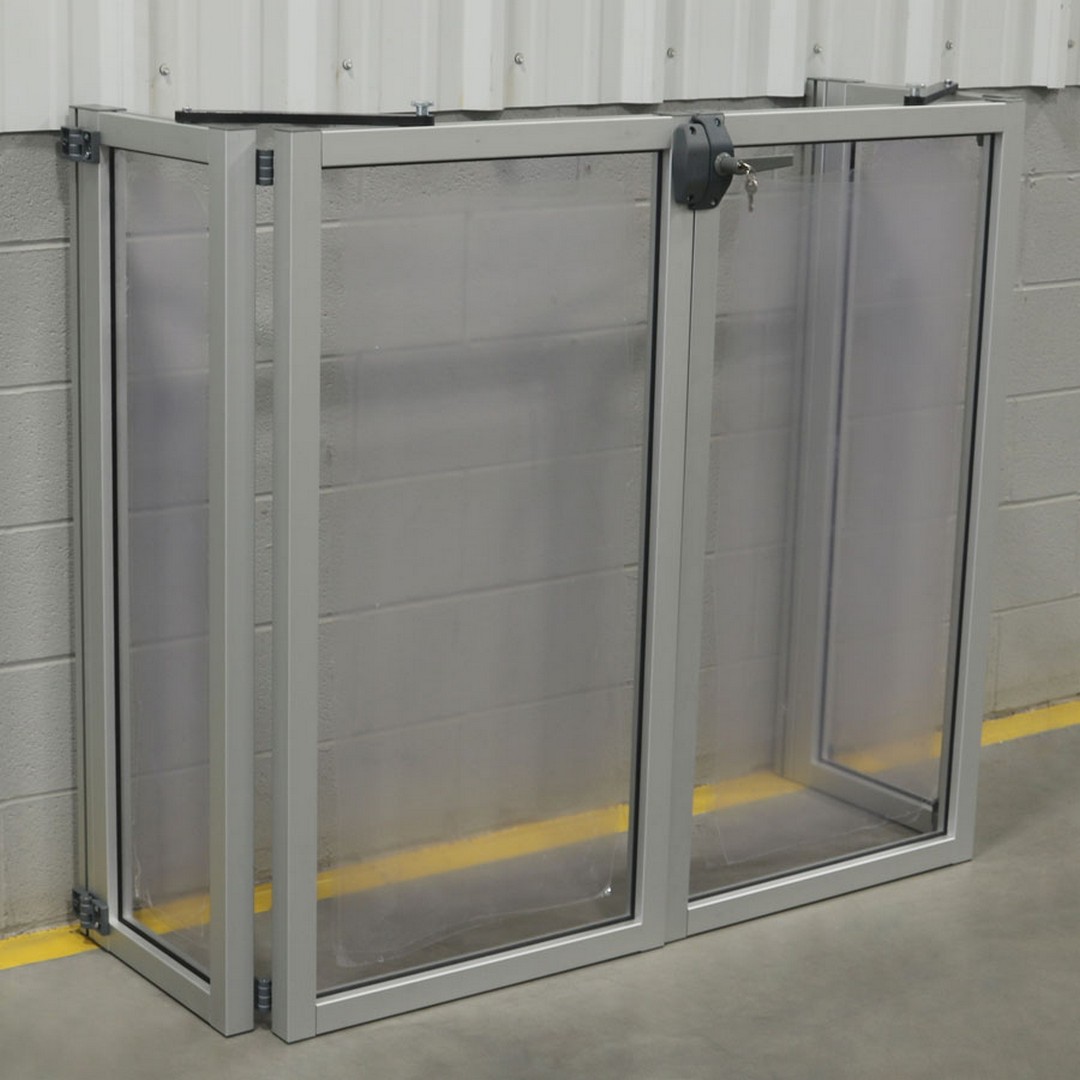

IMG 4049
IMG 4050

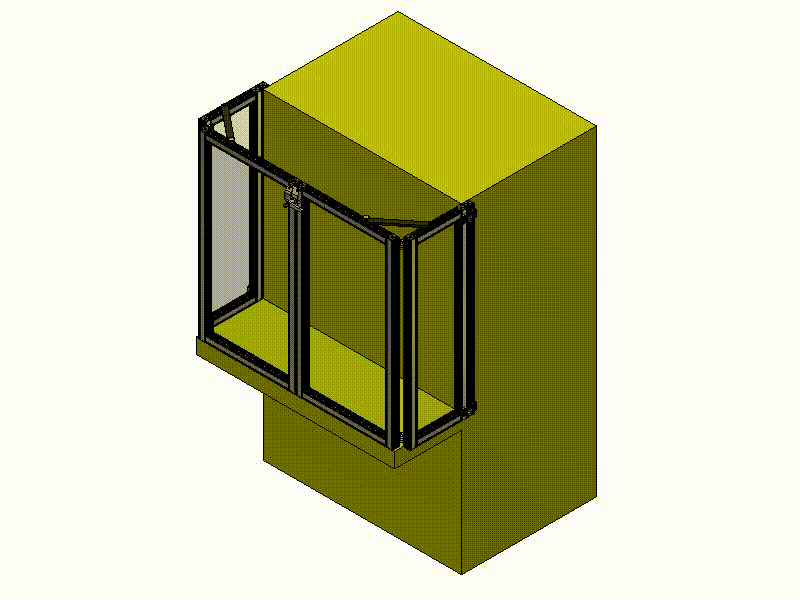

L Shaped Bi Fold Doors
