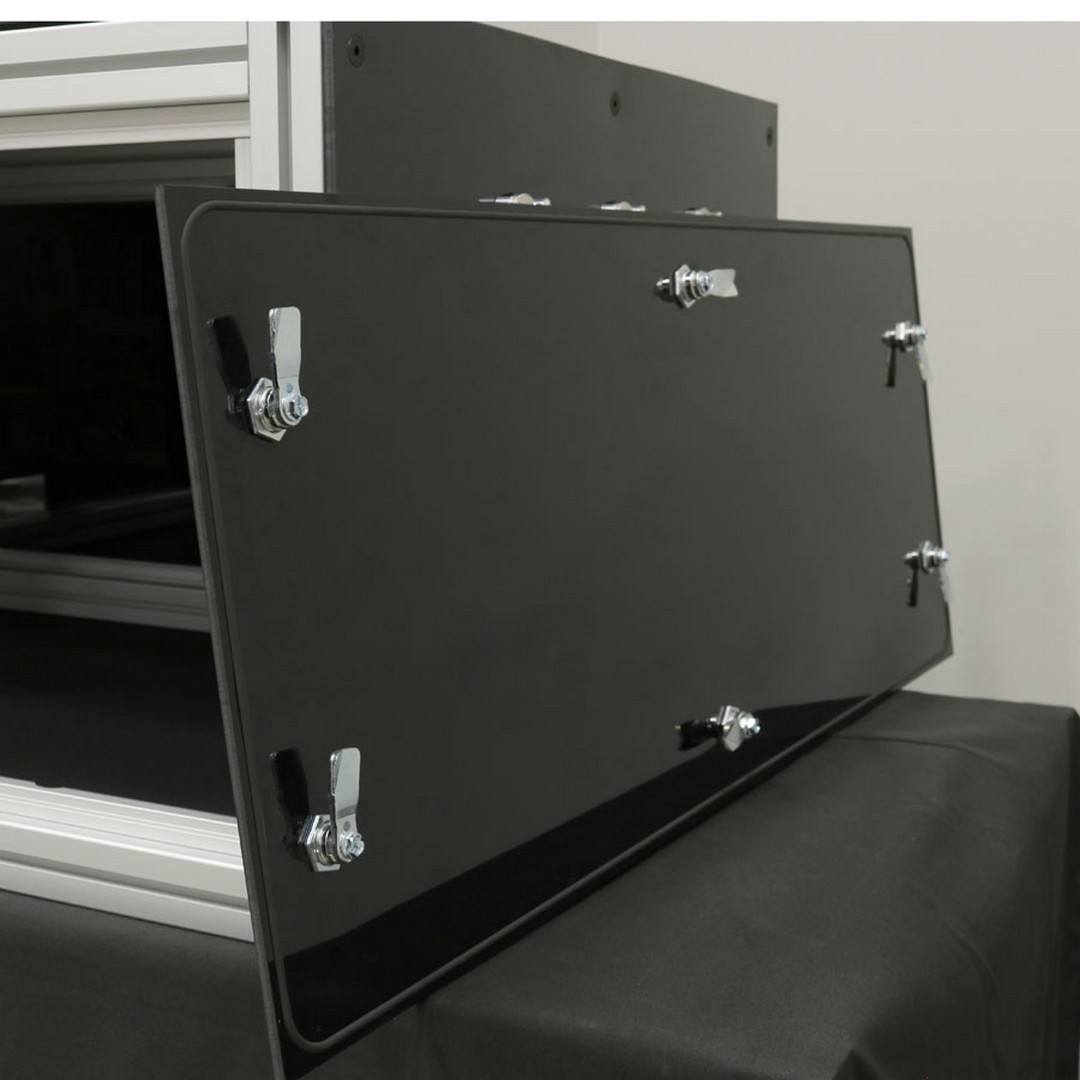

Front & back panels are held on with 1/4 turn wing knobs
Stainless steel cams latch on an aluminum lip made from MiniTec’s 20.1121 Support Profile
Project # AM062323-2

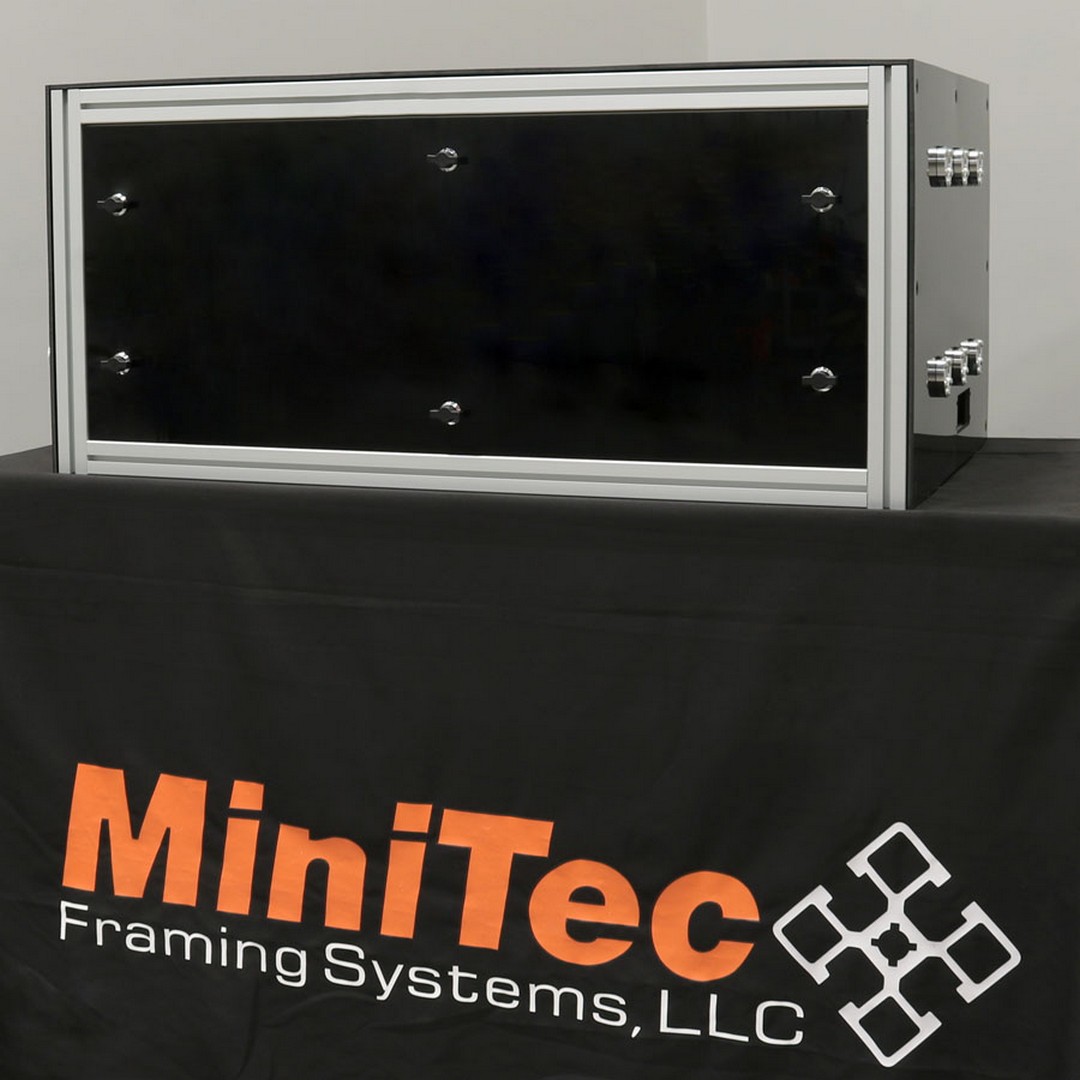

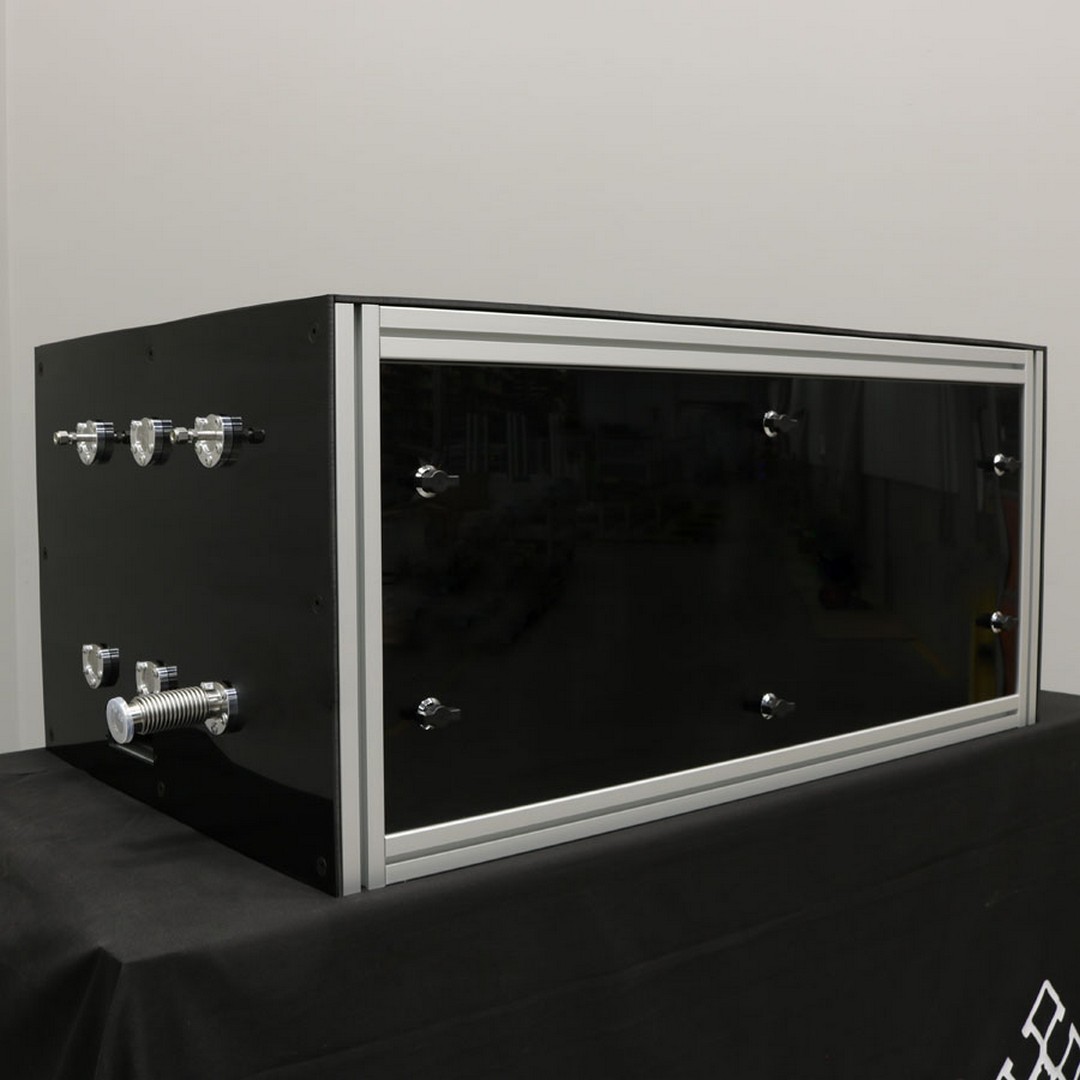

Nitrogen purging is the process of replacing the existing atmosphere with nitrogen. Air is removed from one side of the enclosure while nitrogen is added to the other.
All panels have one or two rings of viton gasket to prevent air flow.

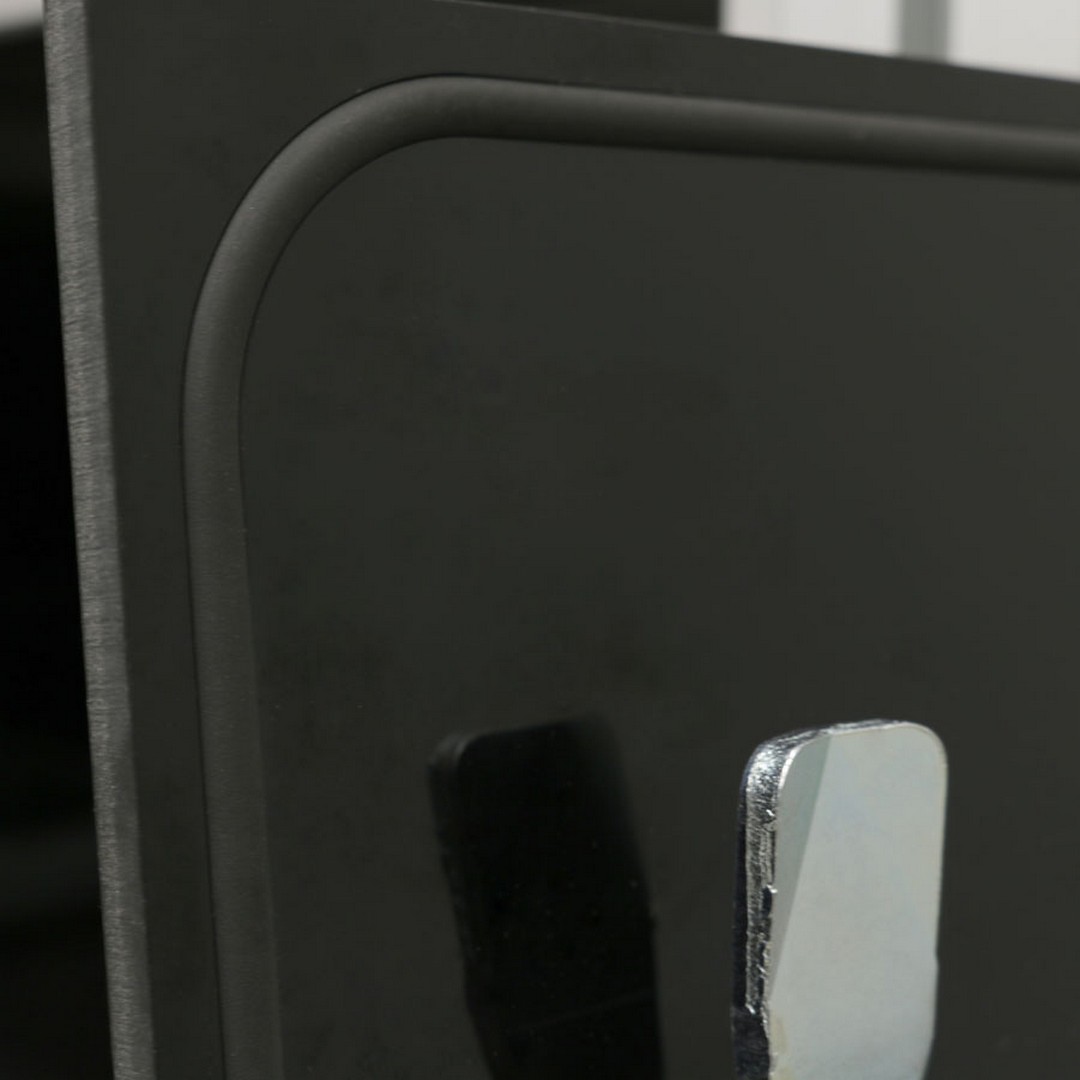

Continuous 3/16″ viton cord pressed in around every panel to prevent airflow

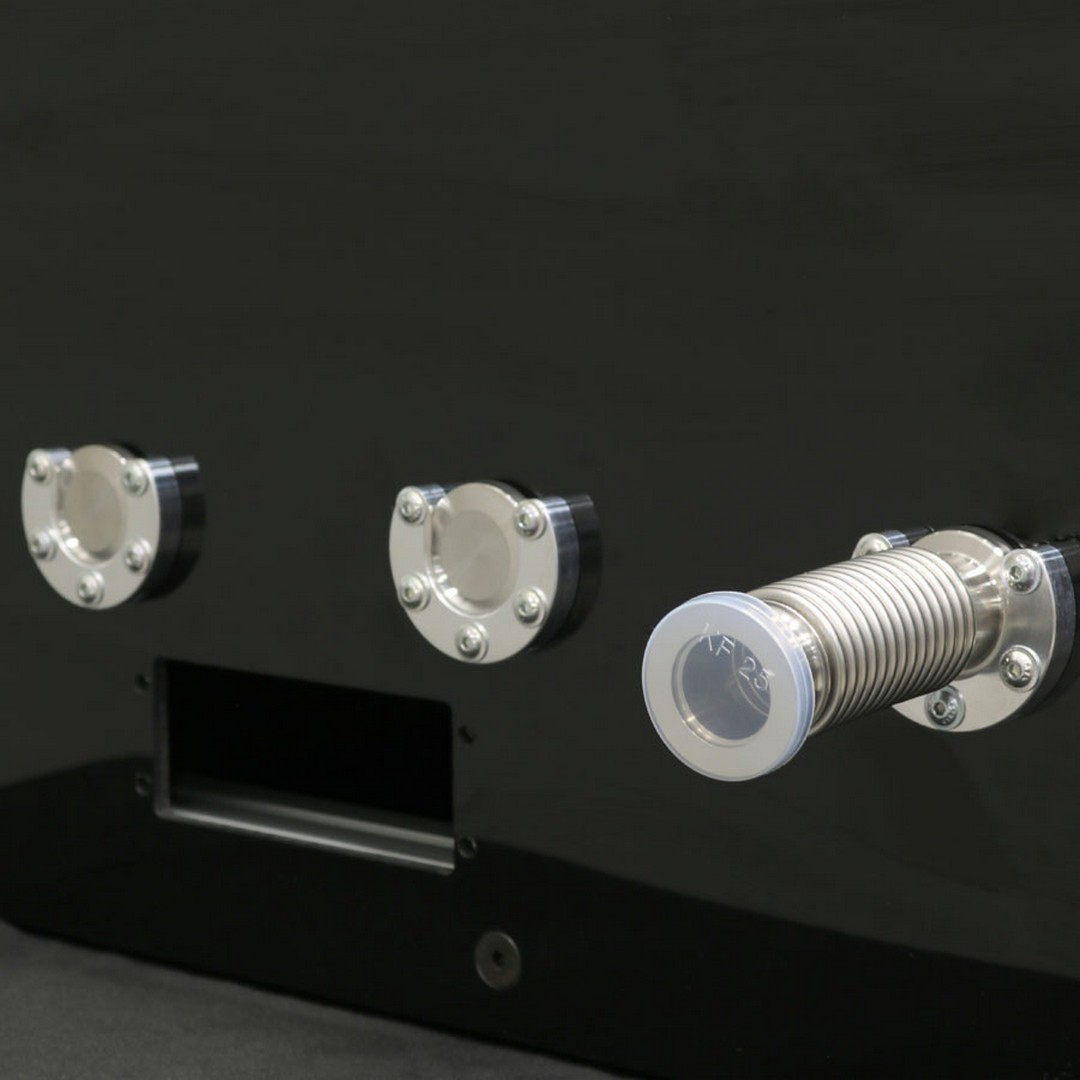

Cut out for 48241_600 IcoTek Specific PN: KEL-ER 24|10 CR (S)VOC Grommet based cable management solution. Clean room qualified
