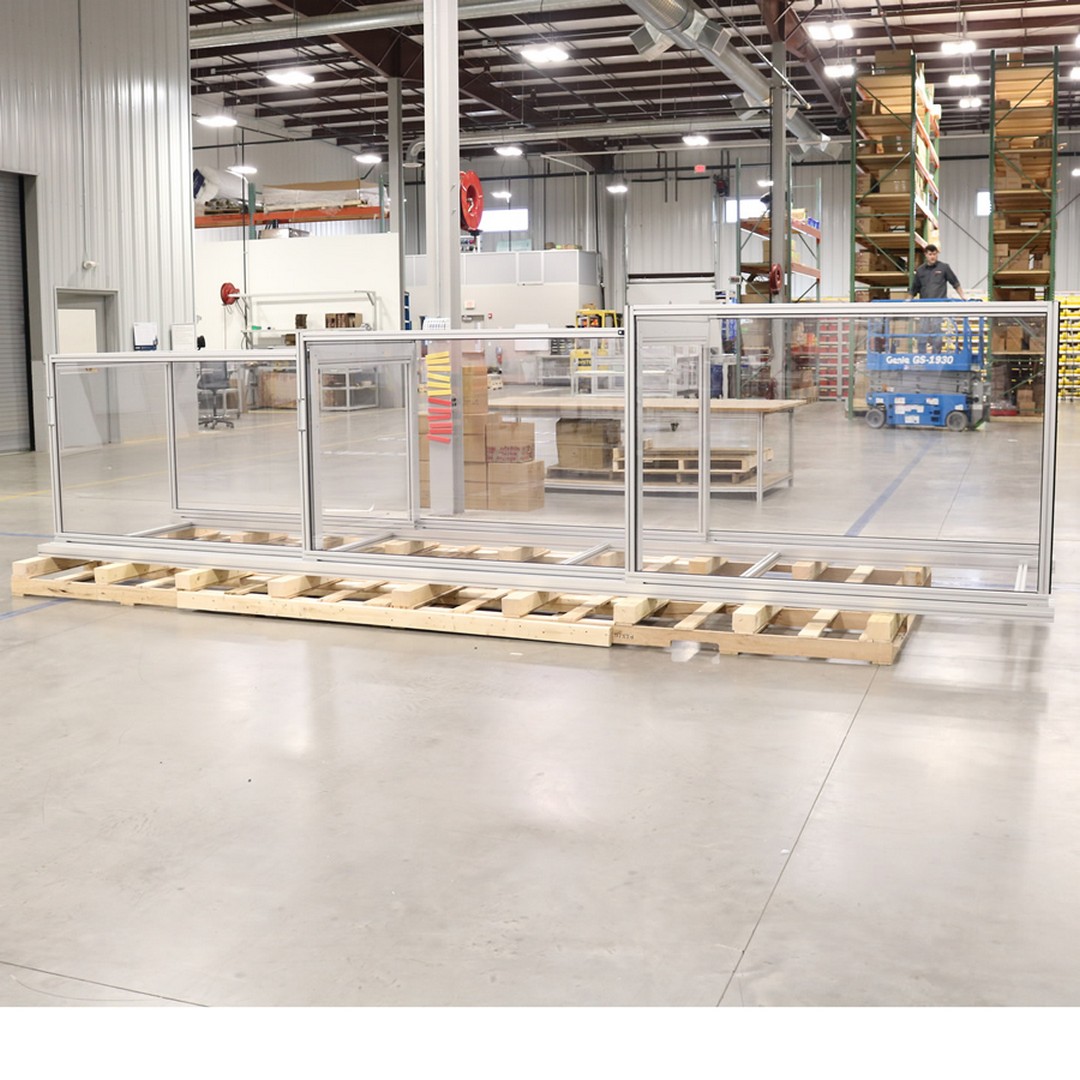

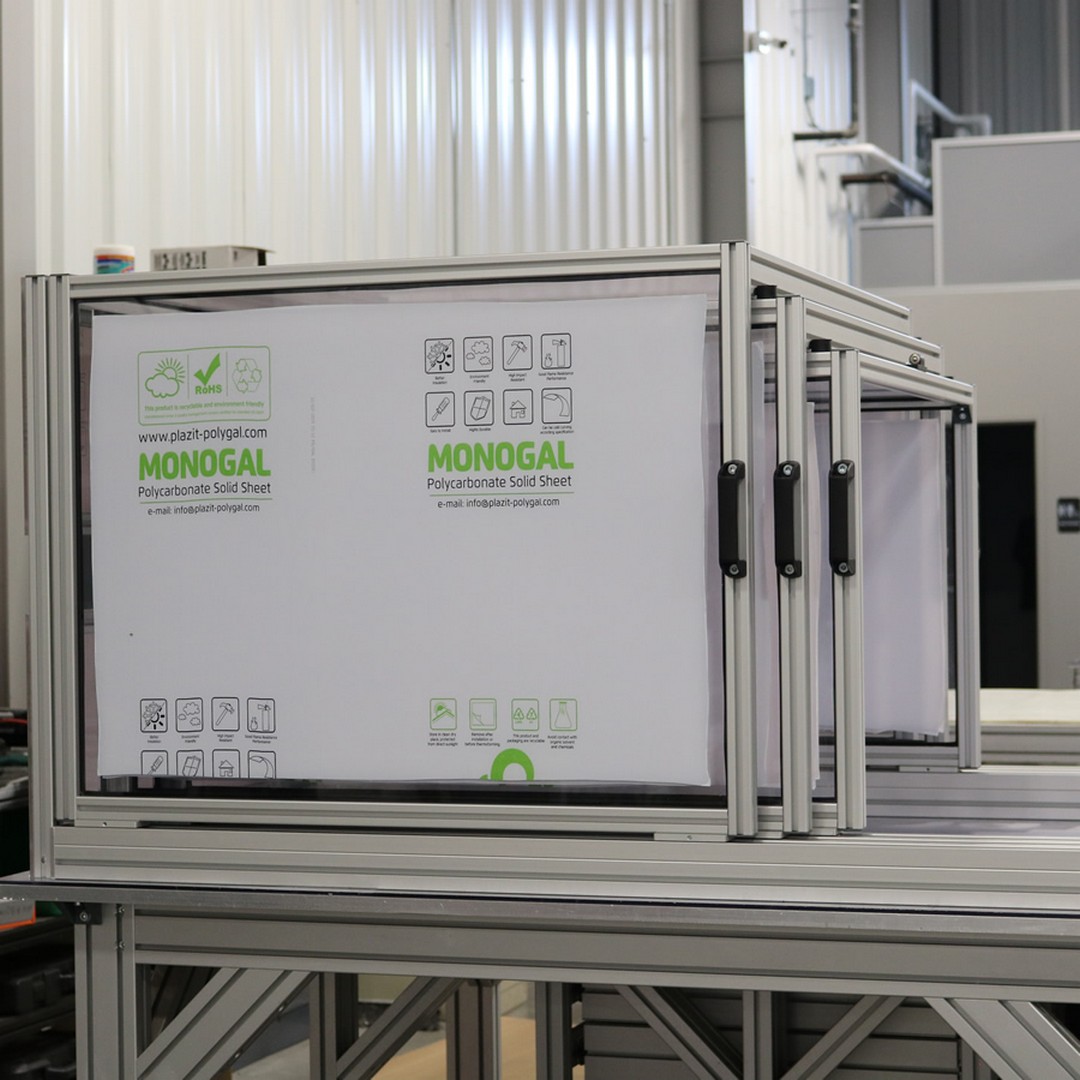

Sliding Tunnel Enclosure

Sliding Tunnel Collapsible Enclosure
Click here for 3D file
Click here to request a quote or more details

Application Details

  • Completely customizable for your application!

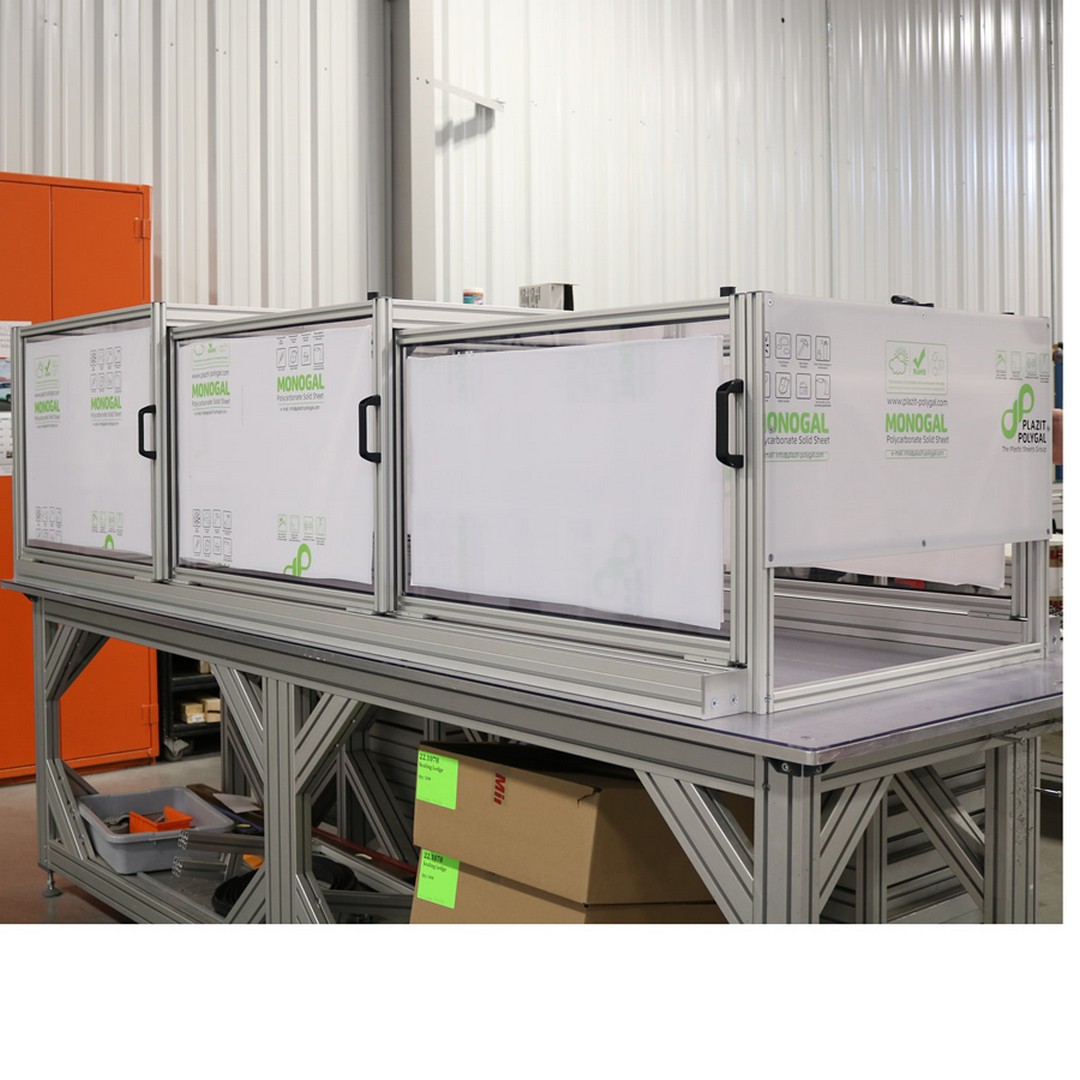

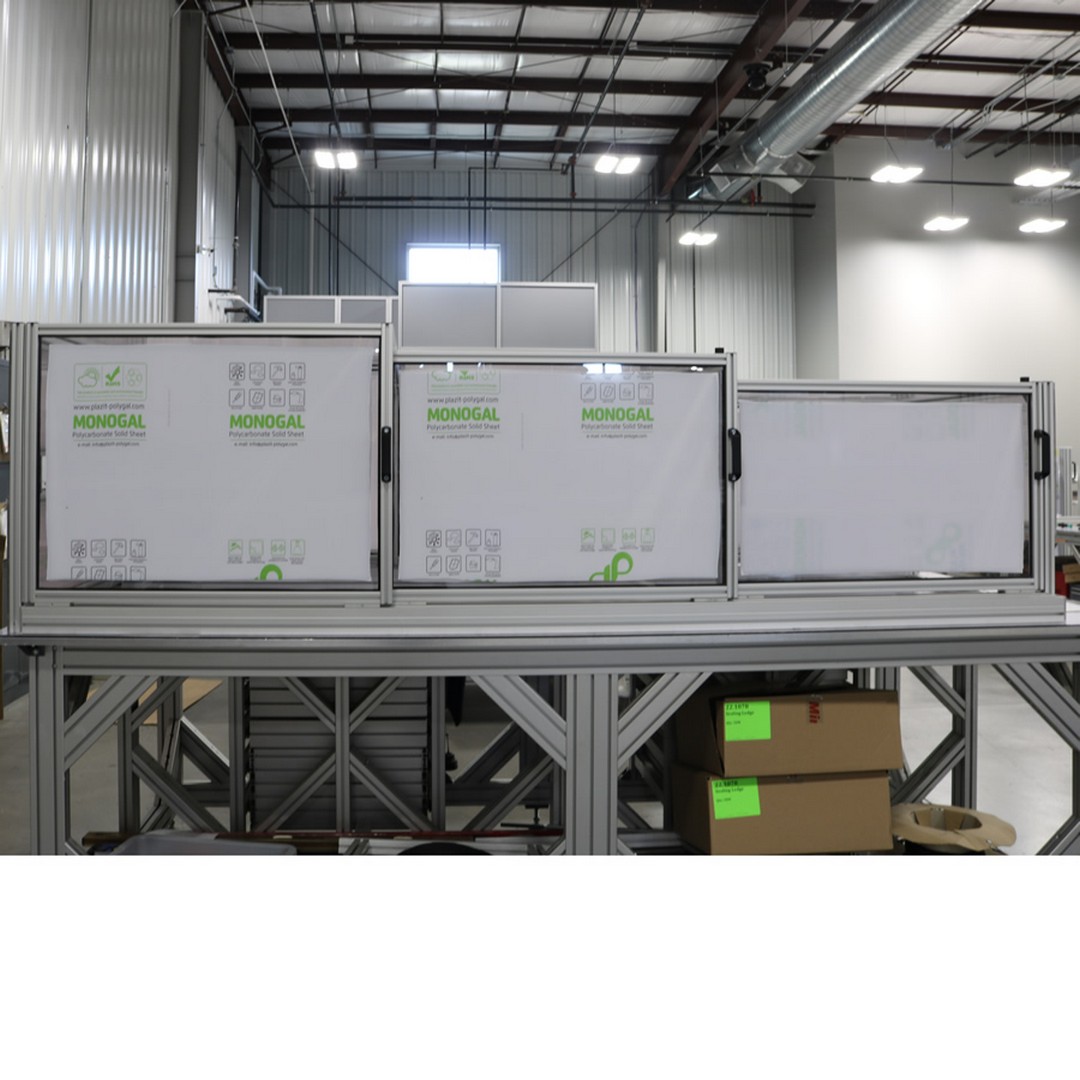

  • Sliding Tunnel Enclosure Made With 30×30 Profile

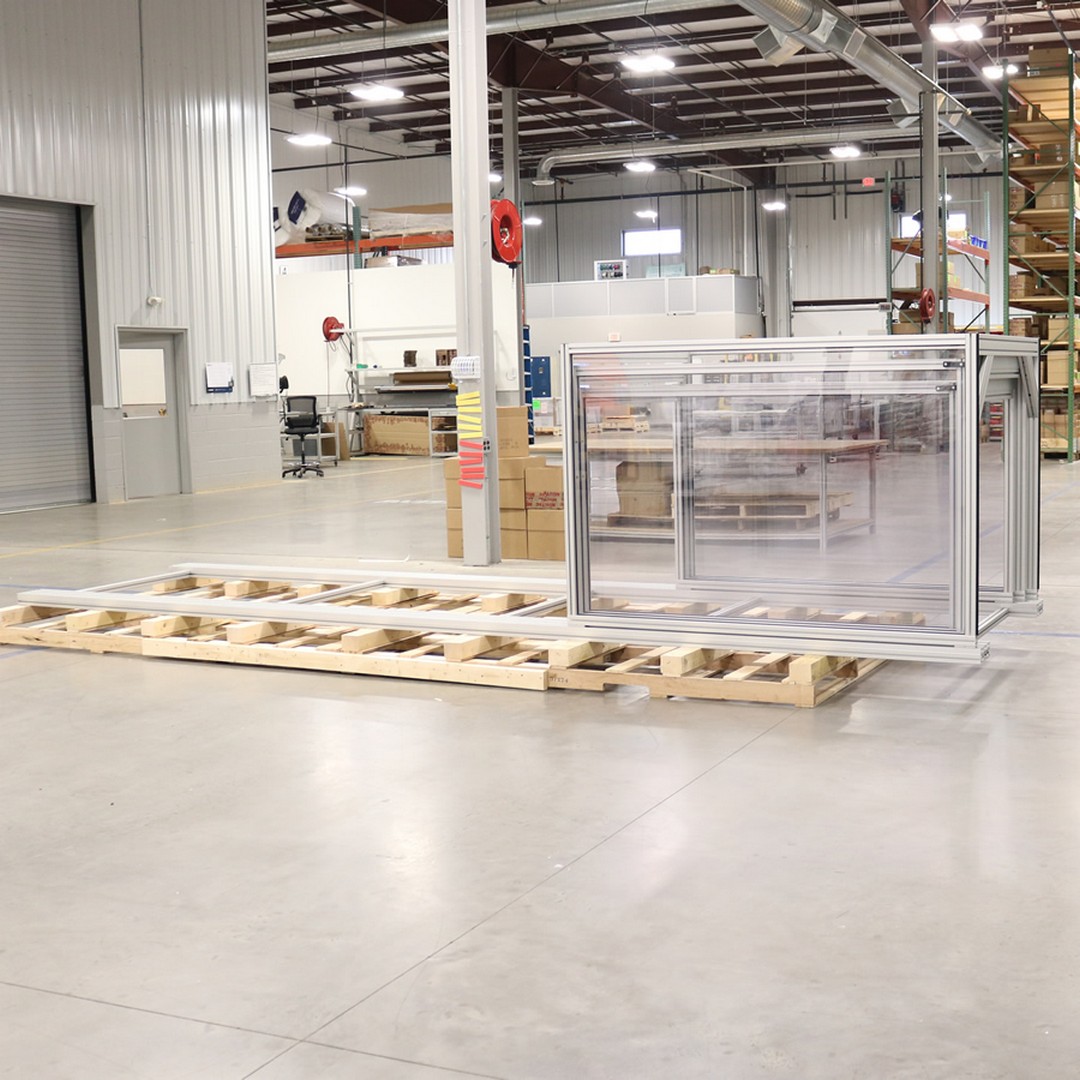

  • Each Tunnel Slides Into The Next
  • All 3 Tunnels Slide Allowing Full Access To All Sides Of Machine At Any Location
  • Approximately Two Thirds Of The Machine Can Be Open Anywhere
  • Collapsible sliding door enclosures is ideal when unobstructed access to all sides of the machine are needed. Often used to enclose lathes.
  • Project MH012820-1
  • Tunnel Enclosure Made With 45×45 Series Doors

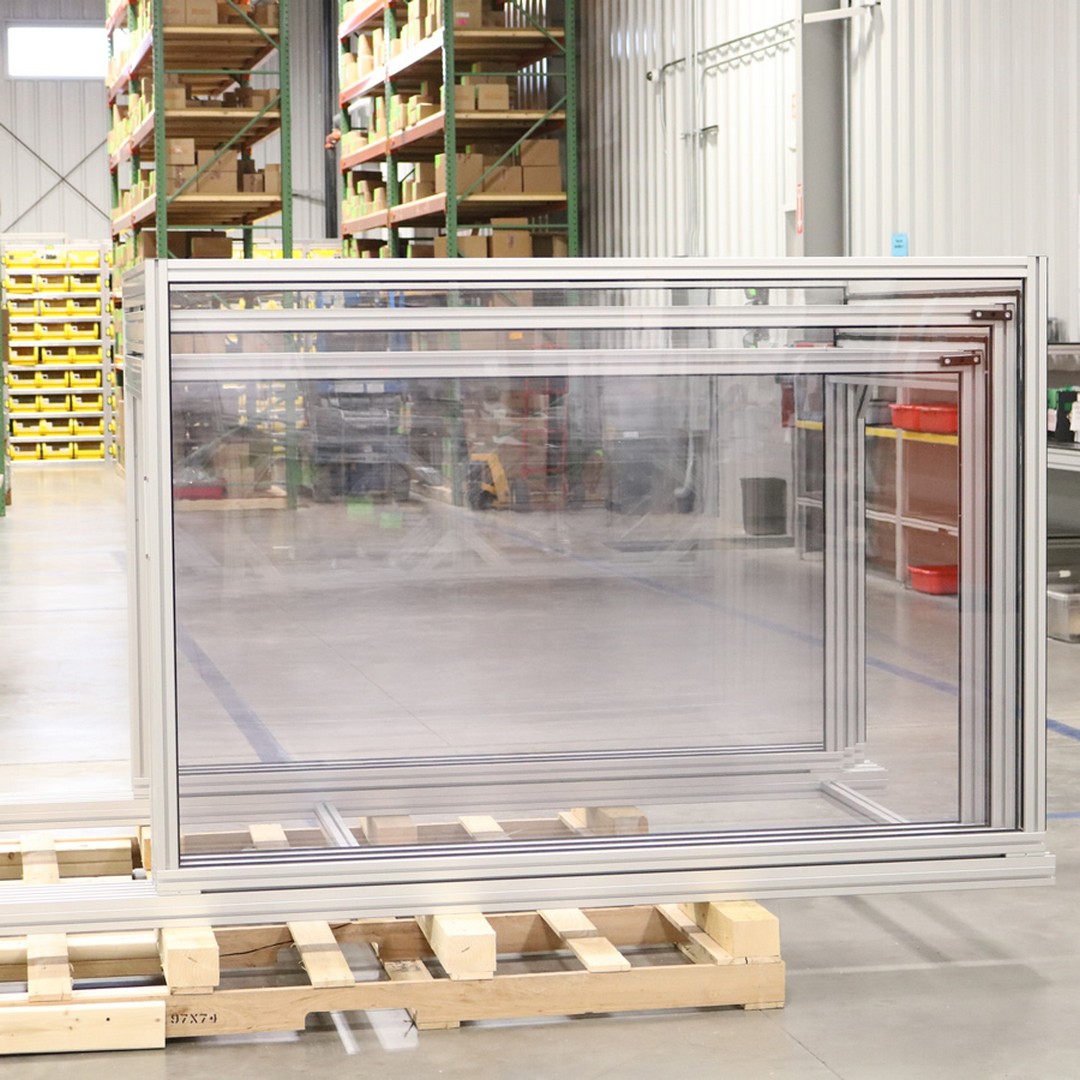

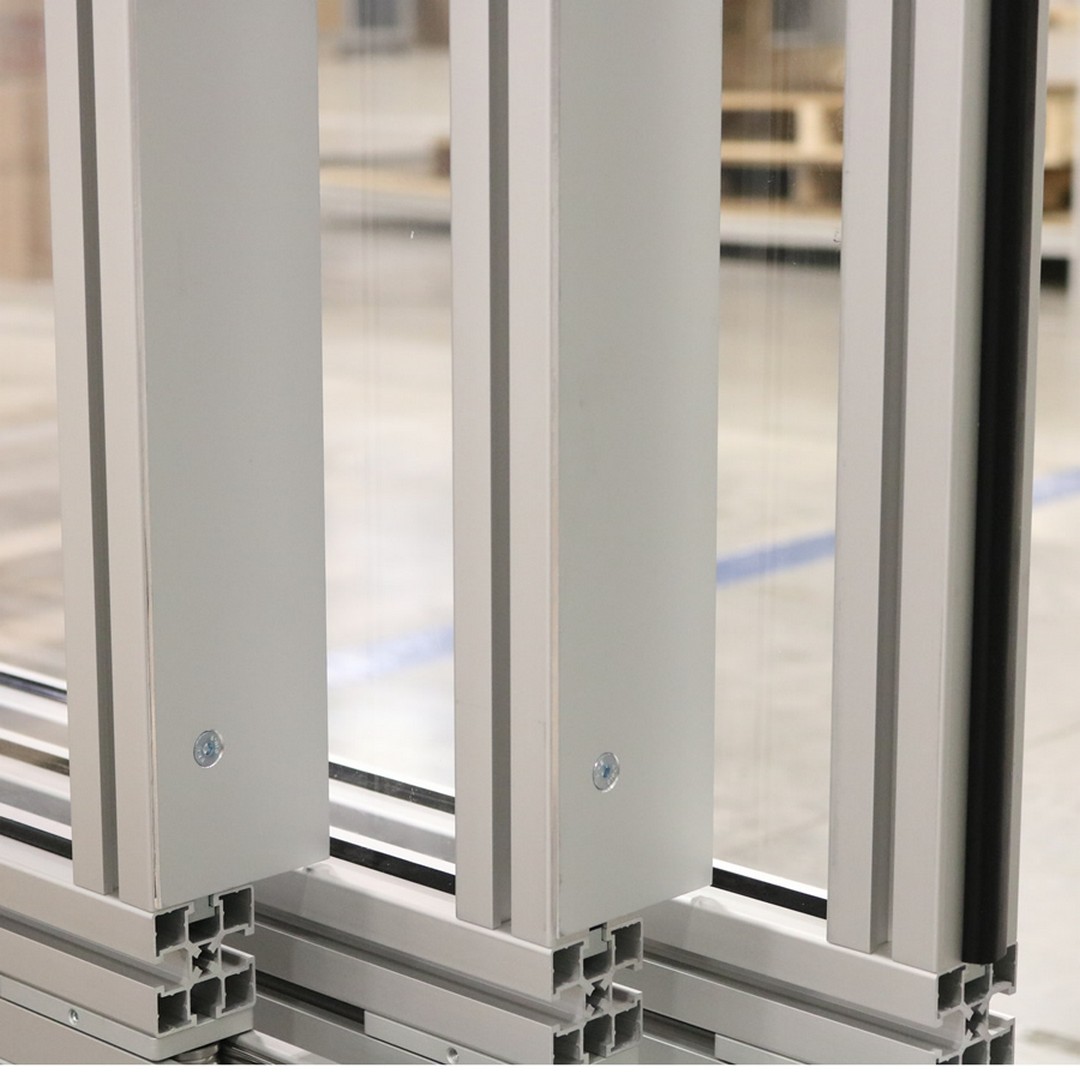

  • Tunnel Doors Nest Inside Each Other
  • Flaps On Tunnel Ends Fill All Gaps When Closed

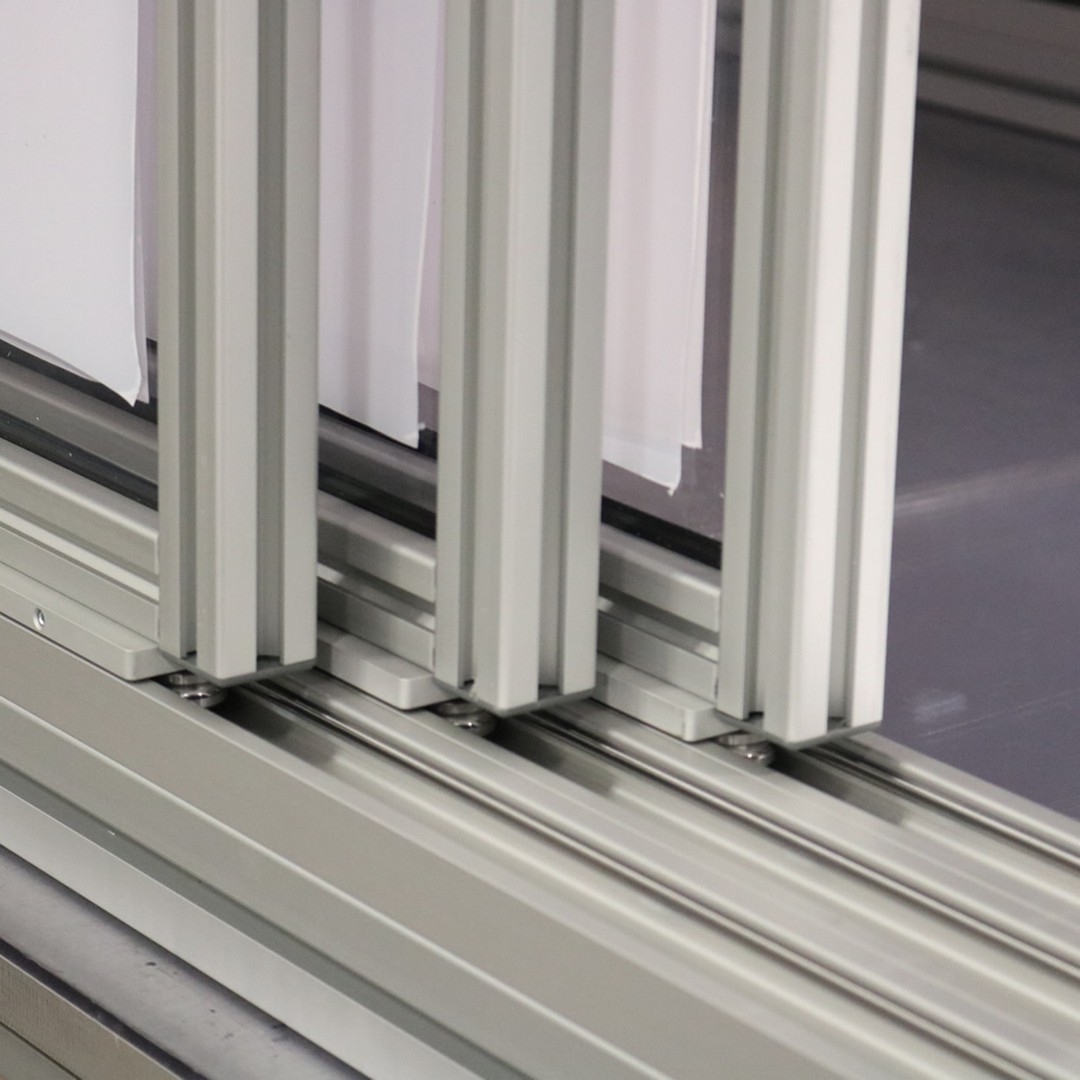

  • 30 Series Doors On Ball Bearing Guides
  • 45 Series Doors On LR6 Compact Linear Slides
  • Door Flaps Seal And Catch Each Other So Doors Can Be Opened & Closed In Unison

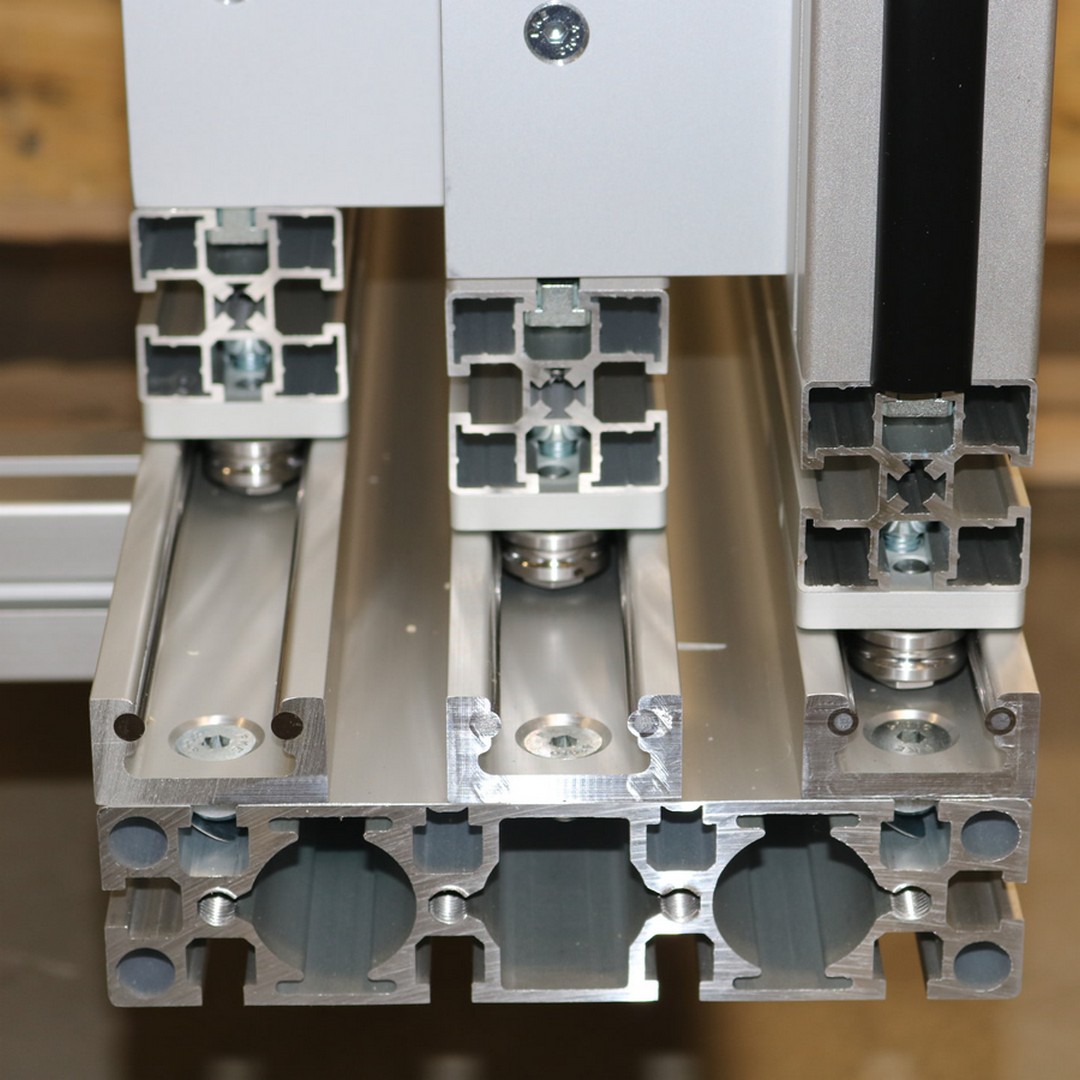

  • 3 LR6 Compact Rails On Both Sides Of Tunnel

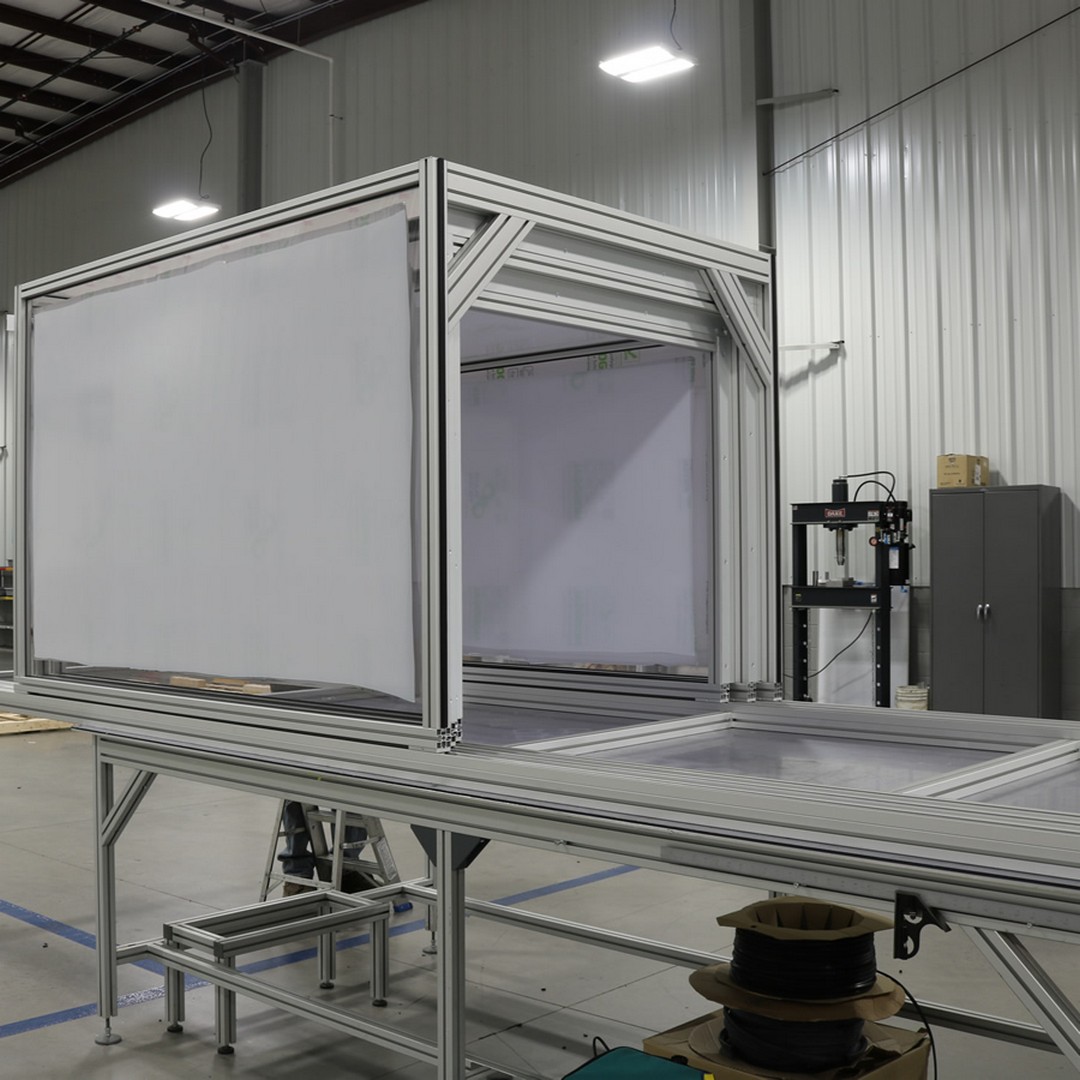

Sliding Tunnel Enclosure 4
Sliding Tunnel Enclosure 5
Sliding Tunnel Enclosure 7
Sliding Tunnel Enclosure 8

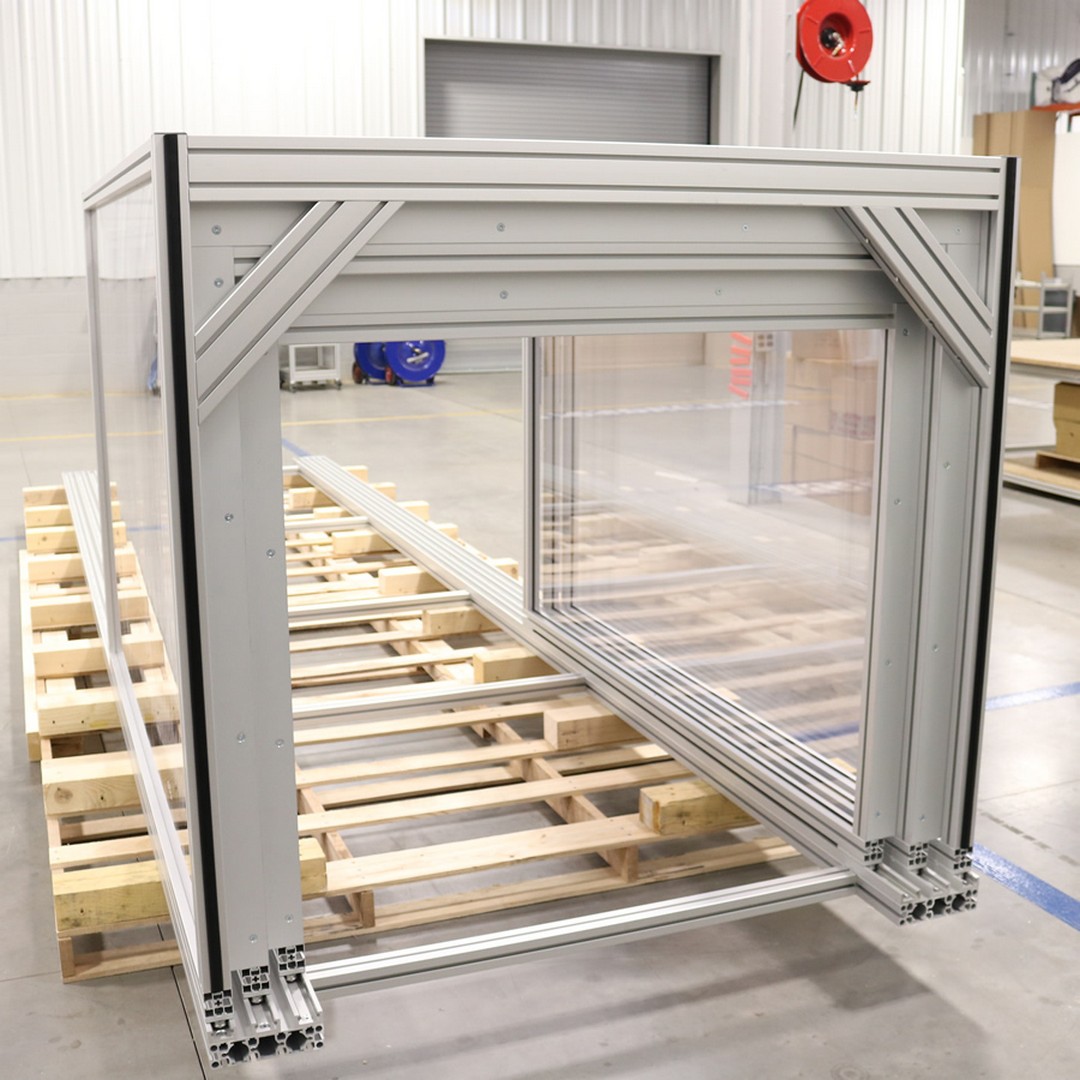

Sliding Tunnel Enclosure 9
Sliding Tunnel Enclosure 10
Sliding Tunnel Enclosure 11
Sliding Tunnel Enclosure 12

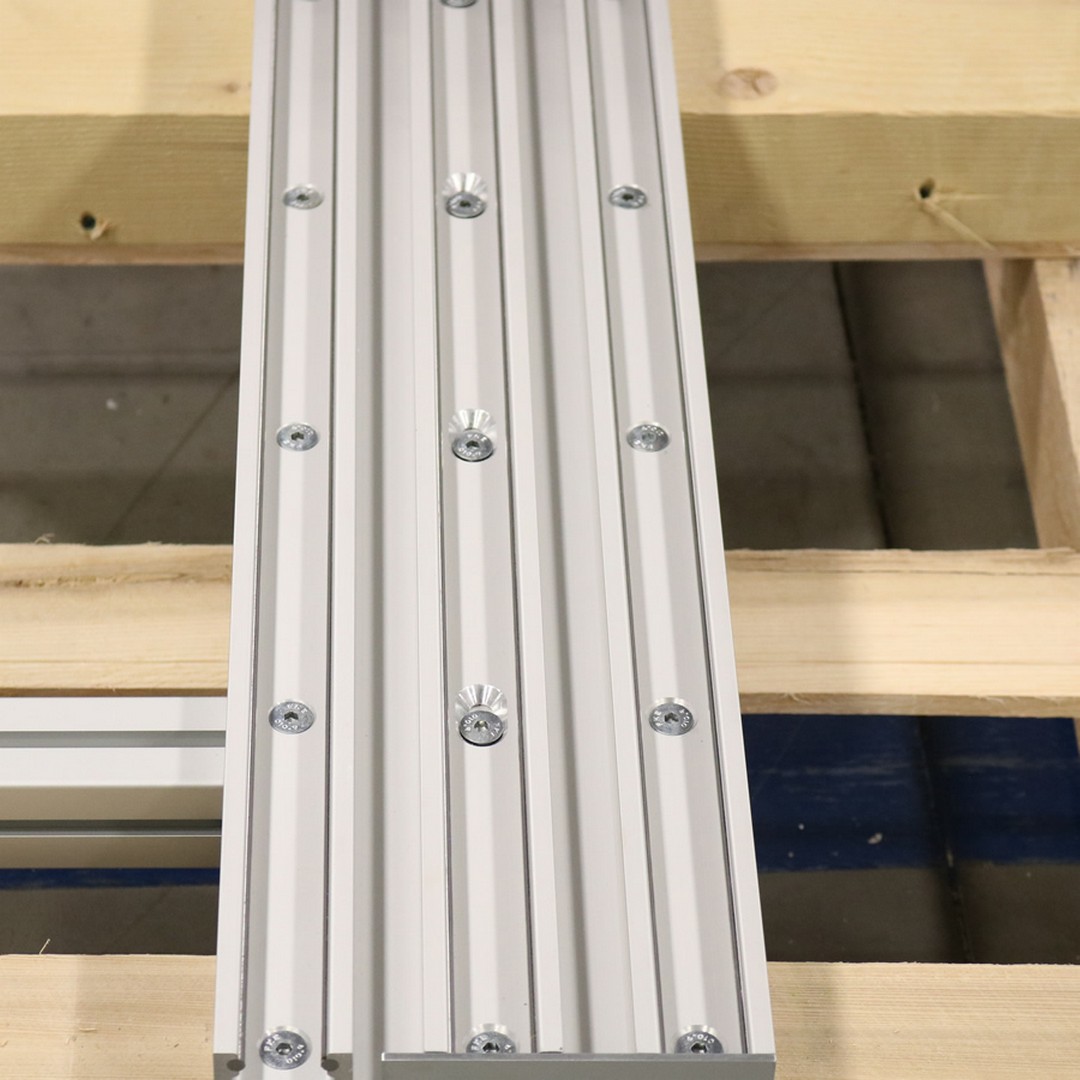

Sliding Tunnel Enclosure 13
