Inspection Workstation With Back Lit Table Top

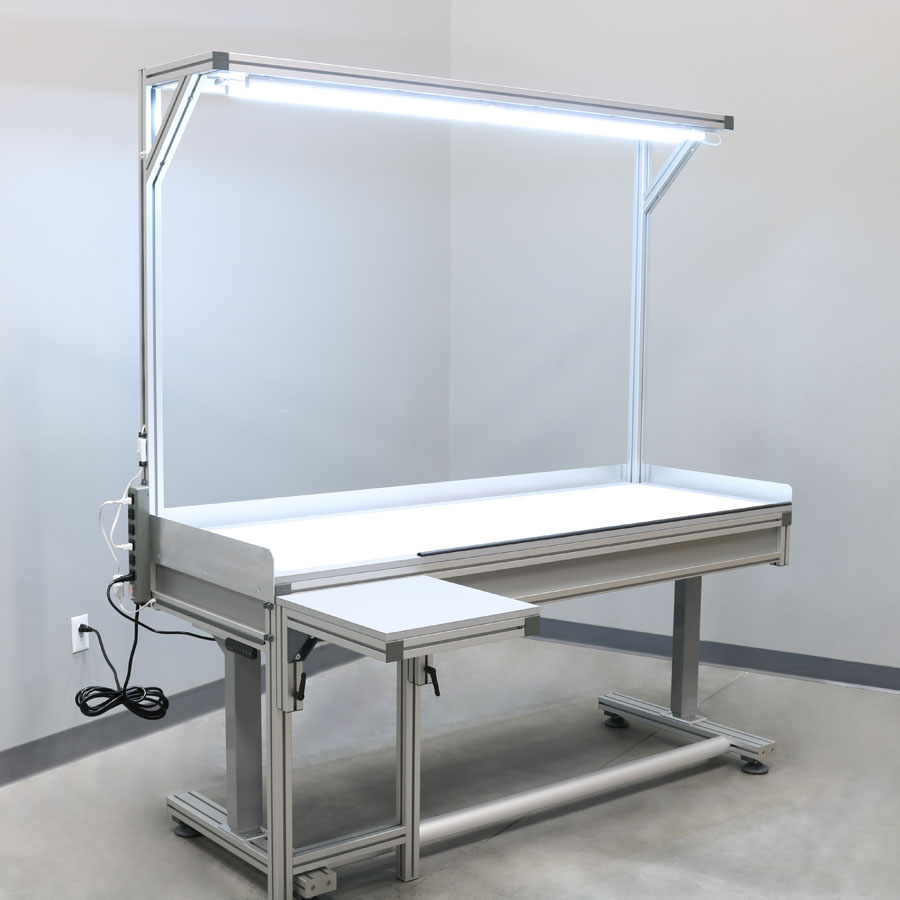

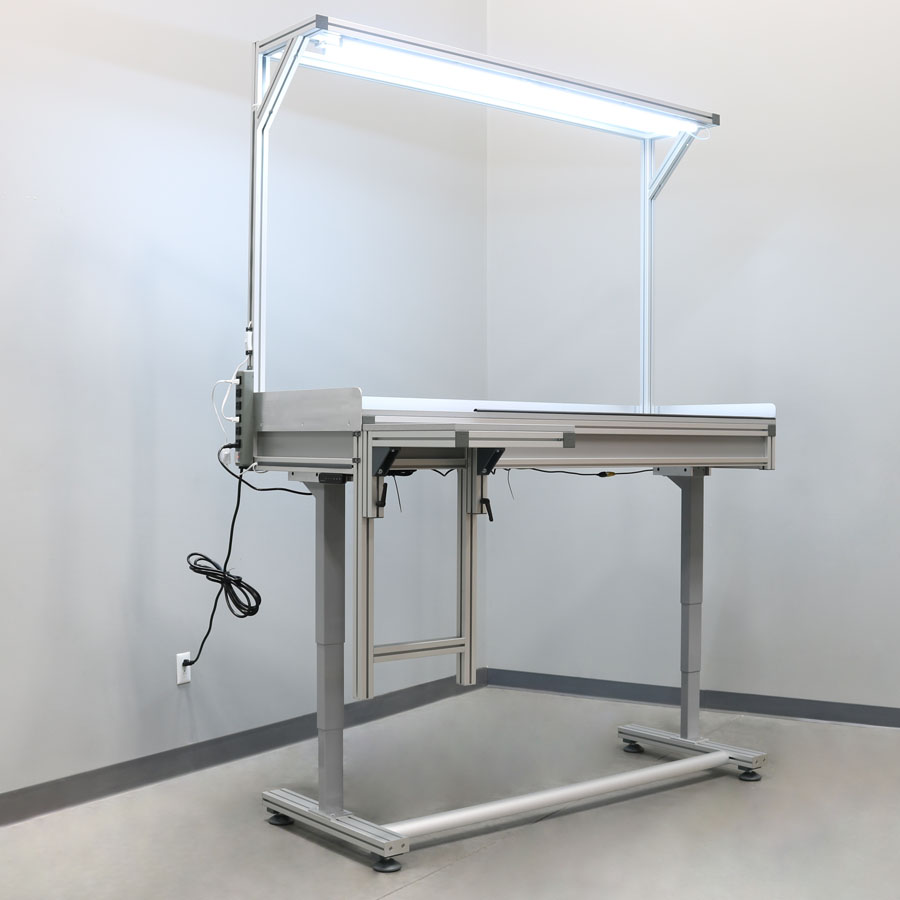

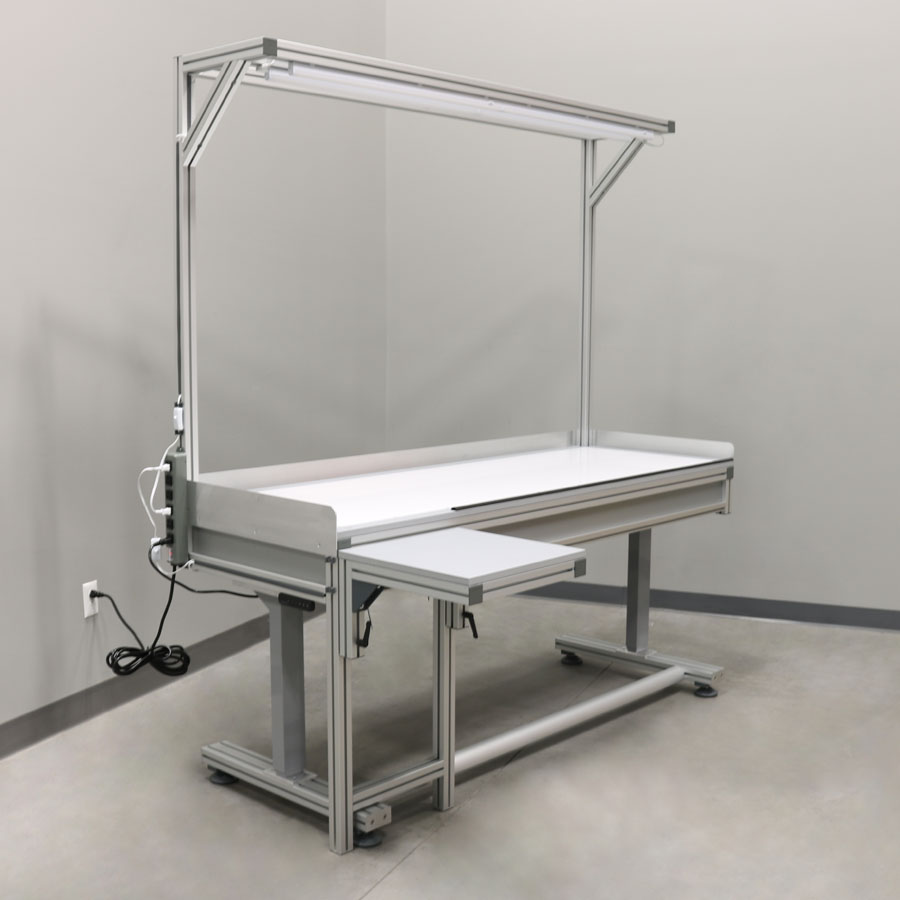

Height adjustable back lit inspection workstation.
Click here for 3D file
Click here to request a quote or more details

Application Details

  • Completely customizable for your application!
  • Enclosure Below Table Top Has Several Rows Of Bright White Light LED’s
  • Table Top Made From Translucent Table Too Made From 3/16″ Thick 7328 White Acrylic

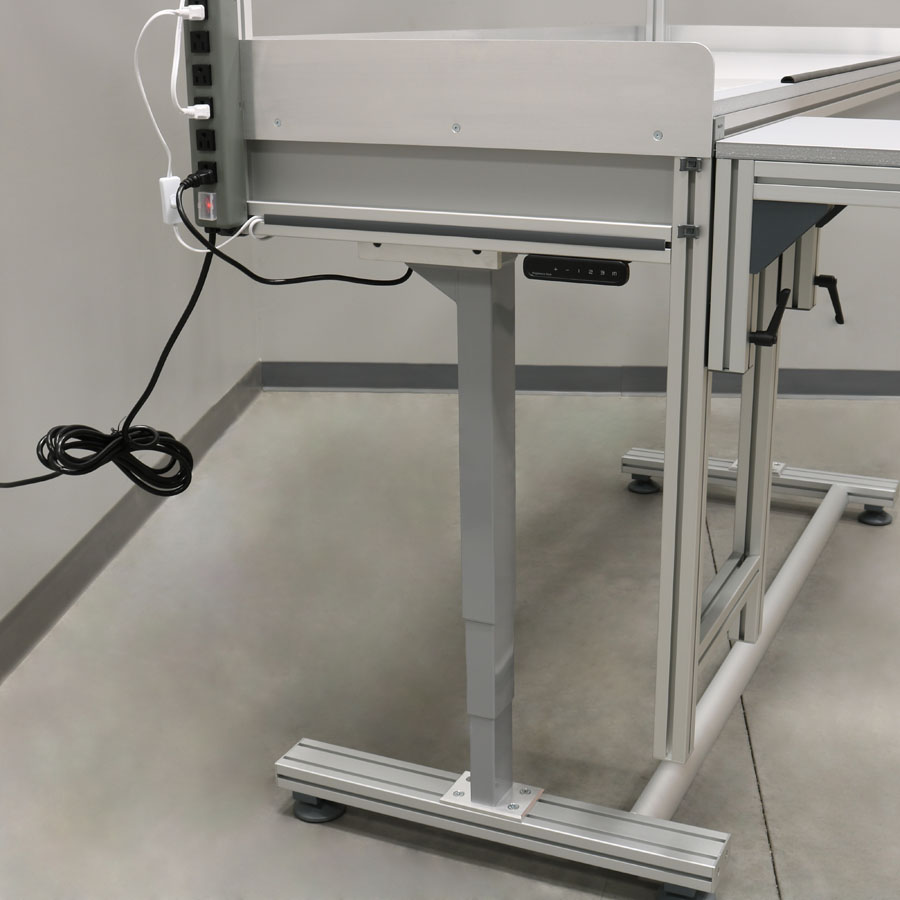

  • Electromechanical Lifts For Use In A Clean Room
  • Parts to be inspected sit in a box on the height adjustable side tray.
  • Project file JZ120318-1
  • Back & front lighting to help expose all impurities.
  • Click here to download a solid model in step format

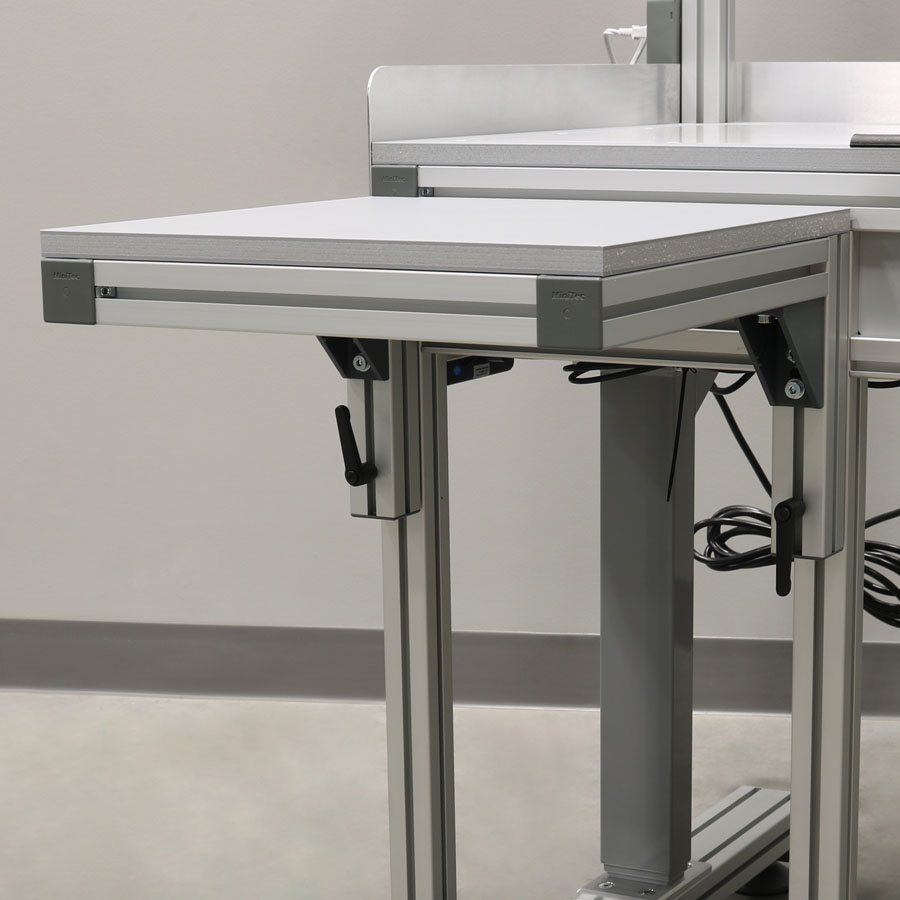

  • Side Shelf Moves With Table Top But Can Be Adjusted To Different Heights With Respect To The Table Top

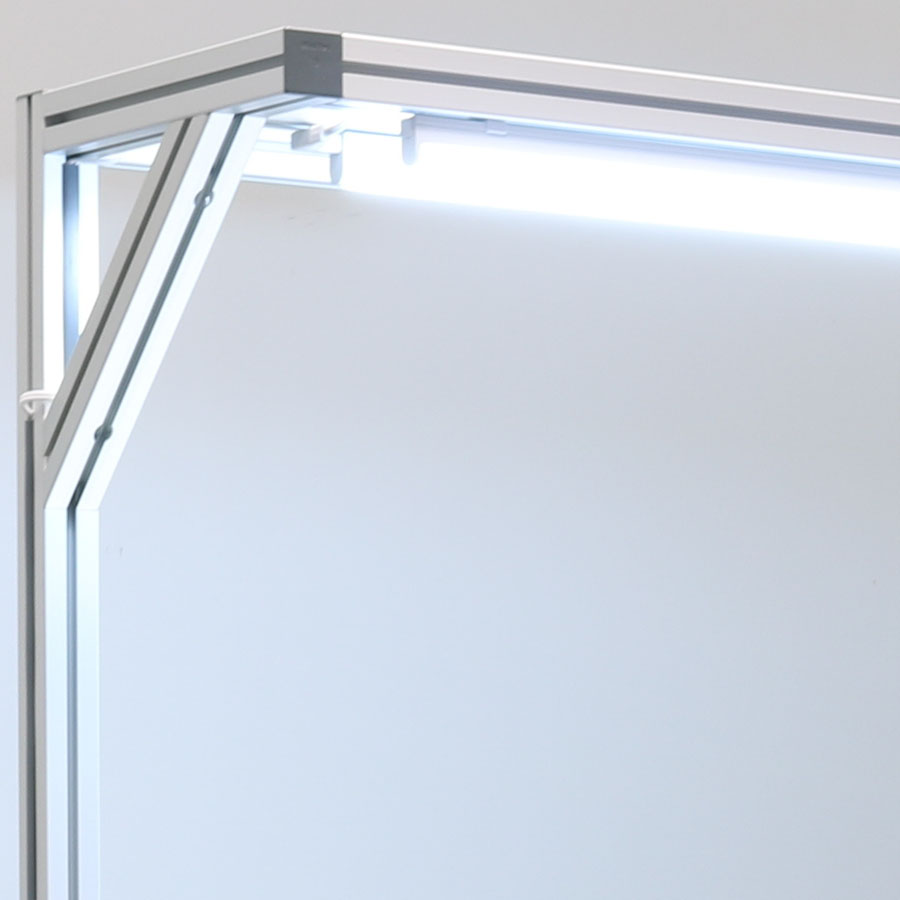

  • Bright White Overhead Lighting

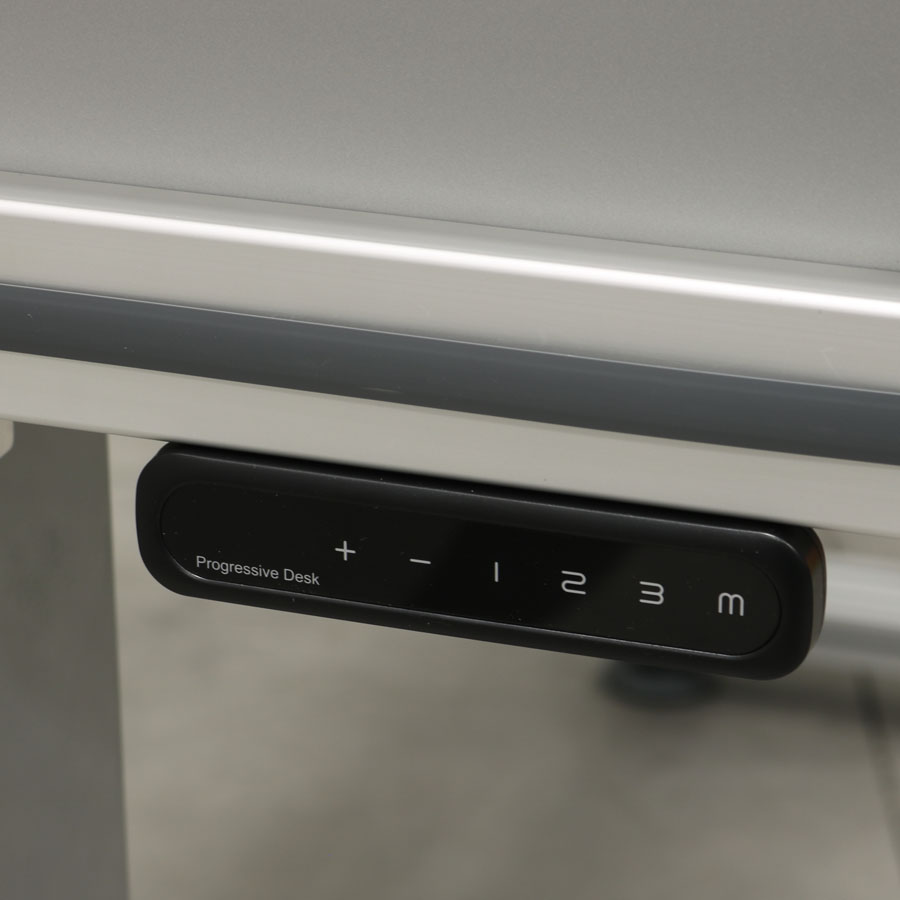

  • Height Control With Programable Height Settings
Workstation With Back Lit Table Top & Electromechanical Lift 4
Workstation With Back Lit Table Top & Electromechanical Lift 5
Workstation With Back Lit Table Top & Electromechanical Lift 6
Workstation With Back Lit Table Top & Electromechanical Lift 7
Workstation With Back Lit Table Top & Electromechanical Lift 8
