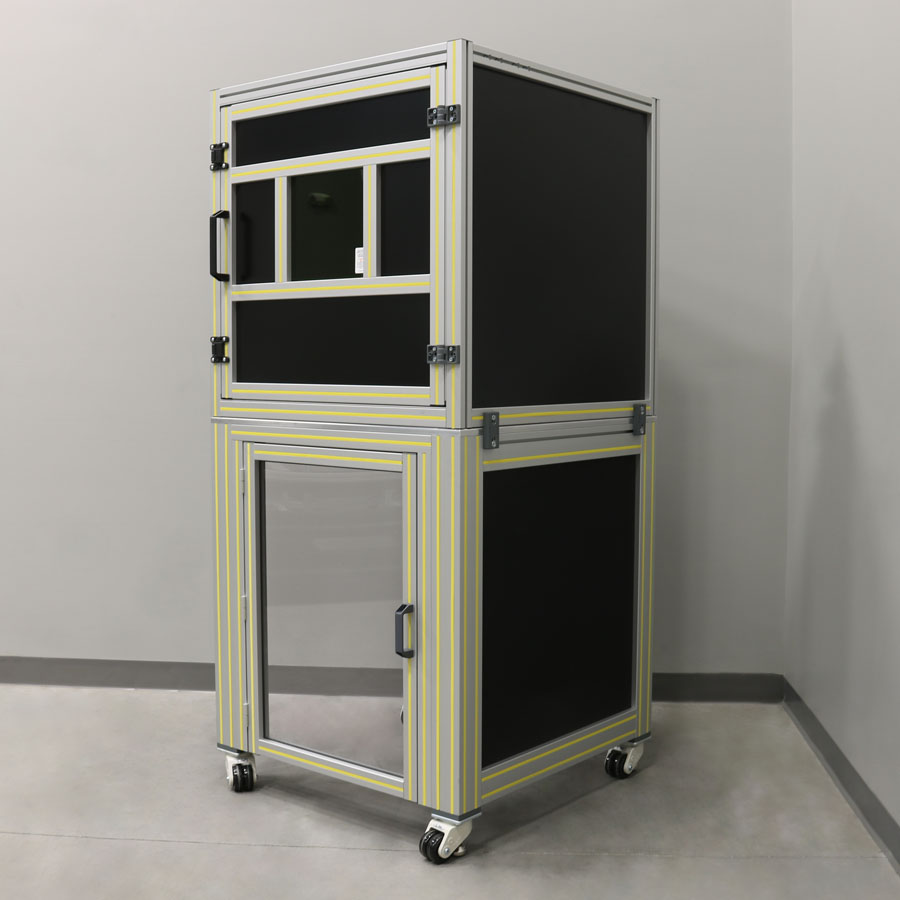

3′ x 3′ x 3′ Laser Enclosure With Optional Cart

Cost Of Enclosure Is $5120 &Lead Time 4 Weeks
Click here for 3D file
Click here to request a quote or more details

Application Details

  • Completely customizable for your application!
  • The Enclosure Comes Ready To Bolt Down Or MiniTec Can Build You A Base To Your Specifications
  • T-Slotted Aluminum Frame Construction With Optional Yellow Channel Inserts
  • Panels are 1/4″ Painted Black, Aluminum Composite
  • KENTEK – ACRX-6NDY 12″X12″ Viewing Window
  • Panels Are Enclosed In The Slots & Held In With Rubber Gaskets
  • Bottom Of Enclosure Is Open. A Bottom Panel Can Be Added Upon Request
  • Project # MH032624-1

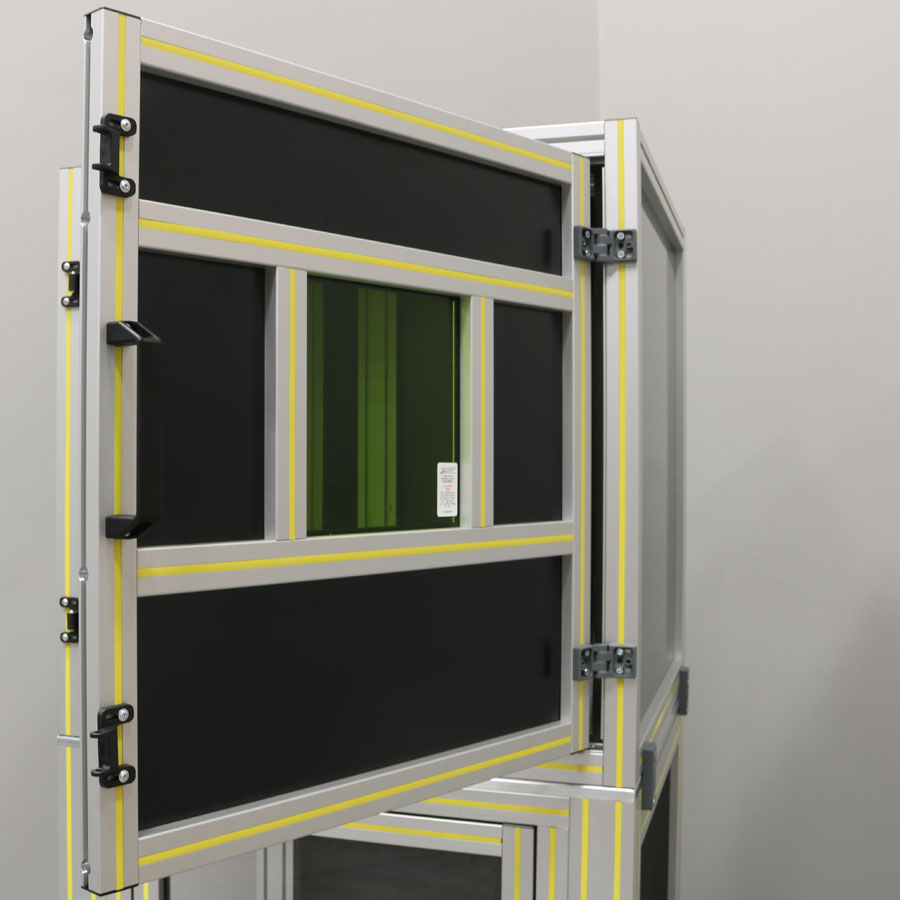

Laser Enclosure With Integrated Cart 4

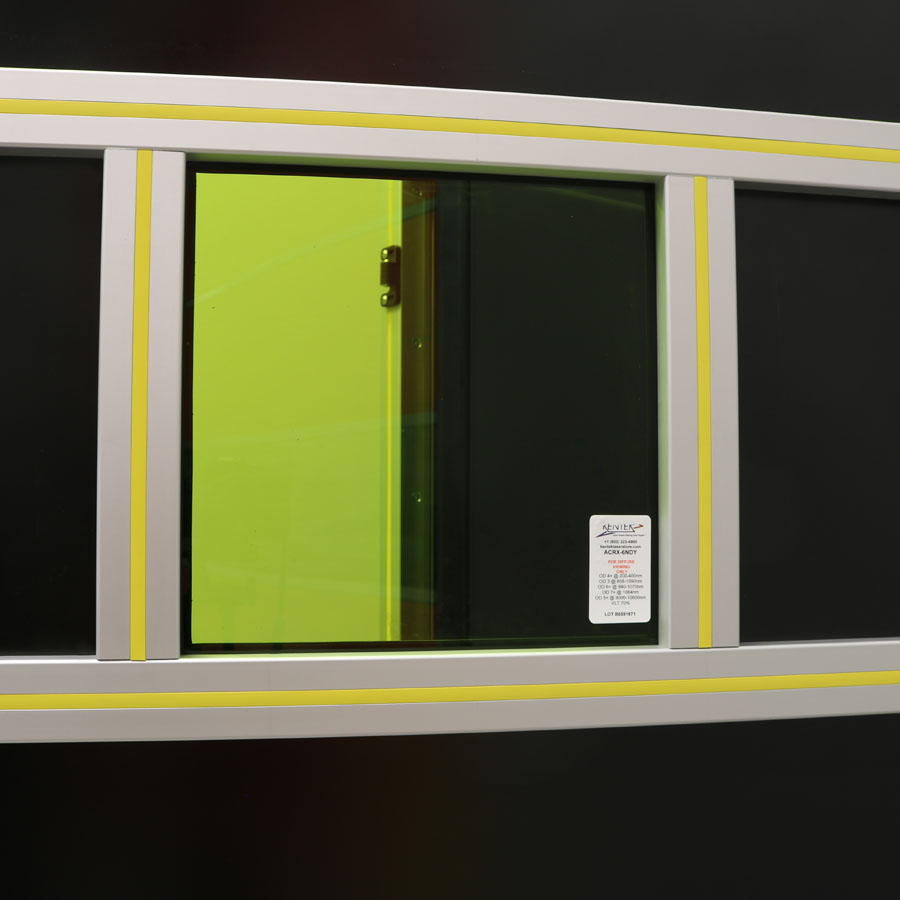

Laser Enclosure With Integrated Cart 5

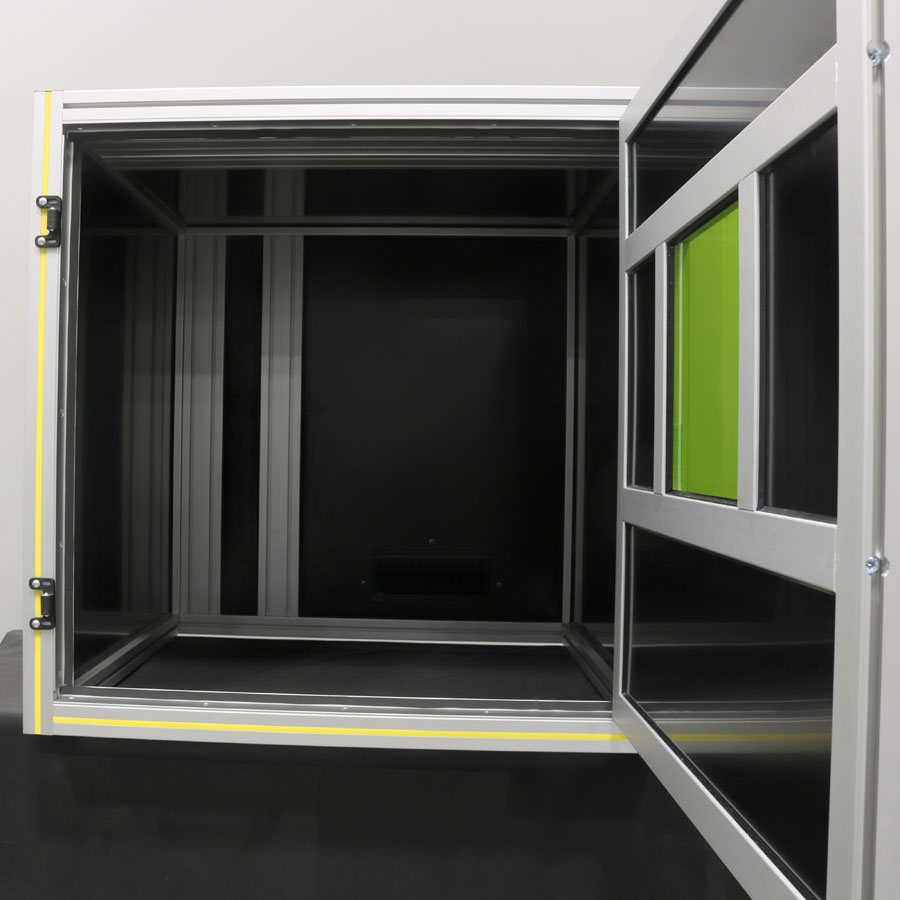

Laser Enclosure With Integrated Cart 7

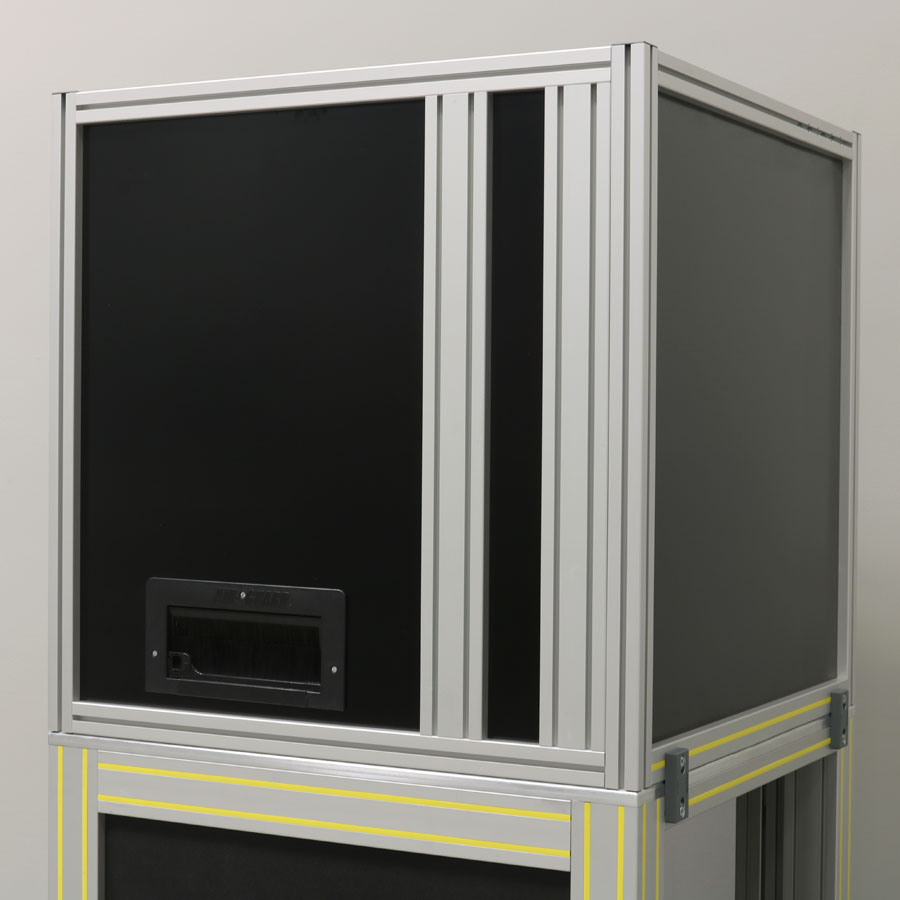

Laser Enclosure With Integrated Cart 9

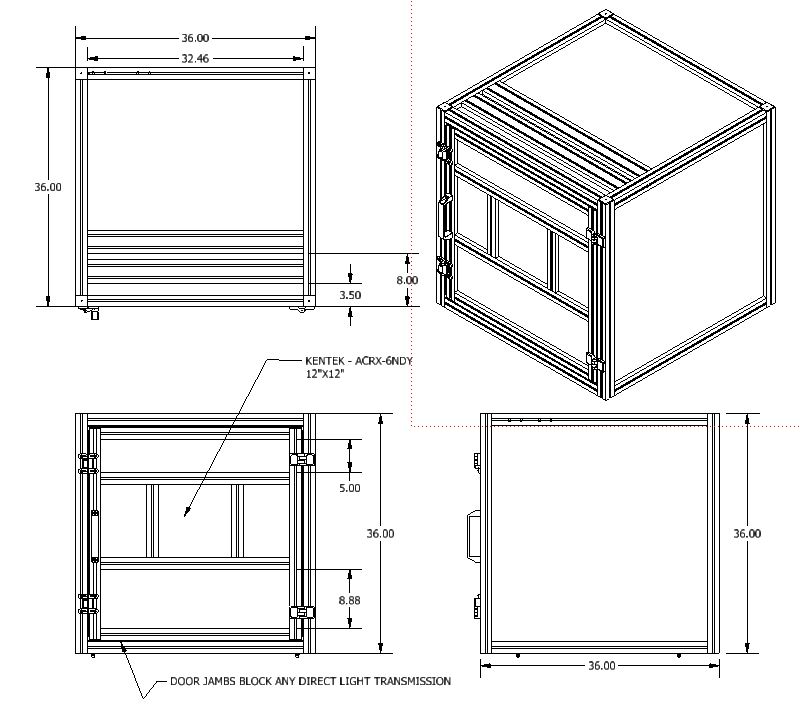

Laser Enclosure Dimensions
