Barrier Guard With Large Sliding Doors Without Top Or Bottom Rails

Enclosure For Waterjet
Click here for 3D file
Click here to request a quote or more details

Application Details

  • Completely customizable for your application!
  • Machine Guard With Large Cantilevered Sliding Doors For Fork Lift Access. Sliding Doors Have No Upper Or Lower Rails
  • Curtain Enclosure For Waterjet
  • Curtains Contain Waterjet Spray & Mess Top view
  • Project # MH052212-1
  • Clear Curtains Allow For Waterjet Viewing During Operation
  • Ball bearing slides
  • Door can be made to virtually any size & can be used with or without the surrounding enclosure.
  • The doors slide on linear grade ball bearings for smooth operation & long life even is hostile environments.
  • The sliding doors don’t have rails on the top or bottom of the door opening leaving the entrance clear for forklifts.
  • Hardened 12mm Rail On Door At Top & Bottom

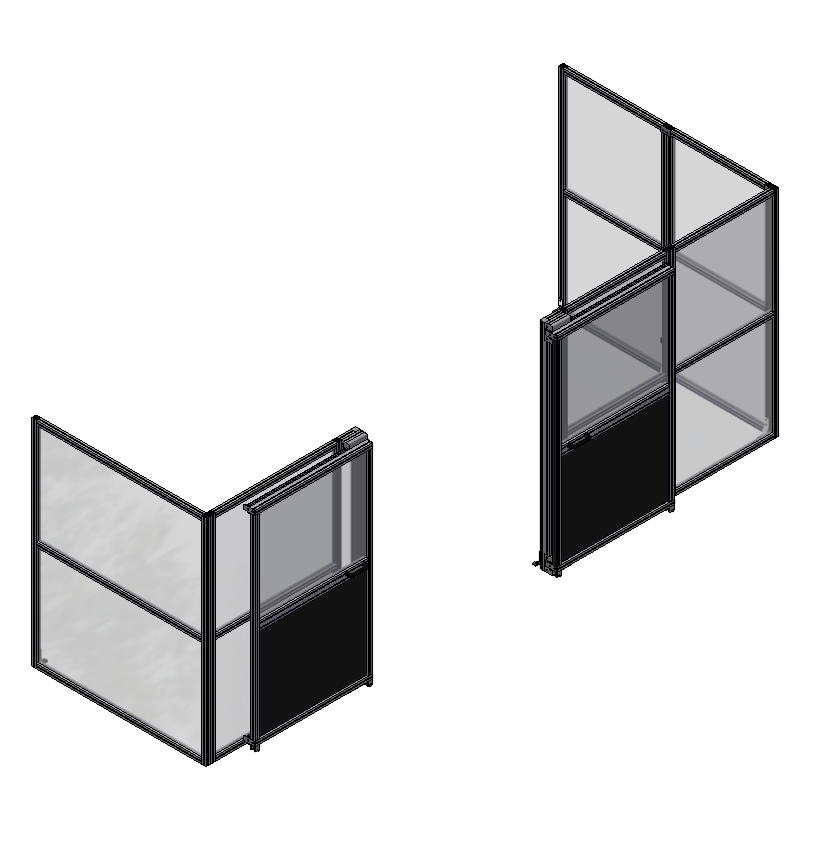

LARGE CANTILEVERED SLIDING DOORS ON MACHINE ENCLOSURE 1

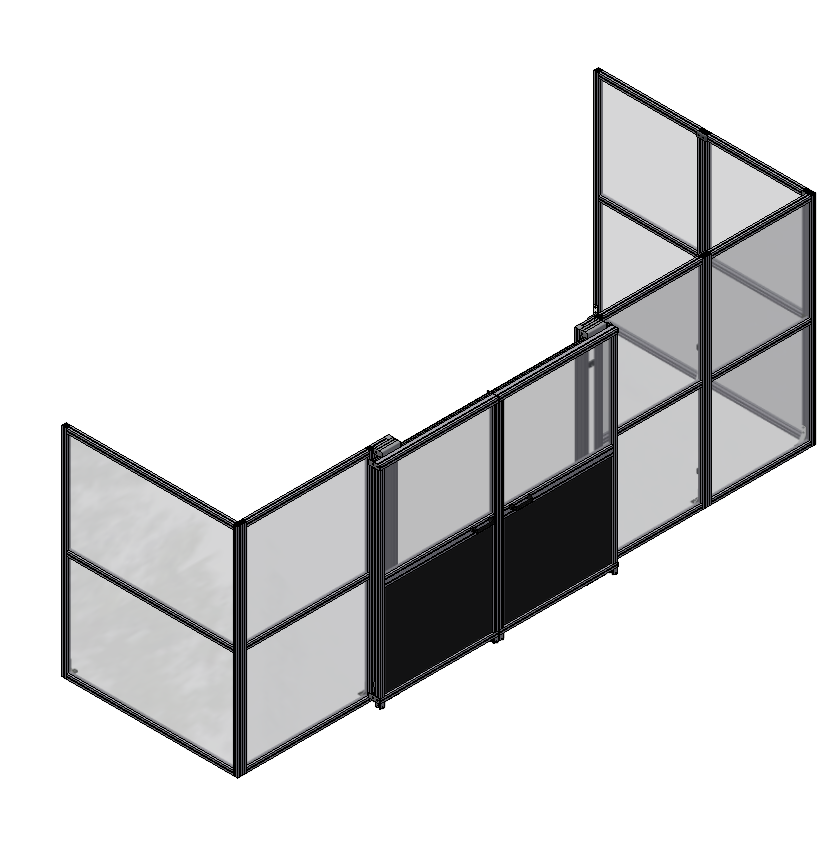

LARGE CANTILEVERED SLIDING DOORS ON MACHINE ENCLOSURE 2

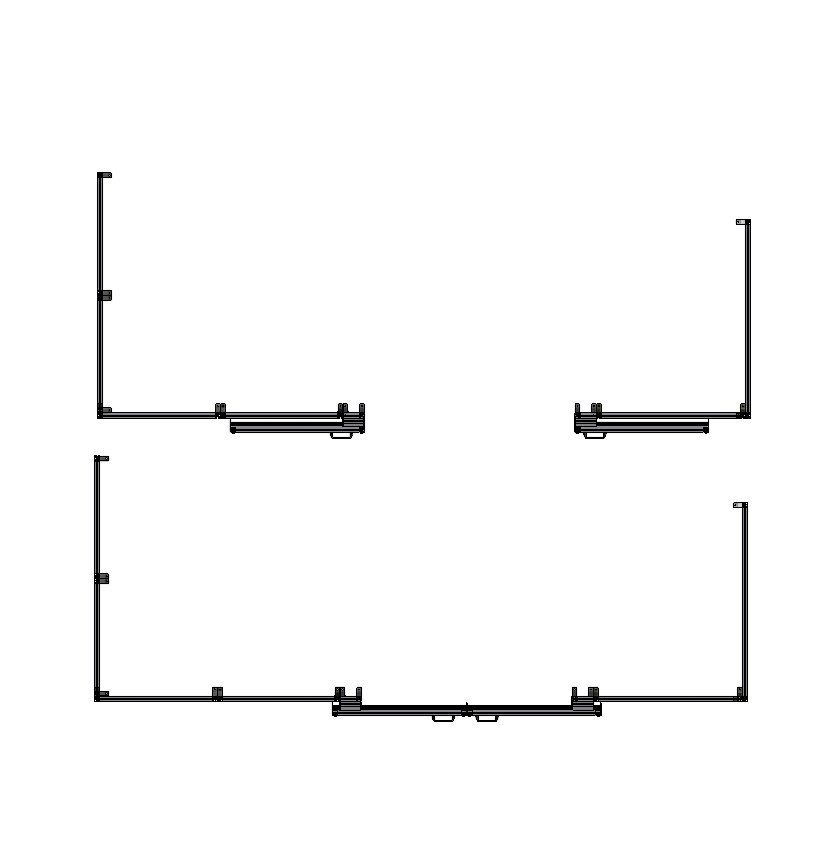

LARGE CANTILEVERED SLIDING DOORS ON MACHINE ENCLOSURE 3

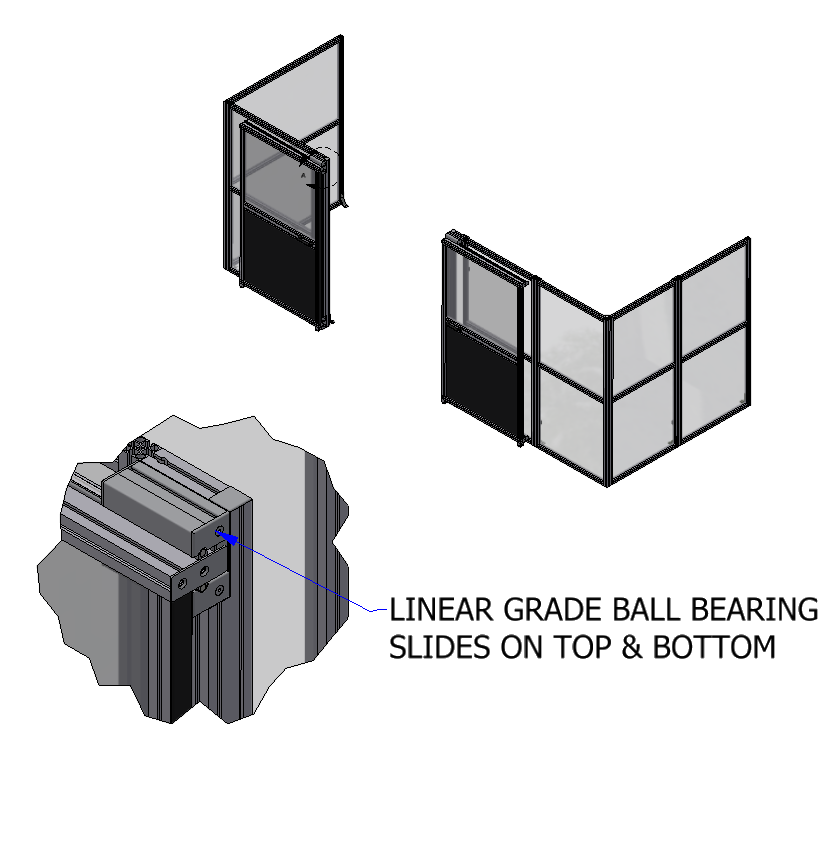

LARGE CANTILEVERED SLIDING DOORS ON MACHINE ENCLOSURE 4

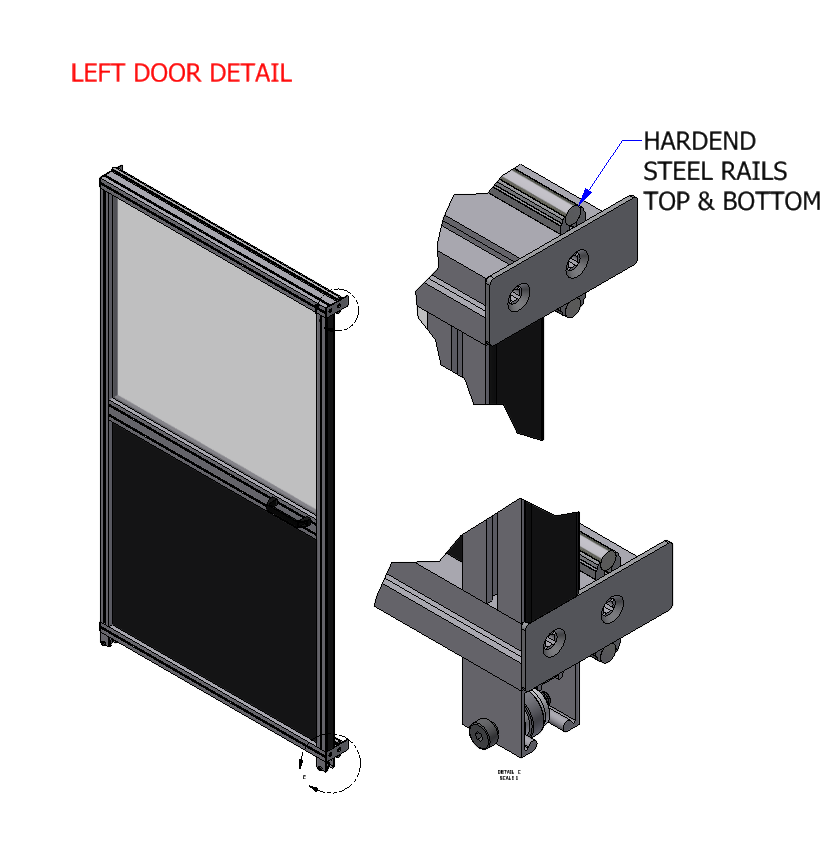

LARGE CANTILEVERED SLIDING DOORS ON MACHINE ENCLOSURE 5
