1/4″ Aluminum Jig Plate

This is a custom product - CLICK HERE to get a quote!
PART No 21.9525/2
PART No: 21.9525/2 each
  • Particularly useful when surface must be very flat. 1/4″ jig plate is flat within .015″ over 8 feet
  • Optical breadboards
  • Flat work sufurfaces
PART No: 21.9525/2 Category:

Technical Data / Items Supplied

  • Cast Aluminum Jig Plate 1/4″ thick
  • Precision Machined Surface
  • Order cut to size +/- 1/16″
  • For cut charge use Part # 25.1098
  • CNC machining available
  • (e-mail prints to sales@minitecframing.com
  • Click here for spec sheet
  • Max. Size – 4′ x 8′
  • Weight – 3.525 lbs/sqft

Applications

Assembly Info

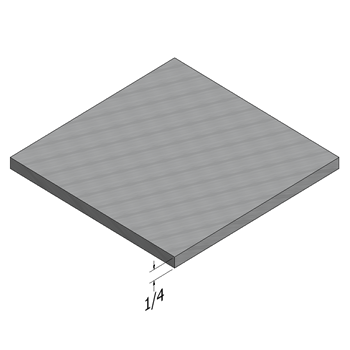

21.9525_2_AL-JIG-PLATE_MP

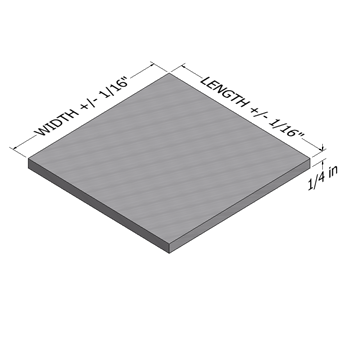

21.9525_2_AL-JIG-PLATE-_L

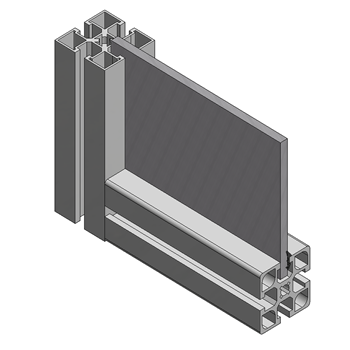

21.9525_2_AL-JIG-PLATE_M

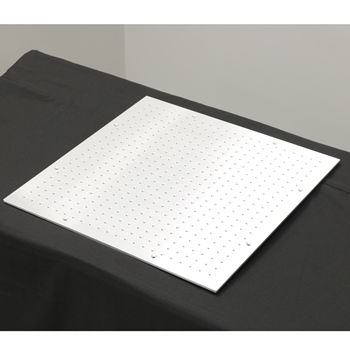

21.9525_2-.25-AL-JIG-PLATE-R

Downloads

Have a Question About This Product?

We’d love to hear from you!

Get in Touch

Add-On Products

Products that pair well with this item

22.0991_INSERT_SEAL_6.5_MP

Insert Seal 6.5

Part No 22.0991
21.9525_AL.25_MILL_L

1/4″Aluminum Sheet 3003

Part No 21.9525

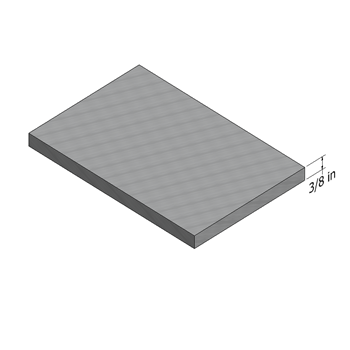

21.9527_AL_.375_L
