1″ Aluminum Jig Plate

PART N^o 21.9531/2

PART N^o: 21.9531/2 each

Particularly useful when surface must be very flat. 1″ jig plate is flat within .005″ over 8 feet
Optical breadboards
Flat work sufurfaces

PART No: 21.9531/2 Category: Panels & Table Tops

Technical Data / Items Supplied

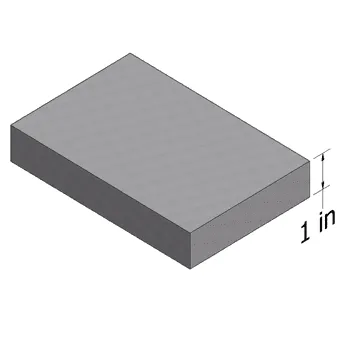

Cast Aluminum Jig Plate 1″ thick
Precision Machined Surface
Order cut to size +/- 1/16″
For cut charge use Part # 25.1098
CNC machining available
(e-mail prints to sales@minitecframing.com
Click here for spec sheet
Max. Size – 4′ x 8′
Weight – 14.52 lbs/sqft

Applications

Assembly Info

Too thick to fit in t-slots
Bolt to t-slots using M8x35 C’ Sunk screws & M8 Square Nuts With Position Fixing
