Angle 30 GD-Z

PART No 21.0905
$7.48 each
PART No: 21.0905$7.48 each
  • Right angle connection for 30 series profiles
  • Subsequent connection to profiles into existing frames
PART No: 21.0905 Category:

Technical Data / Items Supplied

  • 1 Cast aluminum gusset, powder coated gray
  • 2 M6x14 SHCS
  • 2 M6 Nuts With Pos. Fxg.
  • 2 M6 Washers
  • Angle cover 22.0989/1 sold separately
  • Weight – .065 kg

Applications

Assembly Info

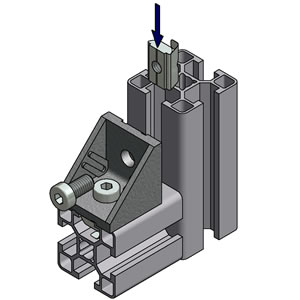

  • Insert included M6 Position Fixing Nut thru the side or slide it in from the end
  • Tighten included M6 screw thru angle & into nut
  • Recommended locking torque 8 Nm
21.0905_Angle_30_GD-Z_MP

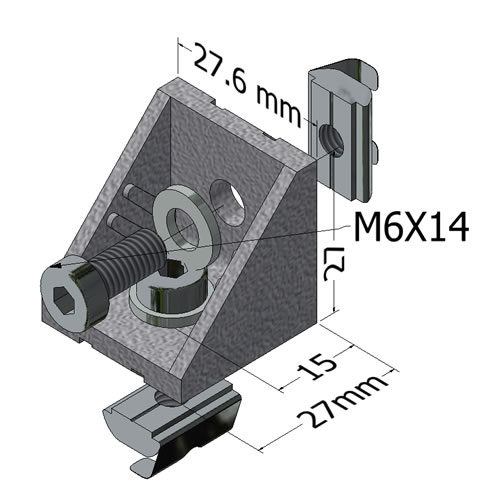

21.0905_Angle_30_GD-Z_L

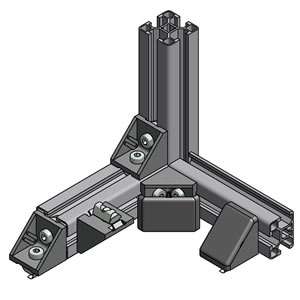

21.0905_Angle_30_GD-Z_M
21.0905_Angle_30_GD-Z_R

Downloads

3D Step
Inventor
