Brackets for Energy Chain R

PART No 33.0411
$18.70 each
PART No: 33.0411$18.70 each
PART No: 33.0411 Category:

Technical Data / Items Supplied

  • 1 Male & 1 Female mounting bracket,
  • black plastic
  • Qty 4 M6x16 socket head cap screws
  • Qty 4 M6 square nuts
  • Weight – .058 kg

Applications

Assembly Info

  • Snaps into energy chain by hand
  • Drill & tap M6 x 1 to fasten to lower guide and support Profile 45×45 R 20.1046
  • Mount to custom adaptor plate 1/2″ thick with two tapped m6 holes.

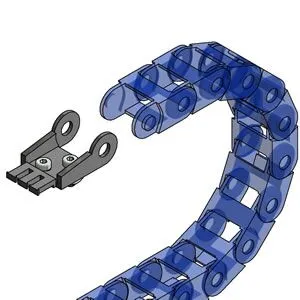

33.0411_Mounting_Brackets_For_Energy_Chain_MP
33.0411_Mounting_Brackets_For_Energy_Chain_L
33.0411_Mounting_Brackets_For_Energy_Chain_M
33.0411_Mounting_Brackets_For_Energy_Chain_R

Downloads

3D Step
Solidworks
Inventor
